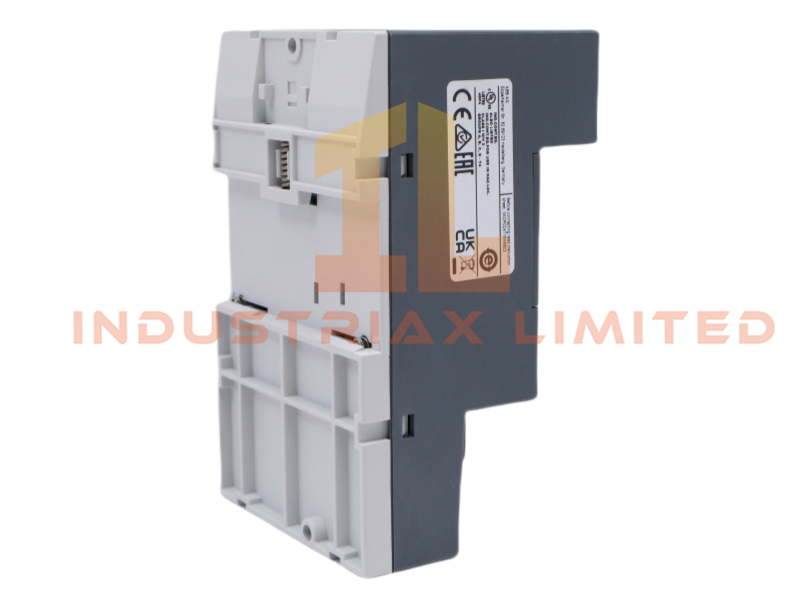

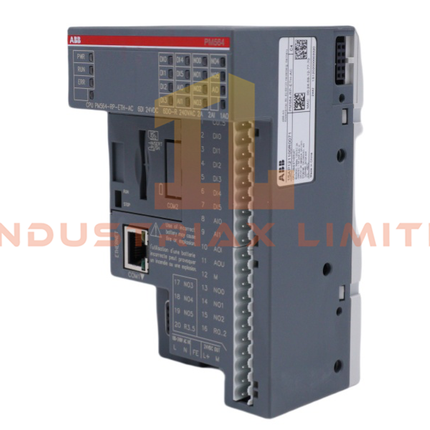

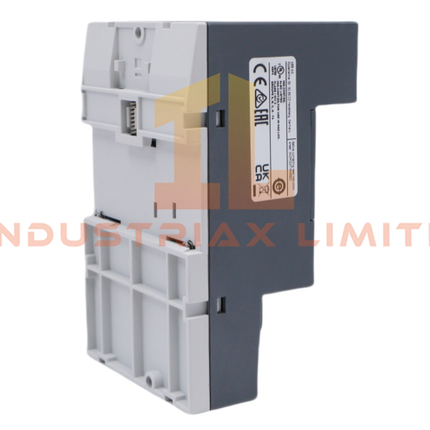

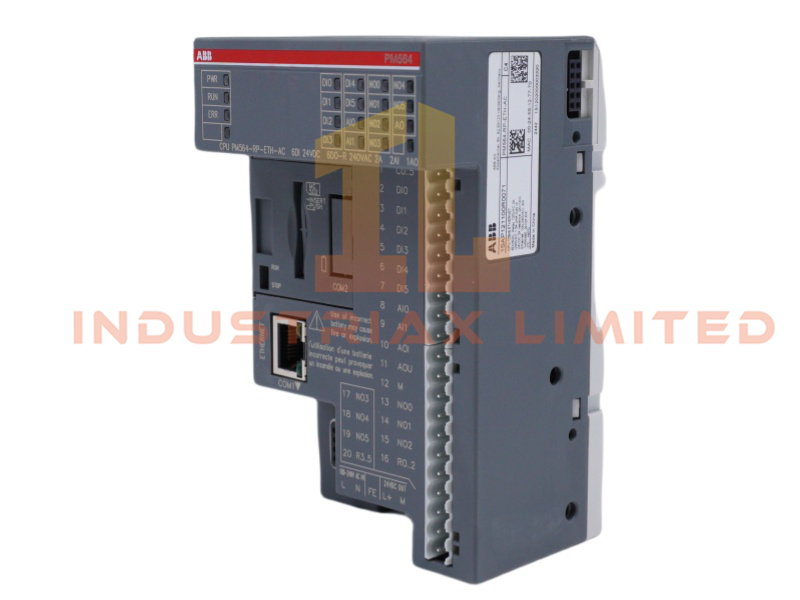

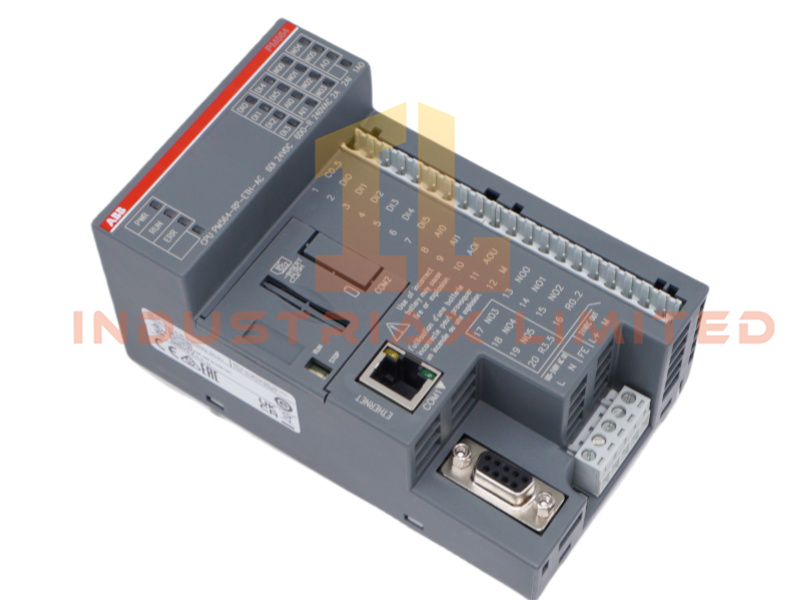

The ABB PM564-RP-ETH-AC 1SAP121100R0071 Programmable Logic Controller delivers reliable automation and scalable performance for industrial environments. Engineers integrate this compact AC500-eCo module into Distributed Control Systems to achieve efficient processing, versatile I/O handling, and seamless communication across automation networks.
Technical Specifications
| Parameter |
Value |
|
Model Number
|
PM564-RP-ETH-AC 1SAP121100R0071 |
| Manufacturer |
ABB |
|
Module Type
|
Programmable Logic Controller
|
| Dimensions |
8.5 × 7.5 × 7.5 cm
|
| Weight |
0.16 kg
|
|
HS Code
|
8537101190 |
|
System Compatibility
|
DCS, AC500-eCo Series
|
|
Digital Inputs
|
6 |
|
Digital Outputs
|
6 |
|
Analog Inputs
|
2 |
|
Analog Outputs
|
1 |
|
Memory Capacity
|
128 kB
|
|
Supply Voltage
|
115–230 V AC
|
|
Operating Voltage
|
24 V DC
|
|
Power Consumption
|
4 W
|
| Interfaces |
Ethernet router, SD card slot, RS485
|
|
Programming Environment
|
CoDeSys |
| Origin |
Sweden |
| Condition |
Brand New
|
| Status |
Active |
Functional Highlights
The ABB PM564-RP-ETH-AC 1SAP121100R0071 integrates 6 digital inputs, 6 digital outputs, 2 analog inputs, and 1 analog output, offering versatile control for automation tasks. Its 128kB memory capacity supports complex applications, while Ethernet and RS485 interfaces enable seamless communication. Engineers benefit from CoDeSys programming compatibility, ensuring streamlined installation and flexible customization.
Applications and Compatibility
The PM564-RP-ETH-AC 1SAP121100R0071 PLC integrates seamlessly into ABB AC500-eCo and Distributed Control Systems. Engineers deploy it in machine control, process automation, and smart manufacturing environments where scalable and energy-efficient solutions are essential. Compatibility with S500 and S500-eCo I/O modules expands its versatility, making it suitable for Industry 4.0 implementations.
Benefits
-
Compact dimensions (8.5×7.5×7.5cm) simplify installation in control cabinets.
-
Lightweight design (0.16kg) ensures easy handling and mounting.
-
Flexible I/O with 6 DI, 6 DO, 2 AI, and 1 AO supports diverse automation tasks.
-
CoDeSys programming environment streamlines configuration and maintenance.
-
Ethernet and RS485 interfaces enhance communication and remote monitoring.
-
Low 4W power consumption improves energy efficiency and reduces operating costs.
