Description
Overview

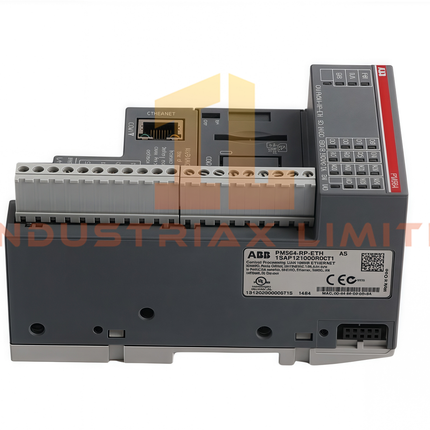

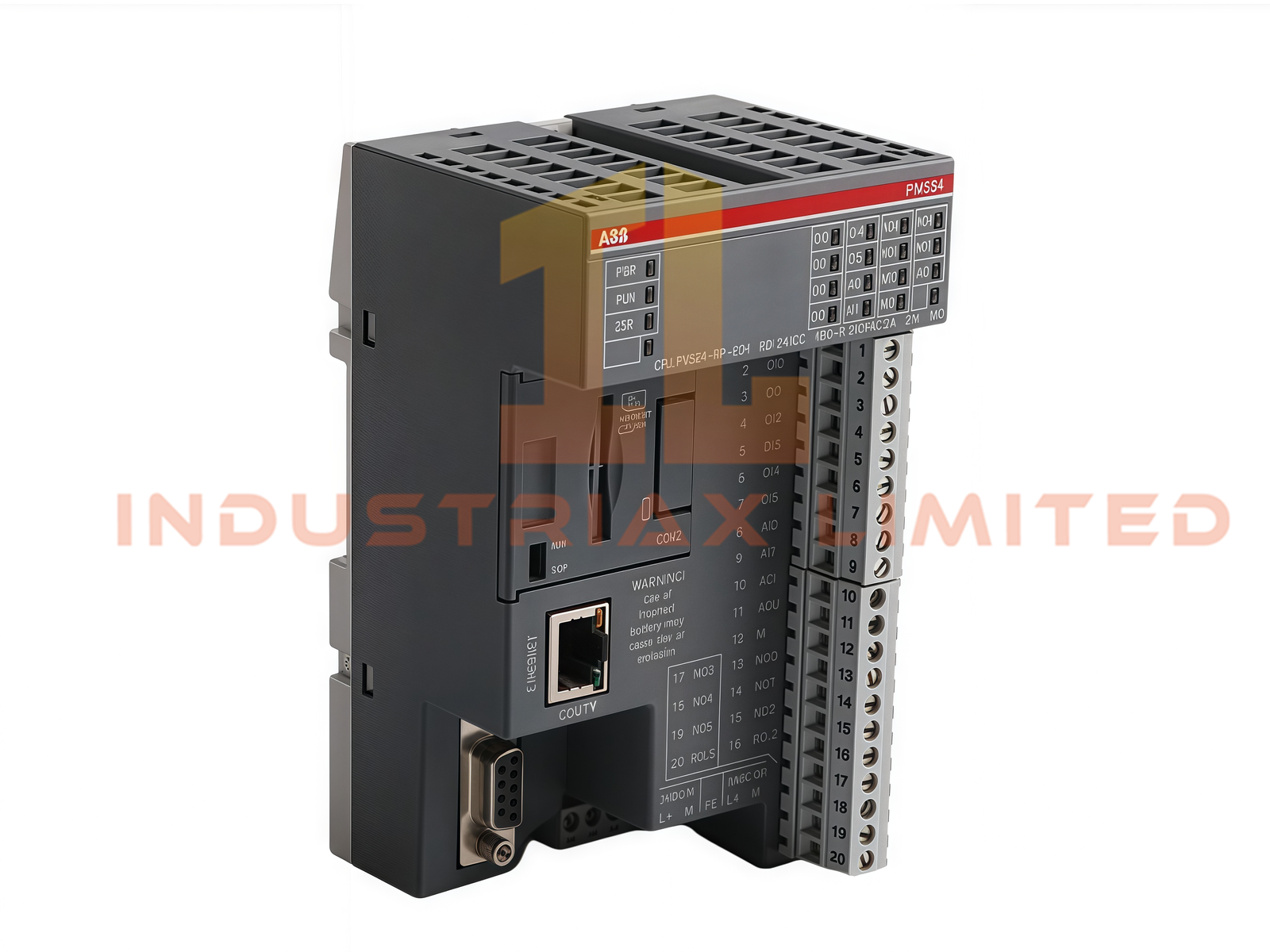

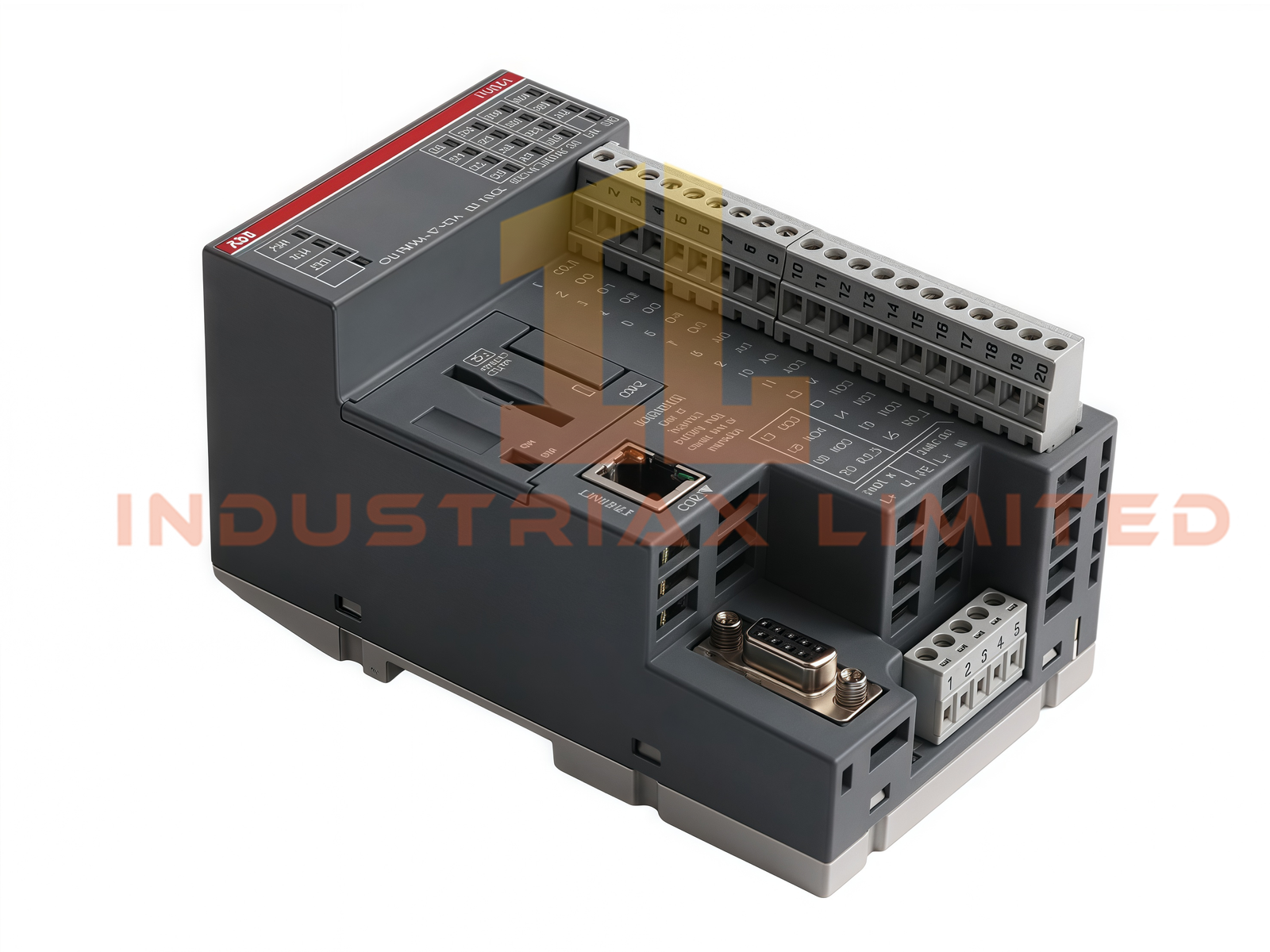

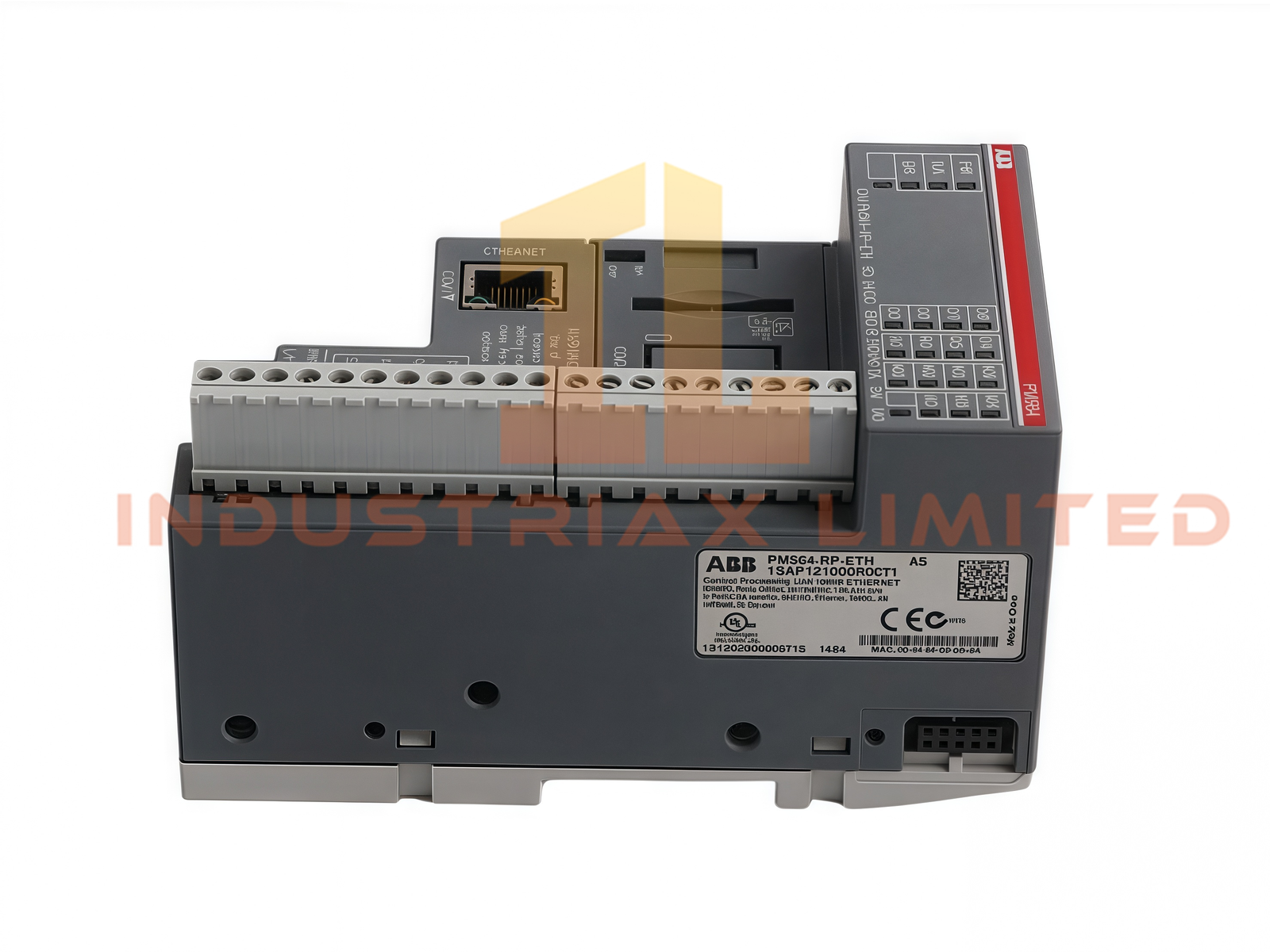

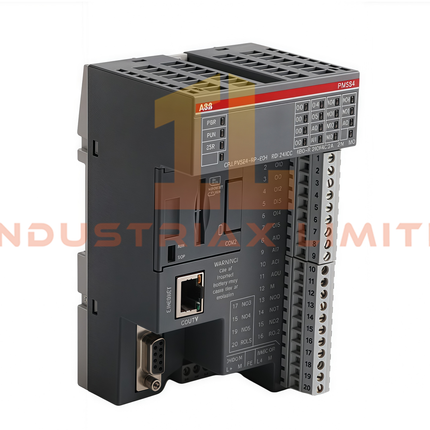

The ABB PM564-RP-ETH 1SAP121000R0071 Processor Module combines powerful computing with flexible I/O for industrial automation. Engineers integrate this compact AC500 PLC unit into Distributed Control Systems to achieve reliable performance, efficient communication, and scalable control in demanding environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
PM564-RP-ETH 1SAP121000R0071 |
| Manufacturer |
ABB |
| Module Type |
Processor Module |
| Dimensions |
13.5 × 8.2 × 7.4 cm |
| Weight |
0.34 kg |
| HS Code |
8537101190 |
| System Compatibility |
DCS, AC500 PLC Series |
| Digital Inputs |
6 |
| Relay Outputs |
6 |
| Analog Inputs |
2 |
| Analog Outputs |
1 |
| Memory Capacity |
128 kB |
| Operating Voltage |
24 VDC |
| Input Voltage Range |
120–240 VAC |
| Power Consumption |
4 W |
| Interfaces |
Ethernet, RS485, 2 expansion slots |
| Origin |
Sweden |
| Condition |
Brand New |
| Status |
Active |
Functional Highlights
The ABB PM564-RP-ETH 1SAP121000R0071 supports 6 digital inputs, 6 relay outputs, 2 analog inputs, and 1 analog output, enabling versatile control. Its 128kB memory capacity ensures smooth execution of complex automation tasks. Ethernet connectivity and RS485 ports provide seamless integration into industrial networks, while low power consumption enhances energy efficiency.
Applications and Compatibility
The PM564-RP-ETH 1SAP121000R0071 Processor Module integrates seamlessly into ABB AC500 PLC systems and Distributed Control Systems. Engineers deploy it in machine control, process automation, and smart manufacturing environments where scalable and future-proof solutions are essential. Its compact design simplifies installation in control panels, while robust construction ensures durability in harsh conditions.
Benefits
-
Compact dimensions (13.5×8.2×7.4cm) save space in control cabinets.
-
Lightweight design (0.34kg) ensures easy handling and installation.
-
Flexible I/O with 6 DI, 6 relay outputs, 2 AI, and 1 AO.
-
Ethernet and RS485 interfaces enhance communication and remote monitoring.
-
Low 4W power consumption improves energy efficiency.
-
Scalable architecture supports Industry 4.0 automation concepts.
