Description
Product Overview

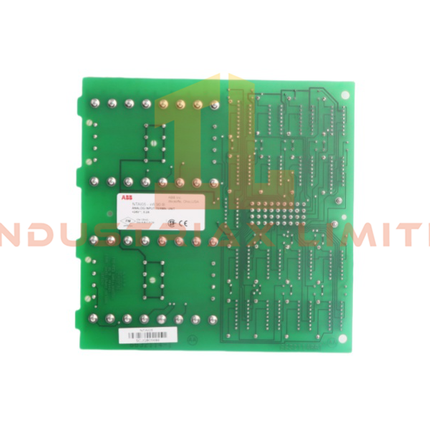

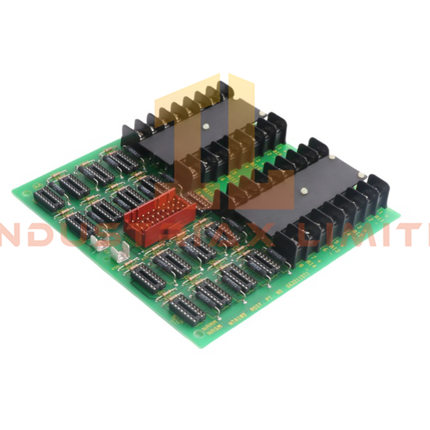

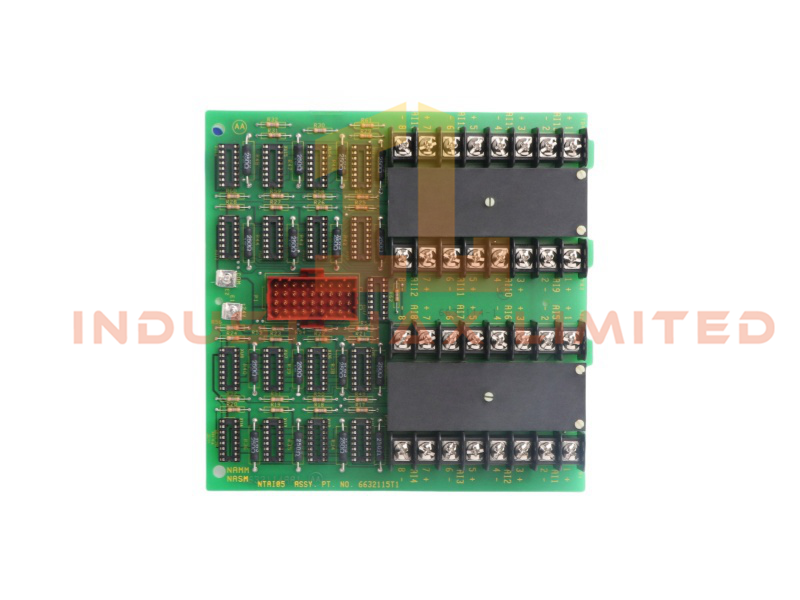

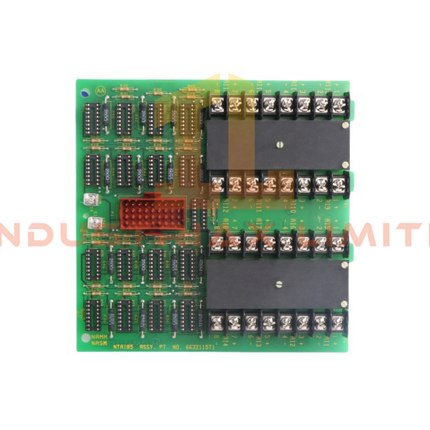

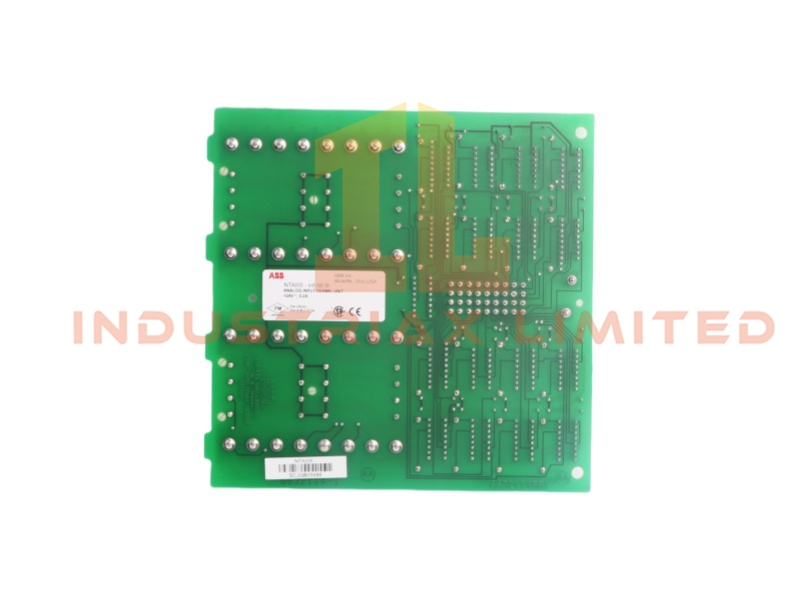

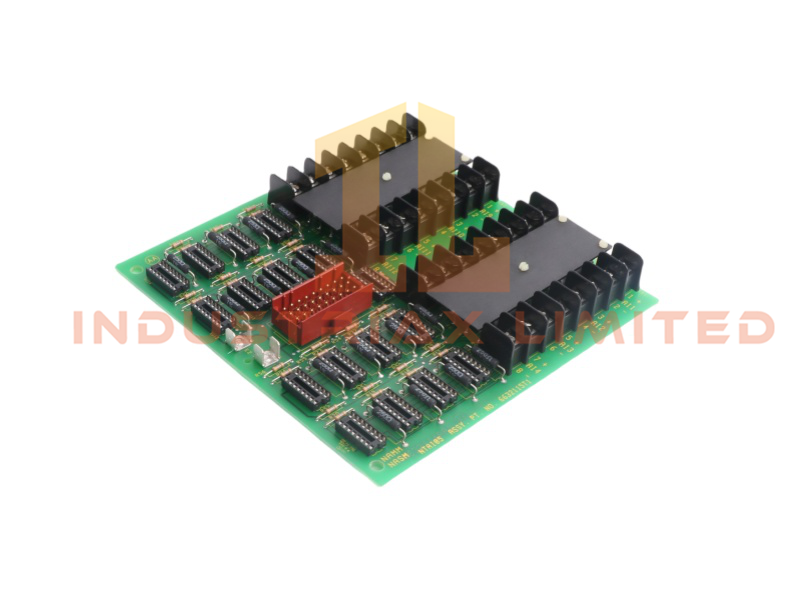

The ABB NTAI05 termination unit is designed for signal interface integration within ABB Bailey Net 90 and Infi 90 distributed control systems. It functions as a dedicated analog input termination interface, supporting stable signal conditioning between field wiring and control system modules.
Built for industrial control environments, this unit focuses on maintaining signal integrity and reducing transmission distortion in analog input channels. It is commonly deployed in process automation architectures requiring consistent data acquisition and reliable I/O interfacing.
Technical Specifications
-
Model: NTAI05
-
Manufacturer: ABB
-
System Compatibility: Bailey Net 90 / Infi 90 DCS
-
Device Type: Analog input termination interface unit
-
Input Signal: 24 VDC, 20 mA (typical analog interface range)
-
Communication Path: System-level Ethernet-based routing interface (control network dependent)
-
Operating Environment: Industrial-grade extended temperature range (typical -20°C to +70°C)
-
Dimensions: 18 × 17.6 × 2 cm
-
Weight: 0.4 kg
-
Origin: Sweden
-
Standards Compliance: IEC 61131-2, EN 61000-6-2, EN 61000-6-3
-
Mounting: Rack/termination assembly compatible with Bailey system architecture
Key Features
-
Designed for ABB Bailey Net 90 / Infi 90 control platforms
-
Provides stable analog signal termination and conditioning
-
Reduces electromagnetic interference impact on signal lines
-
Supports long-term operational stability in harsh industrial environments
-
Compact board-level construction for control cabinet integration
-
Complies with international EMC and industrial automation safety standards
-
Engineered for consistent performance in continuous process systems
Applications
-
Power generation control systems
-
Oil and gas process automation
-
Chemical processing plants
-
Industrial DCS retrofit and maintenance systems
-
Turbine and compressor monitoring architectures
-
Factory process instrumentation signal interfacing
FAQs
Q1: What system is the ABB NTAI05 compatible with?
It is designed for ABB Bailey Net 90 and Infi 90 distributed control systems.
Q2: What is the main function of this termination unit?
It provides analog signal termination and interface conditioning between field wiring and control system modules.
Q3: Is the unit suitable for harsh environments?
Yes, it is engineered for industrial environments with wide operating temperature tolerance and EMC protection compliance.
