Description
Overview

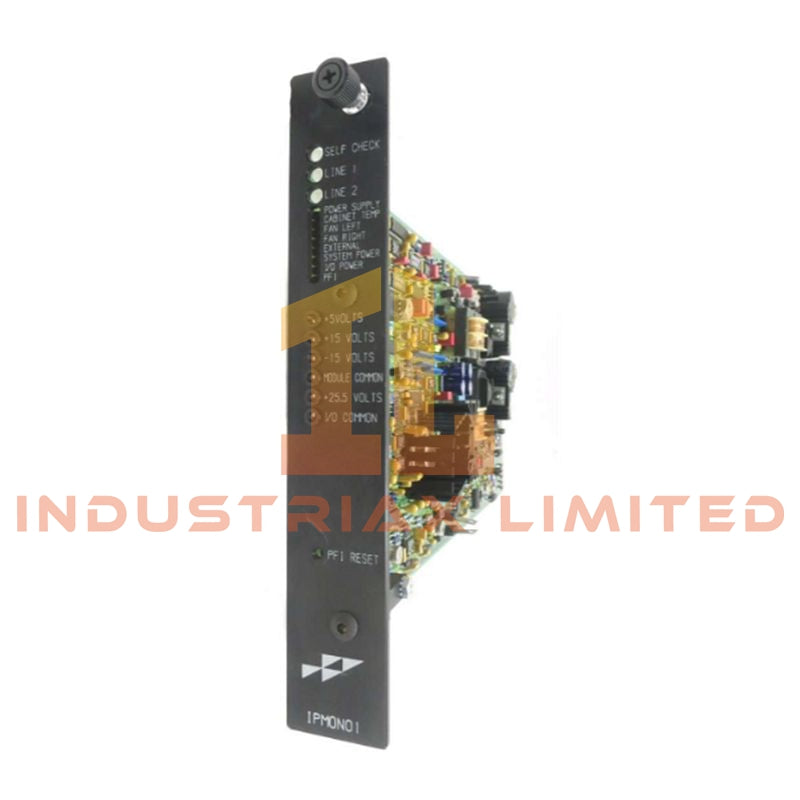

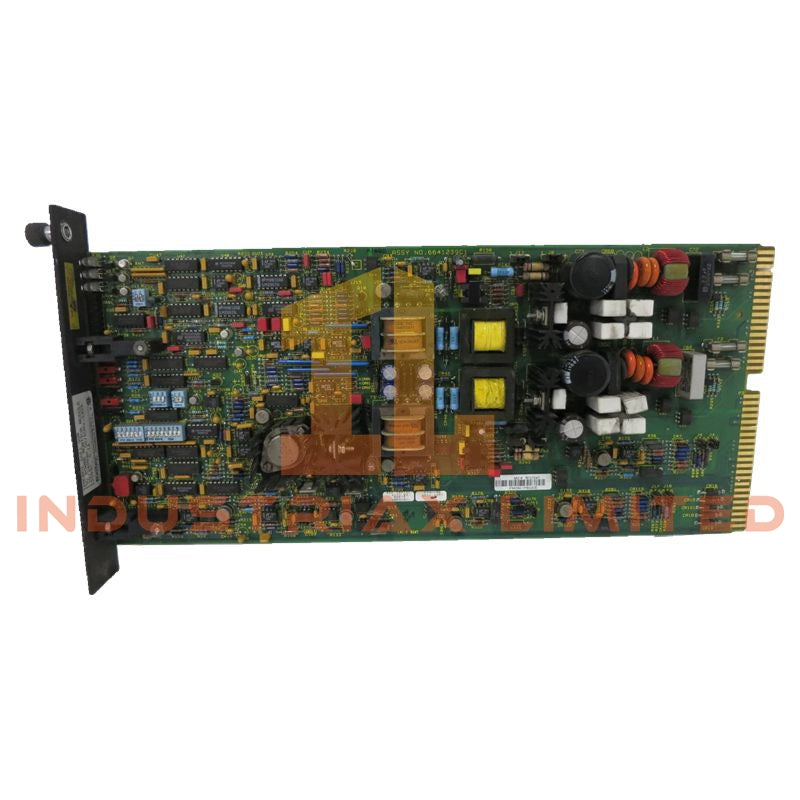

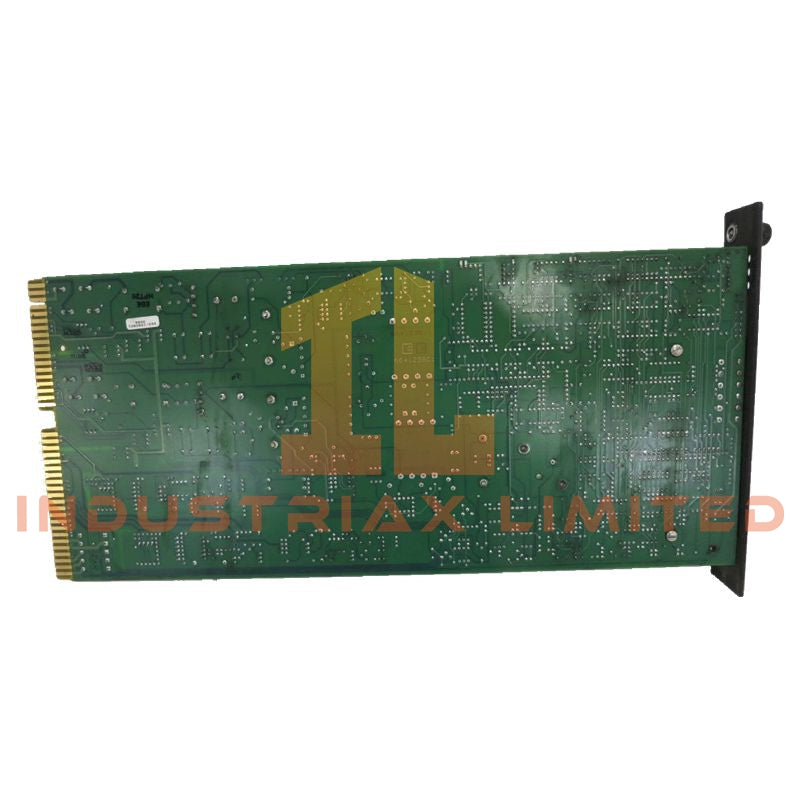

The ABB IPMON01 MPSII Power Monitor Module is designed to supervise system power conditions and monitor operational status signals within ABB control and power distribution architectures. The module continuously checks incoming supply voltage, fan operation, and fault status conditions to improve system reliability and support preventive maintenance strategies.
Integrated alarm and status outputs allow rapid fault notification to host controllers or supervisory systems during abnormal operating conditions. The module is commonly installed in ABB INFI-90 and Harmony environments where uninterrupted power integrity is essential for stable control system operation.
Its compact form factor and industrial-grade electrical design make the module suitable for continuous monitoring applications in power generation, process automation, and high-availability industrial systems.
Key Features
-
Continuous monitoring of AC and DC system power inputs
-
Supports 120 VAC, 240 VAC, and 125 VDC applications
-
Integrated fan-speed supervision inputs
-
Dedicated power-fail interrupt signaling
-
Open-collector alarm and status outputs
-
Opto-isolated bus alarm interface
-
Real-time fault detection and status reporting
-
Designed for critical process control environments
-
Compatible with ABB MPSII power monitoring systems
Technical Specifications
| Specification |
Details |
| Model |
IPMON01 |
| Product Type |
MPSII Power Monitor Module |
| Manufacturer |
ABB |
| Input Voltage |
120/240 VAC, 125 VDC |
| Power Consumption |
24 VA |
| Input Current |
0.3 A at 120 VAC |
| Input Current |
0.2 A at 240 VAC / 125 VDC |
| Logic Status Inputs |
2 Inputs |
| Logic 0 Threshold |
0.8 VDC at 10 mA Sink Current |
| Logic 1 Threshold |
3.1 VDC at 80 µA Source Current |
| Fan Monitoring Inputs |
2 Inputs for Fan Speed Detection |
| Power Fail Interrupt |
Open Collector Output |
| PFI Logic 1 Output |
4.75 to 5.25 VDC |
| Status Output Type |
Non-Isolated Open Collector |
| Bus Alarm Output |
Opto-Isolated Open Collector Driven |
| Bus Alarm Voltage |
24 VDC |
| Bus Alarm Logic Range |
5 to 30 VDC |
| Mounting Style |
Rack Mounted |
| Dimensions |
40.13 × 3.56 × 21.84 cm |
| Weight |
0.7 kg |
Functional Description
The IPMON01 module supervises power supply integrity and communicates system health information through dedicated status and alarm outputs. The module can detect low-voltage conditions, cooling fan abnormalities, and general fault states that may affect system stability.
Power fail interrupt functionality enables connected controllers to respond immediately during supply interruptions or abnormal voltage fluctuations. The integrated monitoring logic improves operational reliability by supporting early fault identification before critical failures occur.
Typical Applications
Common industrial applications include:
-
ABB INFI-90 power system supervision
-
Harmony rack voltage monitoring
-
Power supply fault diagnostics
-
Fan failure monitoring in control cabinets
-
Distributed control system protection
-
Process plant power integrity monitoring
-
Industrial automation alarm systems
FAQ
What is the main function of the IPMON01 module?
The IPMON01 monitors power input conditions, fan status signals, and system fault outputs to help maintain stable operation of ABB control systems.
Which voltage inputs are supported?
The module supports 120 VAC, 240 VAC, and 125 VDC operating environments.
Does the module provide alarm signaling?
Yes. The unit includes power fail interrupt outputs, status outputs, and opto-isolated bus alarm signaling.
Can the IPMON01 monitor cooling fan operation?
Yes. The module includes dedicated fan status inputs used for low-speed or failed-fan detection within system cabinets.
