Description
Overview

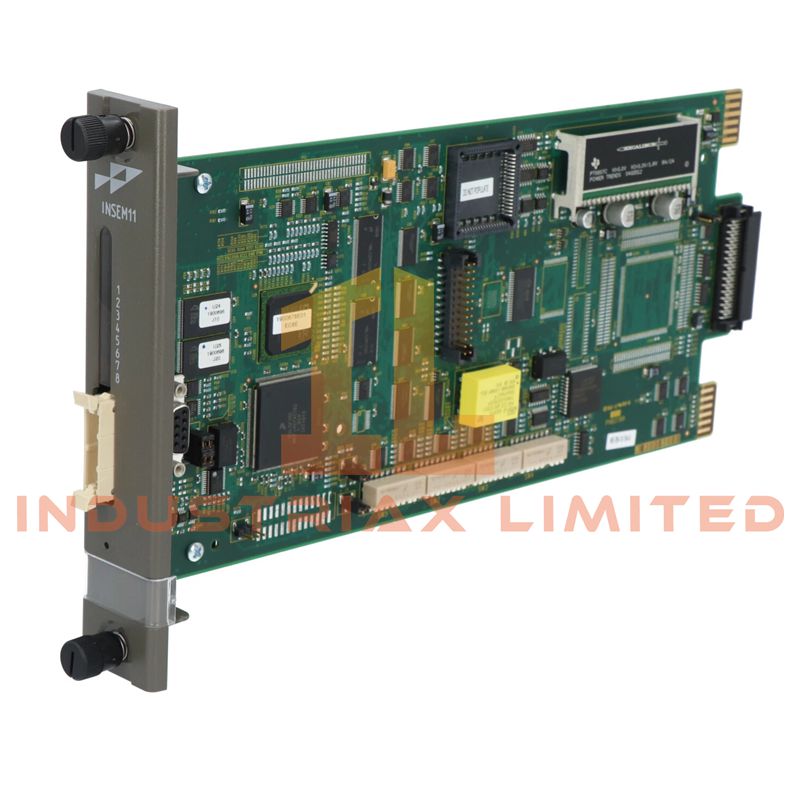

The INSEM11 Sequence of Events Master Module is designed for high-speed event acquisition and chronological event management within ABB INFI 90 and Harmony distributed control architectures. The module supervises and consolidates event information received from remote SOE slave interfaces, assigns precise timestamps, and transfers event records to supervisory controllers, operator stations, or historical databases.
This module is commonly deployed in mission-critical environments where accurate disturbance analysis and operational traceability are required. Typical installations include turbine protection systems, electrical substations, emergency shutdown systems, and continuous process automation facilities.
The compact hardware design supports reliable long-term operation in industrial control cabinets while providing extensive internal diagnostics and communication integrity monitoring.
Key Features
-
High-speed sequence-of-events acquisition and processing
-
Supports chronological event reconstruction during plant disturbances
-
Event buffer capacity up to 4096 records
-
Millisecond and sub-millisecond timestamp capability depending on system architecture
-
Compatible with ABB INFI 90 and Harmony systems
-
Integrated diagnostic monitoring with front-panel status indicators
-
Stable communication through INFI-Net and Harmony bus interfaces
-
Compact low-profile industrial module construction
-
Designed for continuous operation in critical automation environments
Technical Specifications
| Specification |
Details |
| Model |
INSEM11 |
| Product Type |
Sequence of Events Master Module |
| System Compatibility |
ABB INFI 90 / Harmony Rack Systems |
| Main Function |
Event Collection, Timestamping, Event Storage |
| Event Capacity |
Up to 4096 SOE Records |
| Timestamp Resolution |
Millisecond to Sub-Millisecond |
| Communication Interface |
INFI-Net / Harmony Bus |
| Input Power |
24 VDC via System Backplane |
| Protection Rating |
IP20 |
| Diagnostic Functions |
Self-Diagnostics and Fault Detection |
| Status Indication |
LED Status Indicators |
| Operating Temperature |
-20°C to +60°C |
| Alternative Operating Range |
-10°C to +55°C |
| Storage Temperature |
-40°C to +70°C |
| Relative Humidity |
5% to 95% Non-Condensing |
| Mounting Method |
DIN Rail or Harmony Rack Slot |
| Dimensions |
5.1 × 17.8 × 2.5 cm |
| Weight |
0.2 kg |
Application Areas
The INSEM11 module is widely used in industrial applications where accurate sequence recording is essential for troubleshooting and operational analysis.
Typical installations include:
-
Power plant turbine trip monitoring
-
Generator and protection relay event recording
-
Electrical substation breaker sequencing
-
Distributed process alarm management
-
Safety instrumented systems (SIS)
-
Emergency shutdown sequence analysis
-
Industrial historian and disturbance recording systems
System Functionality
Within the ABB control architecture, the INSEM11 acts as the primary SOE coordinator. Distributed field events are gathered from remote interfaces and synchronized into a unified event sequence database. The module ensures accurate chronological reporting even during rapid fault conditions or simultaneous alarm activity.
This functionality assists engineering personnel in identifying root-cause conditions, validating protection system performance, and meeting operational compliance requirements for power and process industries.
FAQ
What is the primary purpose of the INSEM11 module?
The INSEM11 is used to capture and organize plant event data in chronological order for disturbance analysis, operational diagnostics, and system monitoring.
Which ABB systems support the INSEM11?
The module is compatible with ABB INFI 90 and Harmony-based control platforms.
Does the module support high-precision timestamps?
Yes. Depending on the connected system architecture, the module supports millisecond or sub-millisecond event timestamp resolution.
Can the INSEM11 operate in harsh industrial environments?
The module is designed for industrial automation systems and supports wide operating temperature and humidity ranges suitable for power and process applications.
