Product Description

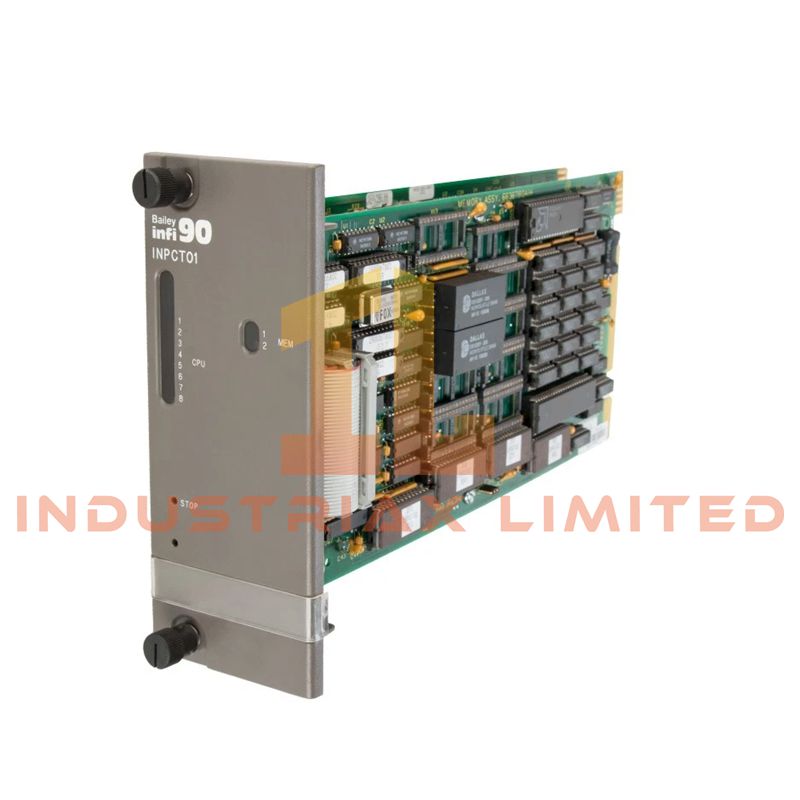

The ABB INPCT01 Plant Loop to Computer Transfer Module is designed as a dedicated communication interface within ABB INFI-90 / Symphony distributed control architectures. Its primary role is to establish a stable data bridge between the plant loop control network and external computer systems used for monitoring, analysis, and supervisory control.
Developed by ABB, the module is optimized for legacy DCS environments where deterministic communication, protocol conversion, and system reliability are critical for continuous plant operation.
The INPCT01 converts plant loop data into standard serial communication formats and supports integration with host systems such as SCADA platforms, data historians, and engineering workstations. It is commonly deployed in industrial facilities requiring robust connectivity between control-level networks and higher-level computing systems.
Technical Specifications
Communication Interface
-
Protocol support: RS-232 and RS-422 serial communication
-
Function: Plant Loop to host computer data transfer
-
Data handling: Real-time process values, alarms, and system status
-
Indicators: Transmit, Receive, and Fault status LEDs
-
Connector type: D-sub serial interface connectors
System Integration
-
Control system: ABB INFI-90 / Symphony platform
-
Role: Communication gateway between Plant Loop and external systems
-
Supported applications: SCADA, HMI, historians, engineering terminals
-
Data processing: Bidirectional communication with error-checking routines
Electrical Characteristics
-
Input power: Typically +5 VDC to +24 VDC (system dependent configuration)
-
Backplane dependency: Power sourced from INFI-90 rack architecture
-
Power consumption: Low-power embedded communication module design
Mechanical Design
-
Module type: Rack-mounted INFI-90 interface card
-
Dimensions: 17.8 cm × 7.6 cm × 33.0 cm
-
Weight: 0.8 kg
-
Installation: Standard ABB INFI-90 chassis slot
-
Cooling: Passive airflow within cabinet enclosure
Functional Overview
The INPCT01 serves as a protocol translation and communication gateway within distributed control systems. It ensures reliable data exchange between plant-level control loops and external computing environments by handling:
-
Serial protocol conversion between plant loop and host systems
-
Continuous data streaming for real-time monitoring
-
Supervisory control communication pathways
-
Diagnostic feedback for communication integrity
-
Stable operation in legacy DCS infrastructures
Application Scenarios
-
SCADA system integration in legacy ABB control environments
-
Plant-wide data acquisition and monitoring systems
-
Industrial historian data collection and archiving
-
Remote operator and engineering workstation connectivity
-
Power generation and process industry control system interfacing
FAQ
Q1: What is the primary function of INPCT01?
It acts as a communication bridge between the INFI-90 Plant Loop and external computer systems using serial protocols.
Q2: Which communication standards are supported?
It supports RS-232 and RS-422 serial interfaces for flexible system integration.
Q3: Is it suitable for SCADA integration?
Yes, it is commonly used for connecting ABB DCS systems to SCADA and monitoring platforms.
