Description
Overview

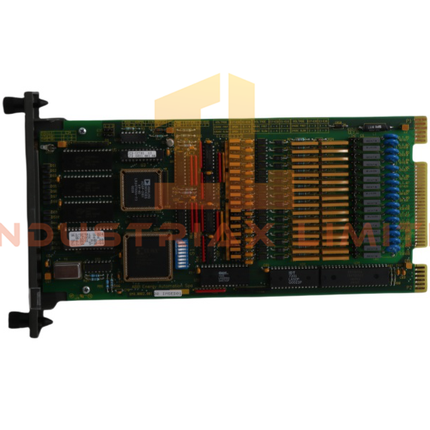

The ABB IMSED01 Sequence of Events Module from the HR Series delivers precise monitoring and reliable performance. ABB designed this module to integrate seamlessly into DCS systems, ensuring efficient data acquisition and robust process control. Its compact 17.8x5.1x33.0 cm size and 0.4 kg weight make installation straightforward in space-limited environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
IMSED01 |
| Module Type |
Sequence of Events Module |
| Manufacturer |
ABB |
| Product Range |
HR Series (Harmony Rack I/O) |
| System Compatibility |
DCS |
| Dimensions |
17.8x5.1x33.0 cm |
| Weight |
0.4 kg |
| Input Channels |
16 digital inputs |
| Communication Service |
Ethernet router |
| Protocol Support |
Modbus TCP/IP |
| HS Code |
8537101190 |
| Origin |
Sweden |
| Condition |
Brand New |
| MOQ |
1 |
| Status |
Active |
| Operating Temperature |
-20°C to +70°C |
Functional Description
The ABB IMSED01 provides 16 digital input channels that capture signals from sensors and actuators with high accuracy. Engineers benefit from its versatile monitoring capabilities, which optimize operational efficiency across industrial processes. ABB constructed the module with durable materials to withstand harsh environments, ensuring consistent performance within wide temperature ranges.
The module supports Modbus TCP/IP communication, enabling smooth integration into existing automation networks. Its energy-efficient design reduces power consumption while maintaining full functionality. The panel-mountable structure simplifies installation, making it ideal for compact control setups.
Applications and Compatibility
The ABB IMSED01 Sequence of Events Module suits industries requiring precise event logging and digital input monitoring. It integrates effectively into HR Series Harmony Rack I/O systems and DCS platforms. Manufacturers in energy, chemical, and process industries rely on this module for accurate data acquisition and seamless communication.
Its compatibility with Ethernet-based communication and Modbus TCP/IP ensures flexible integration with modern automation infrastructures. ABB’s HR Series guarantees long-term reliability, making the IMSED01 a trusted solution for industrial automation.
