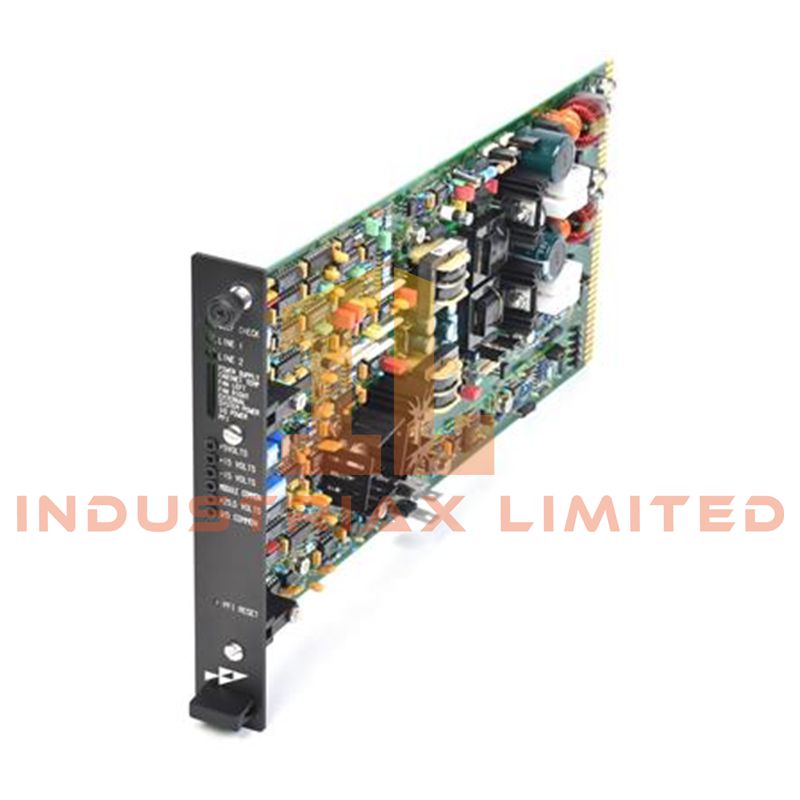

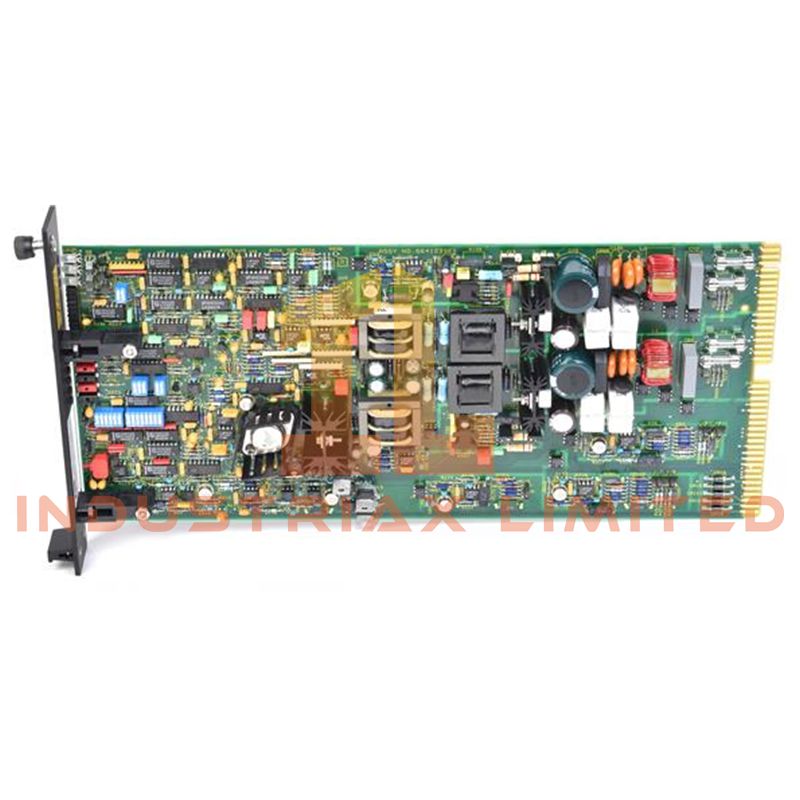

The ABB IMPMON01 is a dedicated power supervision module designed for ABB Bailey INFI-90 distributed control systems. It continuously tracks the condition of system power rails and provides diagnostic feedback to maintain stable operation of control hardware.

This module plays a critical role in identifying abnormal voltage conditions and ensuring that power-related faults are detected early. It supports system reliability by reporting real-time status information to the control processor and operator interfaces.

Functional Capabilities

• Monitors multiple system voltage levels including logic and analog supplies

• Detects undervoltage, overvoltage, and power interruption events

• Reports power status and alarms to the control system

• Provides hardware-level diagnostics for maintenance and troubleshooting

• Supports stable operation of control modules through continuous supervision

Technical Specifications

Electrical Characteristics

• Backplane Supply: 5 VDC

• Power Consumption: Approximately 4–6 W

• Monitored Voltages:

• +5 VDC logic supply

• +15 VDC and –15 VDC analog rails

• Input Power (external reference):

• 0.3 A at 120 VAC

• 0.2 A at 240 VAC or 125 VDC

Monitoring and I/O Signals

• Logic Status Inputs:

• 2 inputs (logic low indicates fault)

• Logic 0: 0.8 VDC at 10 mA sink

• Logic 1: 3.1 VDC at 80 µA source

• Fan Status Inputs:

• 2 inputs for fan condition monitoring

• Power Fail Interrupt (PFI):

• 1 open-collector output (non-isolated)

• Logic 0: 0.8 VDC at 10 mA

• Logic 1: 4.75–5.25 VDC at 80 µA

• Status Output:

• Open-collector output for module fault indication

• Bus Alarm Output:

• Opto-isolated open-collector (24 V class)

• Logic 1 indicates fault condition

Communication Interface

• System Integration: INFI-90 I/O bus

• Data Transfer: Continuous status reporting and alarm signaling

• Diagnostics: Power health monitoring, fault detection, event indication

Environmental Conditions

• Operating Temperature: 0°C to +60°C

• Storage Temperature: –40°C to +85°C

• Humidity: 5% to 95% non-condensing

Mechanical Specifications

• Dimensions (D × W × H): 40.13 × 3.56 × 21.84 cm

• Weight: 0.71 kg

• Form Factor: Eurocard module

• Mounting: Compatible with INFI-90 Module Mounting Unit (MMU)

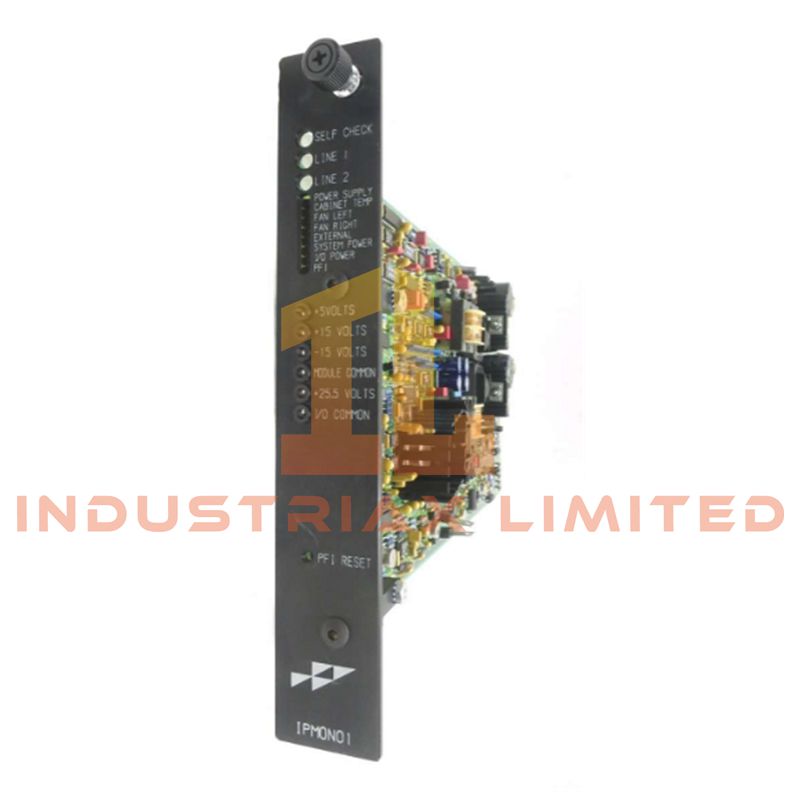

Front Panel Features

• Power status indicator

• Fault and alarm LEDs

• Module health indication

Application Areas

The ABB IMPMON01 is used in systems where continuous power supervision is essential:

• Power generation plants with critical control infrastructure

• Oil and gas processing facilities

• Petrochemical and refining operations

• Industrial automation systems requiring high availability

FAQ

What does the IMPMON01 monitor?
It supervises system voltage levels, including logic and analog supplies, and reports abnormal conditions.

How are faults communicated?
Faults are indicated through system communication as well as hardware outputs such as alarm and status signals.

Can it monitor cooling system status?
Yes, it includes inputs for monitoring fan operation and related conditions.

Why is this module important?
It helps prevent system failures by detecting power issues early and enabling timely corrective actions.
