Description
Overview

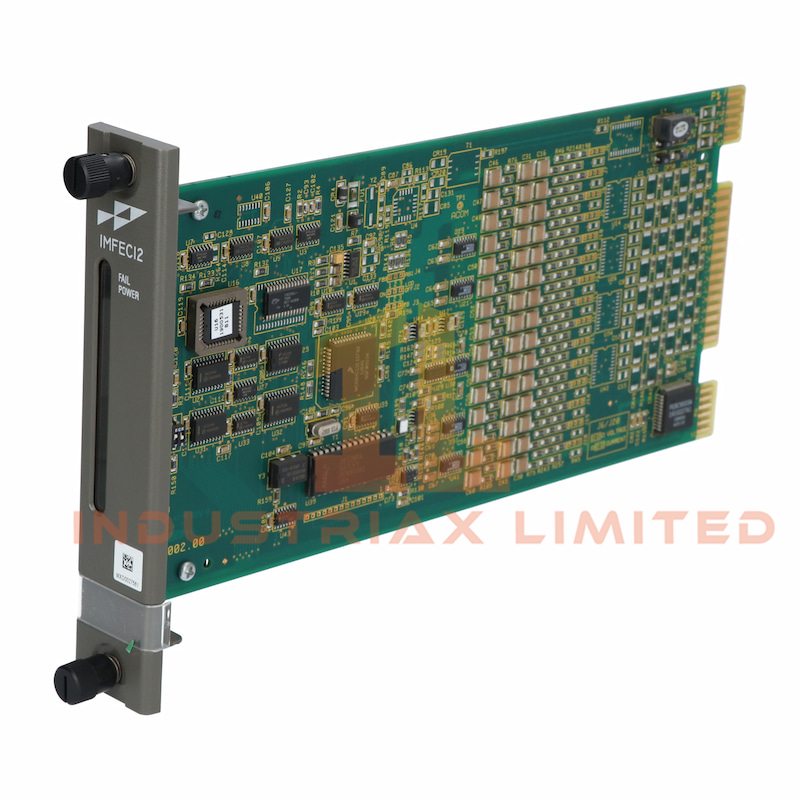

The ABB IMFEC12 Analog Input Module is a high-performance interface for the INFI 90® OPEN strategic process management system. It connects conventional transmitters and standard analog signals to multifunction processors and controllers, enabling accurate data acquisition and control. With support for 15 field inputs and broad signal compatibility, this module ensures seamless integration into industrial automation environments.
Key Features
-
Accepts 15 analog field inputs from transmitters and sensors
-
Interfaces with MFP, IMMFC03, IMMFC04, and IMMFC05 controller modules
-
Compatible with BC, EQ, and PT conventional transmitters
-
Supports standard analog input ranges:
-
4 to 20 mA
-
1 to 5 VDC
-
0 to 1 VDC
-
0 to 5 VDC
-
0 to 10 VDC
-
-10 to +10 VDC
-
Functions as a direct replacement for IMASI02, excluding baseband communications
-
Contains onboard microprocessor, A/D converter, and I/O expander bus interface
-
Compact PCB design fits into standard mounting units
-
Designed for reliable signal conversion and communication
Technical Specifications
| Specification |
Details |
| Manufacturer |
ABB |
| Part Number |
IMFEC12 |
| Series |
INFI 90® OPEN |
| Input Channels |
15 analog inputs |
| Supported Signals |
4–20 mA, ±10 VDC, 0–10 VDC, etc. |
| Voltage Supply |
±15 VDC |
| Power Consumption |
1 W |
| Dimensions |
22.9 cm × 5.1 cm × 33.0 cm |
| Weight |
0.3 kg |
| Compatibility |
MFP, IMMFC03/04/05, IMASI02 replacement |
