Product Description

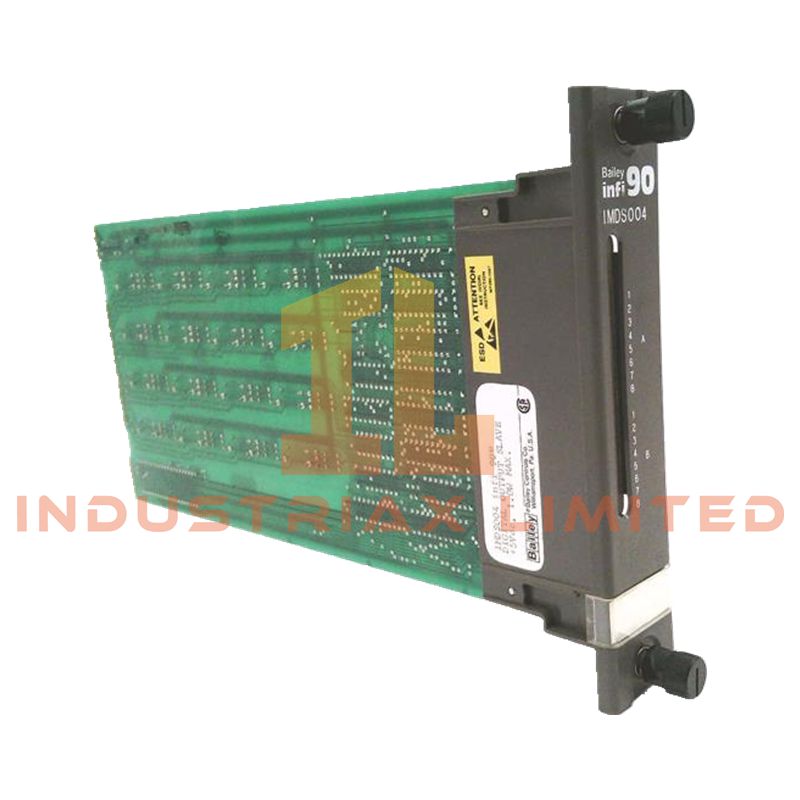

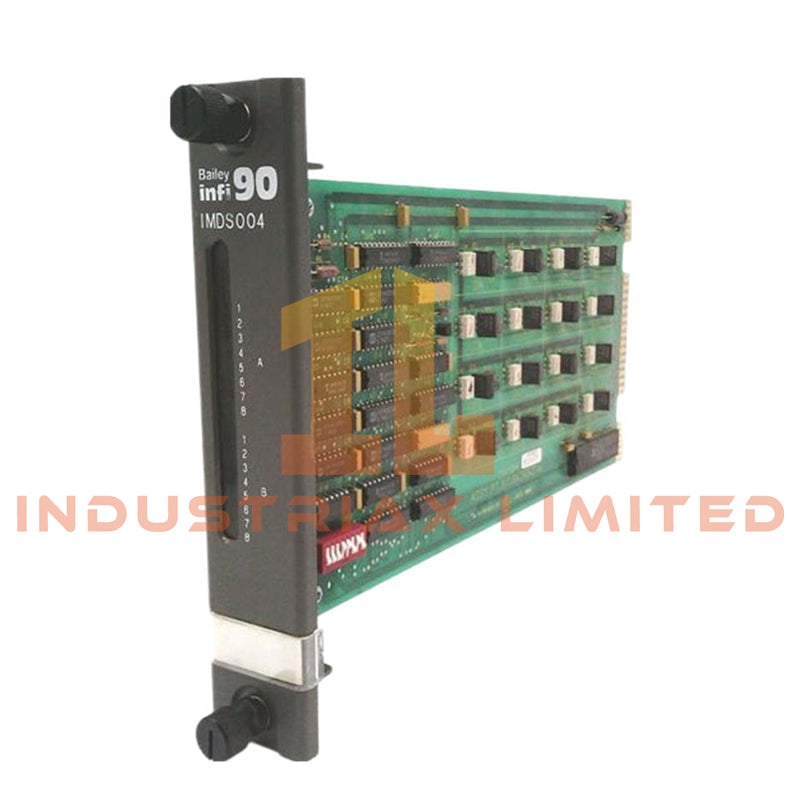

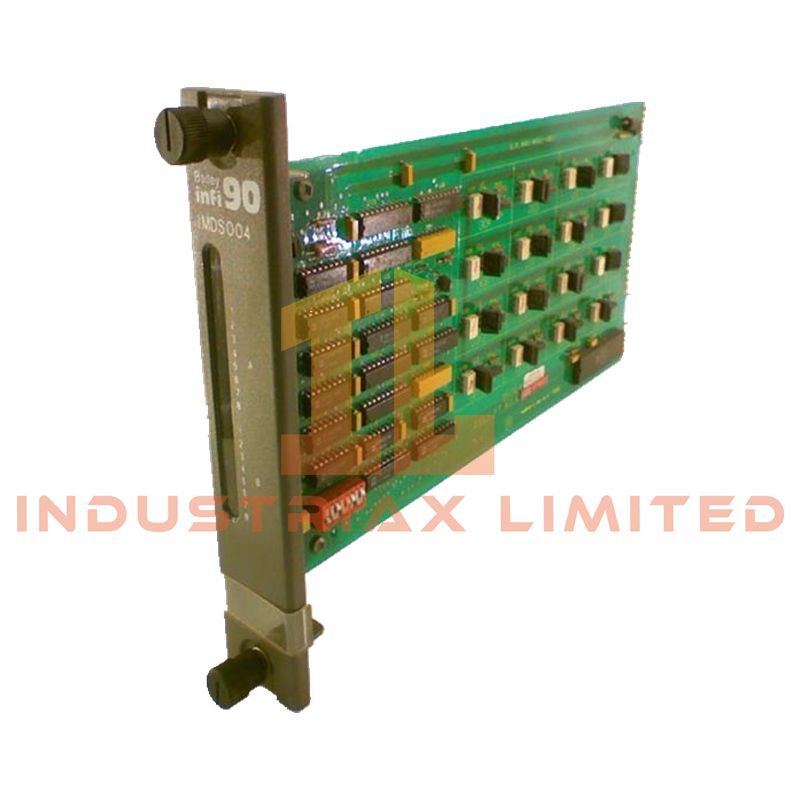

The ABB Bailey IMDSO04 is a digital output interface module designed for use in INFI-90 and Symphony Harmony distributed control systems. It translates control logic signals from the system bus into field-level switching outputs, enabling direct actuation of industrial devices such as relays, solenoids, and contactors.
This module utilizes open-collector output circuitry with robust isolation, allowing safe and reliable operation in electrically demanding environments. The IMDSO04 improves upon earlier digital output modules by incorporating enhanced protection, faster switching performance, and better channel isolation, making it suitable for critical control tasks.
It is typically installed in standard ABB DCS racks and operates continuously in applications where deterministic output control and system reliability are essential.
Technical Specifications
| Parameter |
Description |
| Product Type |
Digital Output Slave Module |
| Model |
IMDSO04 |
| System Compatibility |
ABB INFI-90, Symphony Harmony |
| Output Channels |
16 independent digital outputs |
| Output Type |
Open collector (sinking output) |
| Nominal Output Voltage |
24 VDC |
| Output Current |
250 mA per channel (standard), higher ratings depending on configuration |
| On-State Voltage Drop |
≤ 2.4 V |
| Off-State Leakage Current |
≤ 10 µA |
| Switching Response Time |
≤ 1 ms |
| Isolation Voltage |
300 Vrms (logic to field) |
| Channel Isolation |
Individually isolated channels |
| Logic Supply Voltage |
+5 VDC (±5%) |
| Logic Current Consumption |
~135 mA typical |
| Power Dissipation |
Approx. 1 W |
| Operating Temperature |
–20°C to +70°C |
| Mounting |
Rack-mounted module |
| Dimensions |
203 × 51 × 330 mm |
| Weight |
0.3 kg |
Functional Characteristics
-
Converts DCS logic signals into field-level switching outputs
-
Open collector outputs suitable for driving external loads
-
High isolation level protects system backplane from field faults
-
Fast switching capability supports time-critical control operations
-
Designed for continuous duty in industrial environments
-
Improved reliability compared to earlier DSO module generations
Application Areas
-
Control of solenoid valves and actuators
-
Relay and contactor switching in process systems
-
Power generation and turbine auxiliary control
-
Chemical and petrochemical plant automation
-
Discrete output control in distributed control systems
FAQ
What type of loads can the IMDSO04 drive?
It is designed to control DC loads such as relays, solenoids, and contactors using open collector outputs.
Is each output channel isolated?
Yes, the module provides isolation between logic and field circuits, as well as channel-to-channel separation for improved fault tolerance.
Can it replace earlier DSO modules?
Yes, it is commonly used as a functional replacement for IMDSO01, IMDSO02, and IMDSO03, with improved performance.
Does the module require external power for outputs?
Yes, external 24 VDC field power is required for driving connected devices.
