Description
Overview

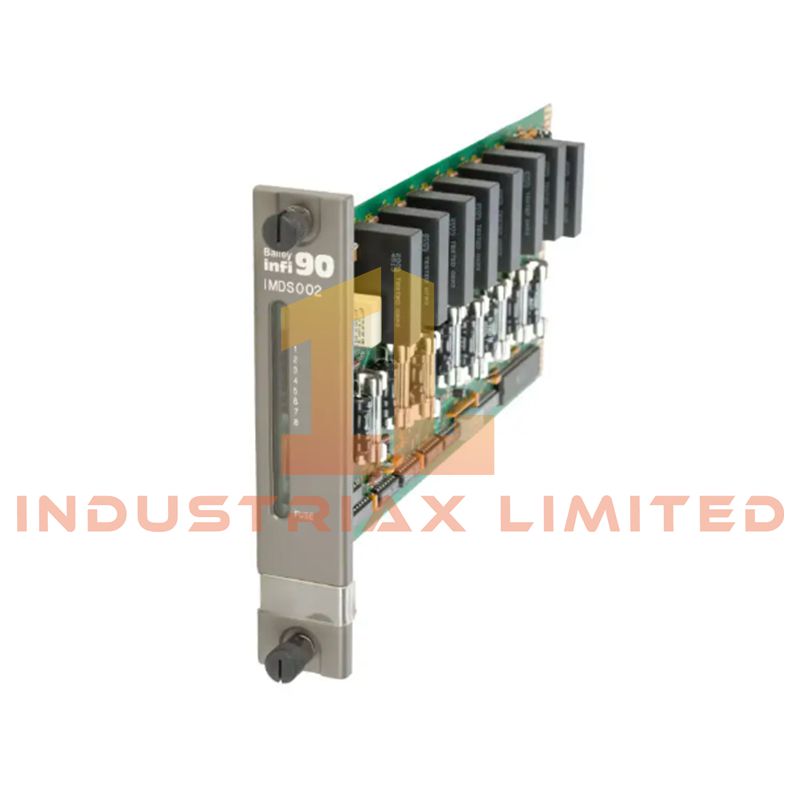

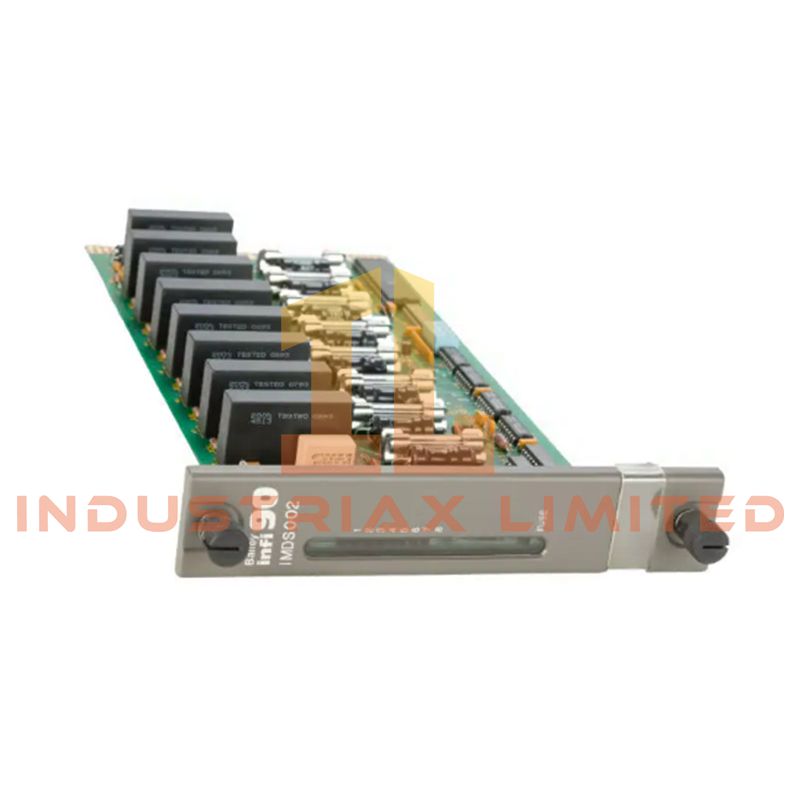

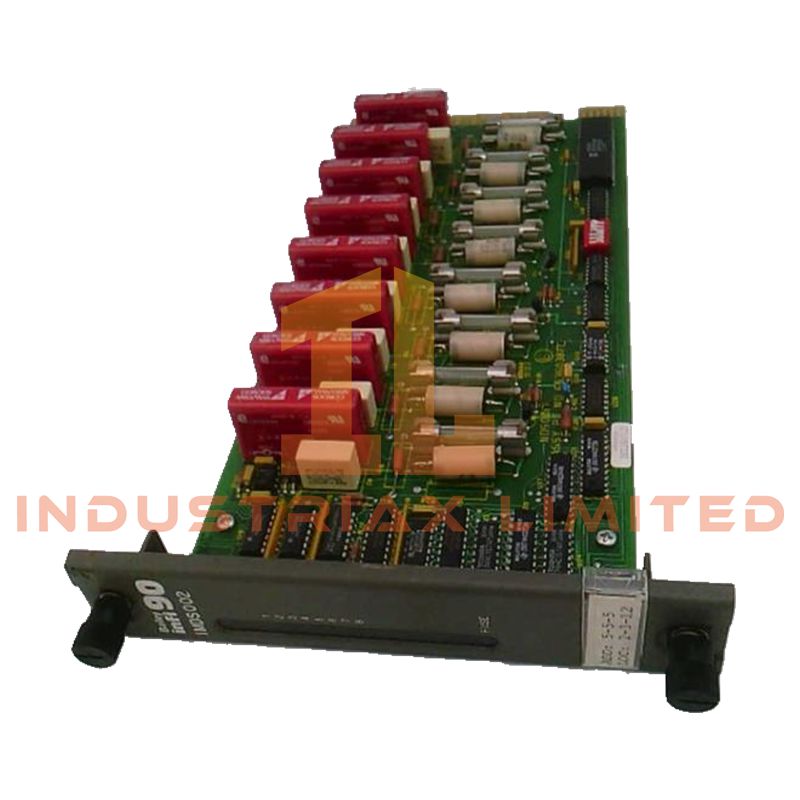

The ABB IMDSO02 is a 16-point digital output module designed for Bailey INFI 90, Net 90, and Symphony Harmony distributed control platforms. It translates controller commands into discrete field output signals for driving external electrical devices in industrial control environments.
It is engineered for high-reliability switching applications where stable actuation, electrical isolation, and fault protection are required for continuous operation.
Functional Role
The IMDSO02 operates as an output interface between the INFI 90 control system and field-level actuators. It receives digital commands from the system backplane and energizes 24 VDC output channels to control devices such as relays, solenoids, indicators, and interlocking circuits.
Each channel operates independently, allowing distributed control of multiple field devices within a single module.
Technical Specifications
| Parameter |
Specification |
| Brand |
ABB |
| Model |
IMDSO02 |
| Product Type |
Digital Output Slave Module |
| System Compatibility |
Bailey INFI 90 / Net 90 / Symphony Harmony |
| Output Channels |
16 Digital Outputs |
| Output Type |
24 VDC sourcing outputs |
| Output Voltage Range |
18–30 VDC |
| Maximum Output Current |
Up to 0.5 A per channel (typical design reference) |
| Field Power Requirement |
External 24 VDC supply |
| Backplane Power |
Supplied via INFI 90 rack |
| Isolation |
Optical isolation (channel-to-channel and channel-to-system) |
| Protection Features |
Overcurrent protection, short-circuit protection, transient suppression |
| Switching Technology |
Solid-state output drivers |
| Diagnostic Indicators |
LED per channel + module power status |
| Self Diagnostics |
Output driver health monitoring and fault reporting |
| Communication Interface |
INFI 90 system bus |
| Operating Temperature |
0°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity Range |
5–95% RH non-condensing |
| EMI/EMC Protection |
Industrial-grade noise immunity design |
| Dimensions |
350 × 260 × 70 mm |
| Net Weight |
1.0 kg |
| Mounting Type |
INFI 90 rack slot module |
System Integration
The IMDSO02 integrates directly into ABB INFI 90 architectures through the rack backplane, enabling synchronized digital output control across distributed system modules. It supports coordinated actuation in large-scale automation environments requiring deterministic output behavior.
Industrial Applications
Typical deployment areas include:
-
Power plant control systems
-
Petrochemical processing facilities
-
Industrial automation lines
-
Motor and actuator control systems
-
Safety interlock and shutdown circuits
-
Legacy ABB INFI 90 system maintenance and upgrades
Engineering Characteristics
The IMDSO02 is designed for high-noise and high-load environments. Its optical isolation architecture protects system electronics from field-side disturbances, while integrated protection circuits ensure safe operation under overload or short-circuit conditions.
FAQ
What is the purpose of the IMDSO02 module?
The IMDSO02 is used to control external devices by converting INFI 90 system commands into 16-channel 24 VDC digital outputs.
What devices can it drive?
It can control relays, solenoids, contactors, indicators, and interlocking circuits.
Does it include protection features?
Yes. It includes short-circuit protection, overcurrent protection, and transient suppression.
Is it suitable for continuous industrial operation?
Yes. It is designed for 24/7 operation in harsh industrial environments.
