Description
Overview

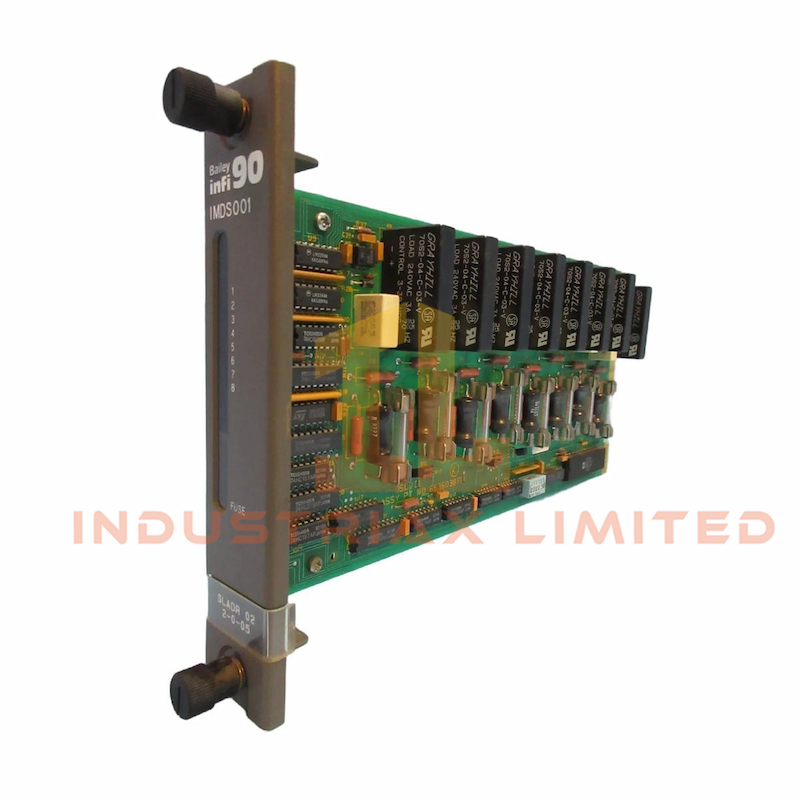

The ABB IMDSO01 Digital Output Module is a robust I/O component within the INFI 90 system, designed to deliver eight isolated digital signals for precise process control. Each output is routed through solid-state relays, enabling reliable switching of field devices across a wide voltage range. Its compact PCB design and diagnostic LEDs make it ideal for industrial environments requiring dependable digital output performance.
Key Features
-
Outputs eight isolated digital signals via solid-state relays
-
Switches 24 to 240 VAC signals for field device control
-
Occupies a single slot in the Module Mounting Unit (MMU)
-
Includes ten front panel LEDs for output, fuse, and module status
-
Three card edge connectors (P1, P2, P3) for power and signal routing
-
Connector P1 supplies +5 VDC power and common
-
Connector P2 links to the I/O expander bus
-
Connector P3 transmits output signals to termination devices
-
User-defined default states enhance system flexibility
-
Captive latching screws secure the module firmly in place
Technical Specifications
| Specification |
Details |
| Manufacturer |
ABB |
| Part Number |
IMDSO01 |
| Series |
INFI 90 System |
| Output Signals |
8 isolated digital outputs |
| Switching Voltage |
24 to 240 VAC |
| Input Voltage |
5 VDC |
| Power Consumption |
1 W |
| Dimensions |
73.6 mm × 358.1 mm × 269.2 mm |
| Weight |
0.4 kg |
| Mounting |
Single-slot PCB in MMU |
| Status Indicators |
10 LEDs (module, fuse, output status) |
| Connectors |
P1 (power), P2 (bus), P3 (output cable) |
