Description
Overview

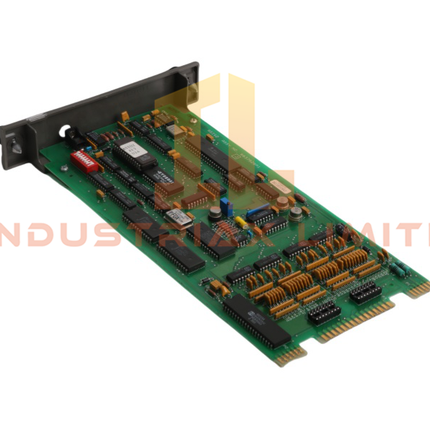

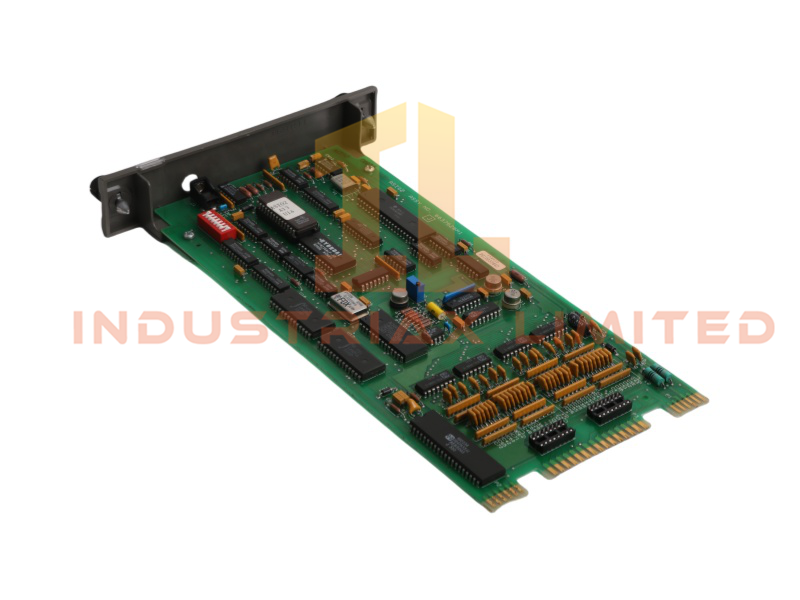

The ABB IMASI02 Bailey Analog Input Module ensures precise data acquisition and reliable performance in HR Series Harmony Rack I/O systems. Its compact dimensions and lightweight build simplify installation, while the rugged design guarantees durability in demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
IMASI02 |
| Manufacturer |
ABB |
| Module Type |
Analog Input Module |
| Product Range |
HR Series (Harmony Rack) I/O |
| Dimensions |
3.5 × 31 × 17.5 cm |
| Weight |
0.28 kg |
| Input Channels |
32 analog inputs |
| Voltage Range |
-10V to +10V |
| Operating Temperature |
-40°C to +70°C |
| Connector Type |
BNC |
| Power Consumption |
Low for energy efficiency |
| Communication Service |
Ethernet router, Infi 90 protocol |
| System |
DCS |
| HS Code |
8537101190 |
| Origin |
Sweden |
| Condition |
Brand New |
| MOQ |
1 |
Functional Highlights
The ABB IMASI02 module features 32 high-precision analog input channels, supporting complex monitoring and control tasks. Engineers rely on its wide voltage range of -10V to +10V for versatile applications. Its rugged design ensures continuous operation across extreme temperatures, while low power consumption improves energy efficiency. The BNC connector simplifies installation and maintenance, making it suitable for space-constrained environments.
Applications and Compatibility
The ABB IMASI02 Bailey Analog Input Module integrates seamlessly into HR Series Harmony Rack I/O and DCS systems. Its compatibility with the Infi 90 communication protocol ensures smooth data exchange across industrial networks. This module suits industries such as manufacturing, energy, and process control requiring reliable analog input, scalability, and long-term operational stability.
