Description
Overview

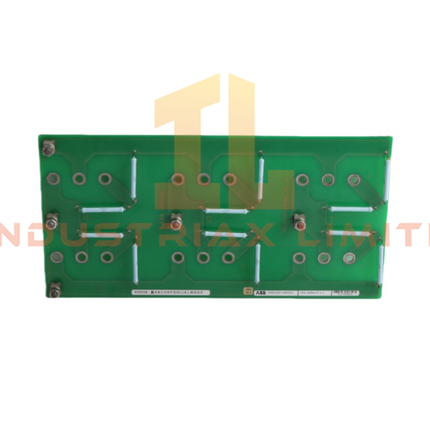

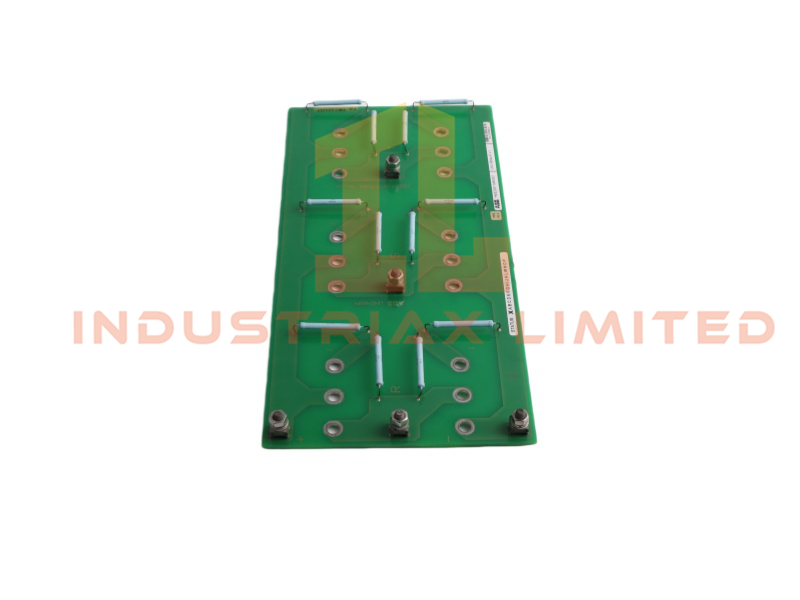

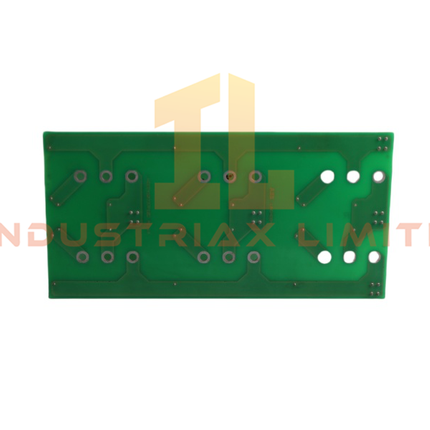

The HIEE305114R0001 UNS4684A‑P PCB assembly is part of ABB’s UNITROL 6000 excitation platform, designed to support precise control, signal processing, and protection functions within generator and industrial automation systems. Its construction and component layout are optimized for long‑term stability in DCS‑based environments.
Technical Characteristics
This assembly uses high‑quality PCB materials and surface‑mount components to ensure consistent electrical performance. Its mechanical strength and thermal resistance make it suitable for installations where temperature variations and continuous operation are expected.
Technical Specifications
| Parameter |
Specification |
| Model |
HIEE305114R0001 UNS4684A‑P |
| Product Type |
PCB Assembly |
| Brand |
ABB |
| Product Range |
UNITROL 6000 |
| System Category |
DCS |
| PCB Material |
High‑grade FR‑4 epoxy |
| Assembly Type |
SMT‑based PCB assembly |
| Operating Temperature |
Wide‑range industrial rating (manufacturer‑specified) |
| Weight |
0.18 kg |
| Dimensions |
27.1 × 13.6 × 2 cm |
| HS Code |
8537101190 |
| Condition |
Brand New |
| Origin |
Sweden |
| Availability |
In Stock |
| Minimum Order Quantity |
1 |
| Product Status |
Active |
Functional Description
The HIEE305114R0001 UNS4684A‑P module is engineered to support signal conditioning and control functions within UNITROL 6000 excitation systems. Its FR‑4 substrate provides mechanical rigidity and thermal stability, while the SMT component layout enhances signal integrity and reduces electrical noise.
The board’s design supports stable operation in environments where continuous duty cycles and high reliability are required. Optimized trace routing and component spacing help maintain consistent performance across a variety of excitation and control applications.
Application Scenarios
-
Generator excitation systems in power generation facilities
-
UNITROL 6000‑based control and protection assemblies
-
Industrial automation requiring stable PCB‑level signal processing
-
Maintenance and retrofit of ABB excitation platforms
FAQ
Q: Is the HIEE305114R0001 UNS4684A‑P compatible with all UNITROL 6000 systems? A: It is designed for the UNITROL 6000 platform; compatibility depends on the specific system configuration.
Q: What PCB material is used in this assembly? A: The board uses FR‑4 epoxy laminate, known for its thermal stability and mechanical strength.
Q: Does ABB provide documentation for installation? A: Yes. ABB supplies technical manuals and wiring guidance for proper integration.
