Description
Product Overview

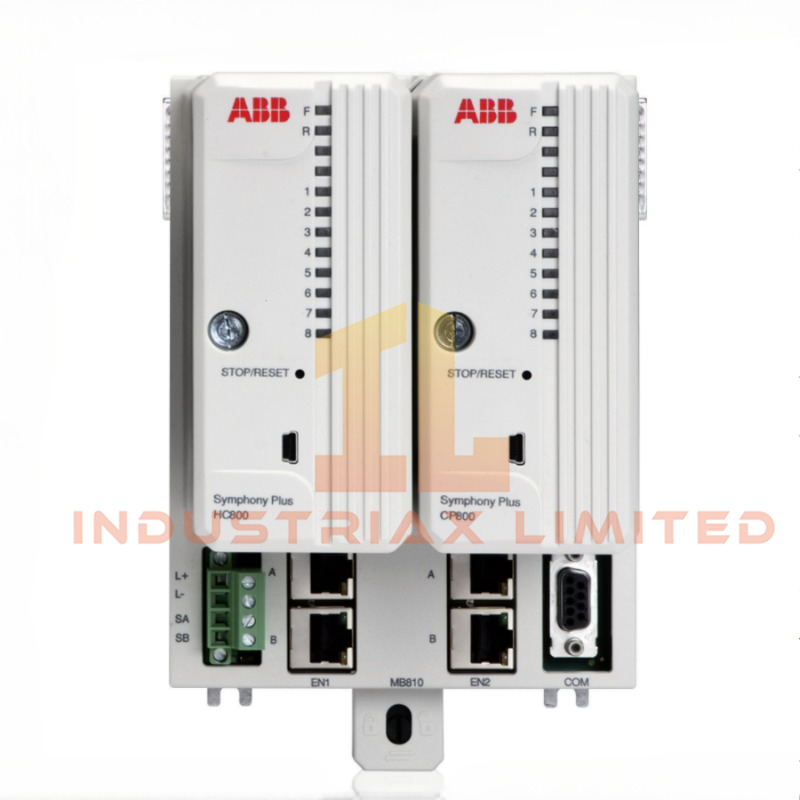

The ABB HC800 is a high-performance Control Processor Module designed for the SD Series HPC800 controller within the Symphony Plus system. Engineered for demanding industrial environments, it supports up to 30,000 function blocks, enabling precise control across discrete, continuous, batch, and advanced applications.
Key Features
-
Memory: 64 MB DRAM, 4 MB ROM, 2 MB NVRAM
-
Function Block Capacity: Supports up to 30,000 blocks
-
Protocol Support: Executes Modbus TCP interface
-
Redundancy: Available at control, I/O, and communication levels
-
I/O Compatibility: Connects to DIN-style and Rack I/O modules
-
Device Integration: Supports smart transmitters, IEDs, actuators, and third-party PLCs
-
Control Strategy Development: Uses ABB’s standard function code algorithms
-
Network Architecture: 100 Mbps Fast Ethernet (PN800), redundant and secure
-
Legacy Compatibility: Reuses Harmony and INFI 90 control applications
Technical Specifications
| Specification |
Detail |
| Manufacturer |
ABB |
| Part Number |
HC800 |
| Catalog |
Symphony Plus |
| Description |
Control Processor Module |
| Voltage |
24 V DC |
| Current |
200 mA |
| Dimensions (W×H×D) |
78.74 mm × 243.84 mm × 210.82 mm |
| Weight |
0.88 kg |
| Memory |
64 MB DRAM, 4 MB ROM, 2 MB NVRAM |
| Function Blocks |
Up to 30,000 |
| Communication |
Modbus TCP over PN800 Ethernet |
Application & Compatibility
The HC800 is ideal for large-scale industrial automation systems requiring high-speed, high-reliability control. It integrates effortlessly with ABB’s Symphony Plus ecosystem and supports legacy control strategies from Harmony and INFI 90 systems, making it a future-ready yet backward-compatible solution.
