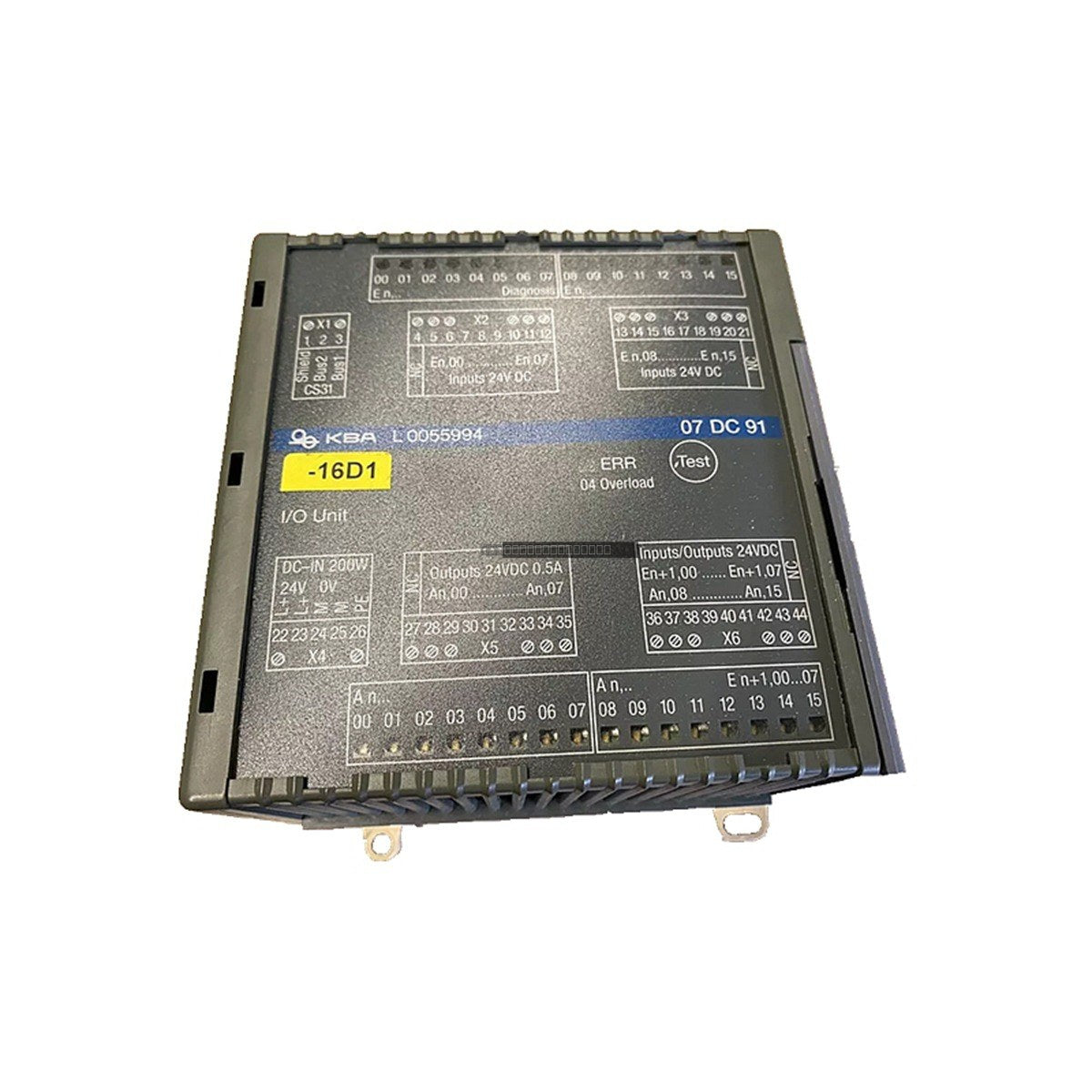

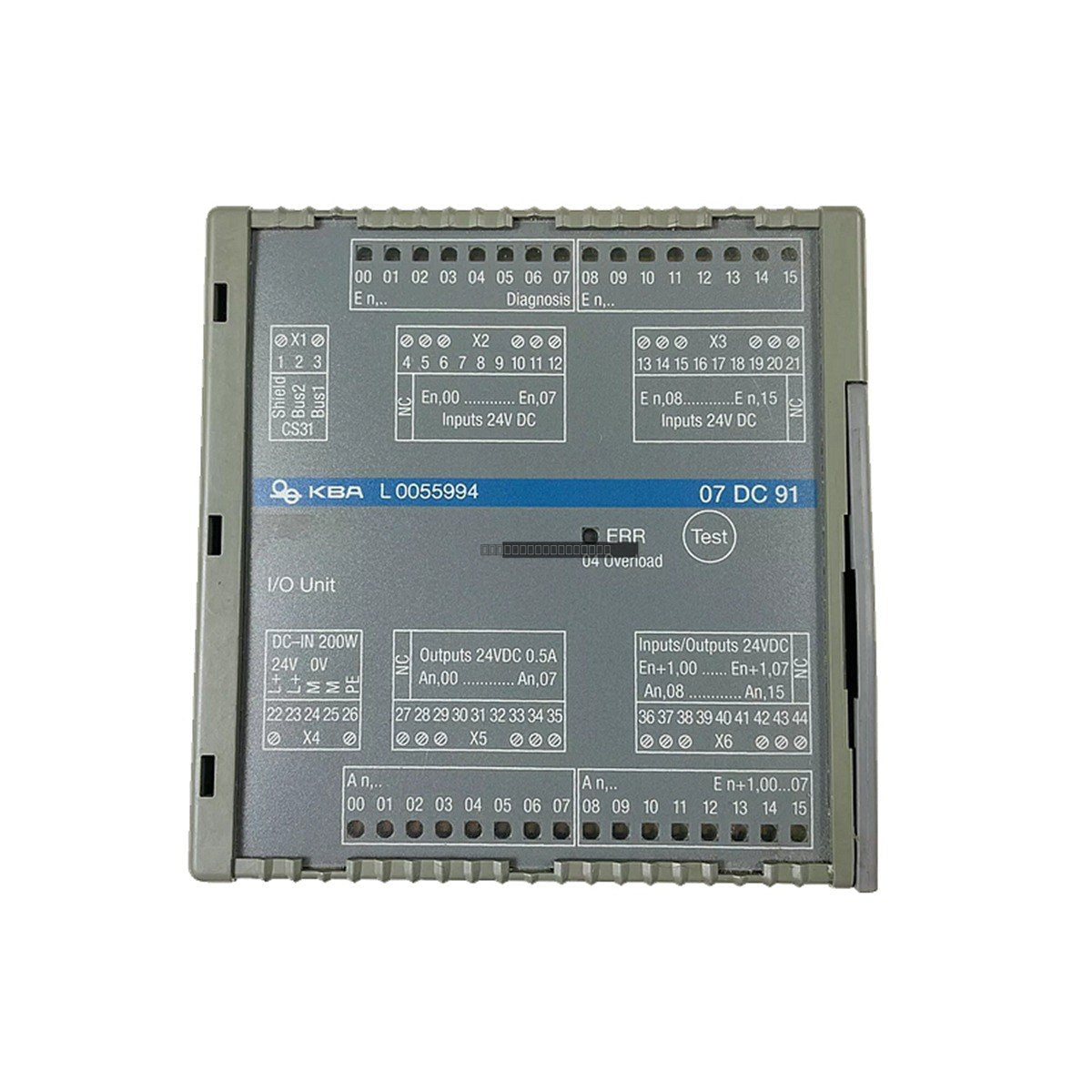

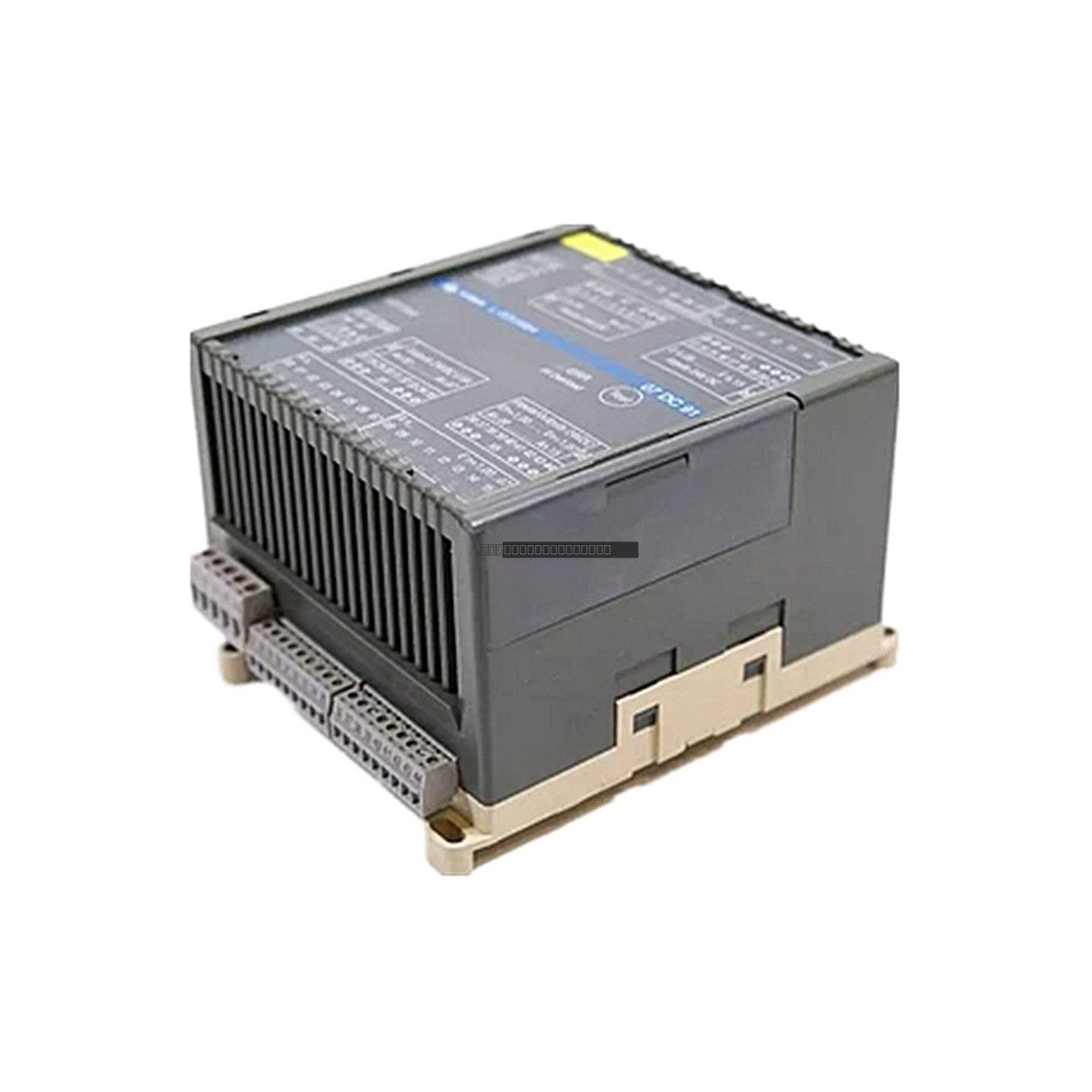

The ABB GJR5251400R0202 is a versatile digital I/O module designed for integration into industrial control systems. This unit functions as a bus module featuring onboard I/O, providing a robust interface for both input and output operations within a CS31 fieldbus environment. It is engineered for reliable performance in standard industrial automation tasks requiring 24V DC signal processing.
Features
- Integrated CS31 Slave fieldbus interface for seamless network communication.
- Equipped with 16 DC 24V digital inputs and 8 DC 24V digital outputs.
- Supports a nominal output current of 0.5 A per channel.
- Features a dedicated RS-485 serial port for CS31 communication protocols.
- Utilizes pluggable screw terminals to facilitate efficient wiring and maintenance.
- Compact design suitable for standard DIN rail mounting.
Technical Specifications
| Digital Inputs (24V DC) |
16 |
| Digital Outputs (24V DC) |
8 |
| Output Current |
0.5 A |
| Fieldbus Interface |
CS31 Slave |
| Serial Port |
RS-485 (CS31) |
| Operating Temperature |
0 degC to +55 degC |
| Storage Temperature |
-25 degC to +75 degC |
| Protection Class |
IP20 |
| Mounting |
DIN Rail TH35-15 / TH35-7.5 |
Installation Guidelines
- Ensure the module is installed in an environment meeting the IP20 protection standard.
- Mount the device securely onto a standard 35mm DIN rail (TH35-15 or TH35-7.5) in accordance with IEC 60715.
- Verify that the power supply is disconnected before performing any wiring or module insertion/removal.
- Use appropriate shielded cabling for RS-485 communication to minimize electromagnetic interference.
- Maintain adequate spacing around the module to ensure proper ventilation and prevent overheating within the specified operating temperature range.
- Confirm that all pluggable screw terminals are firmly tightened to ensure reliable electrical contact.
FAQ
What is the primary communication protocol for this module? The GJR5251400R0202 is designed to operate as a CS31 Slave device, utilizing an RS-485 serial interface.
Can this module be mounted on a standard DIN rail? Yes, the module supports mounting on both TH35-15 and TH35-7.5 standard DIN rails as per IEC 60715 guidelines.
What are the environmental storage limits for this unit? The device should be stored in an area where temperatures remain between -25 degC and +75 degC.
