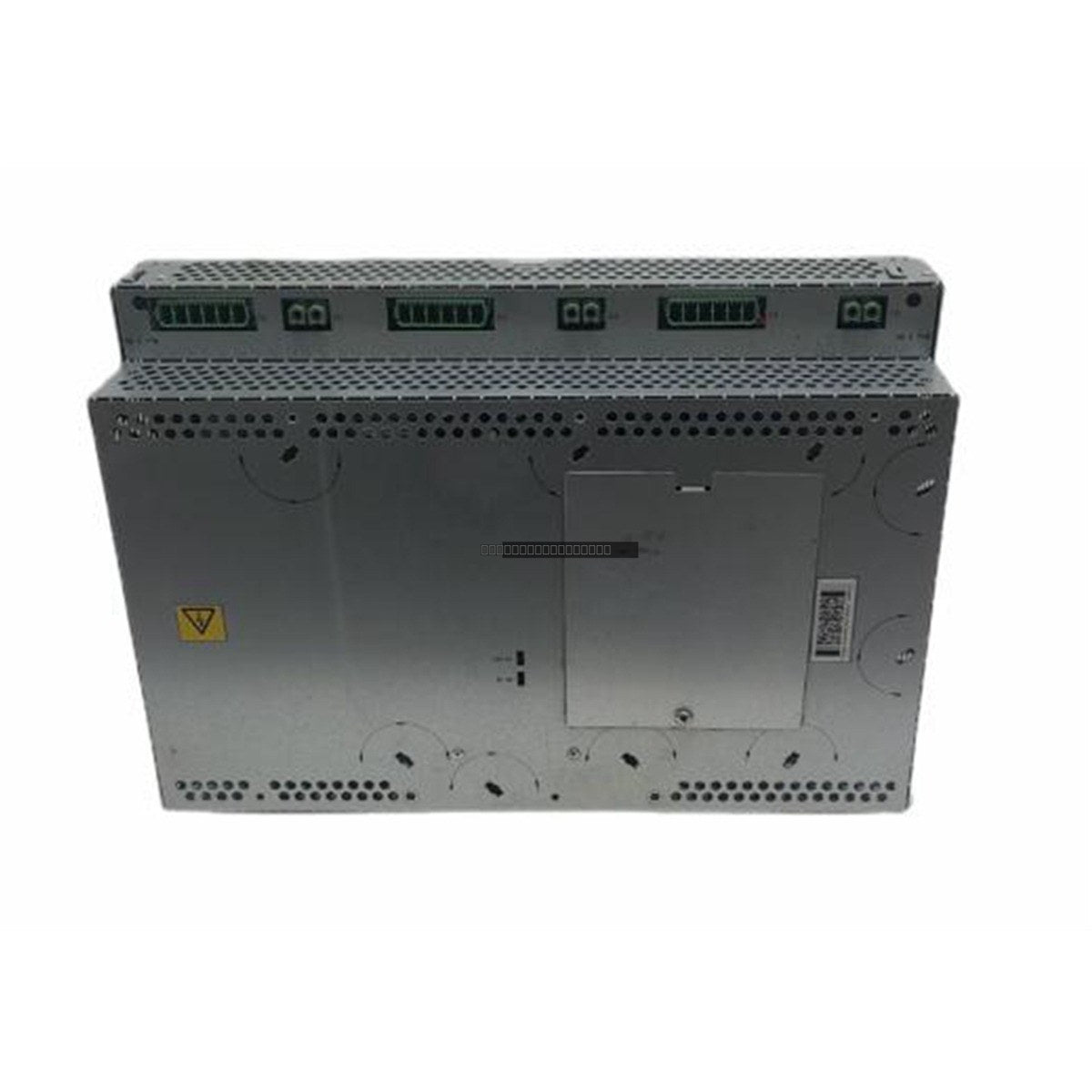

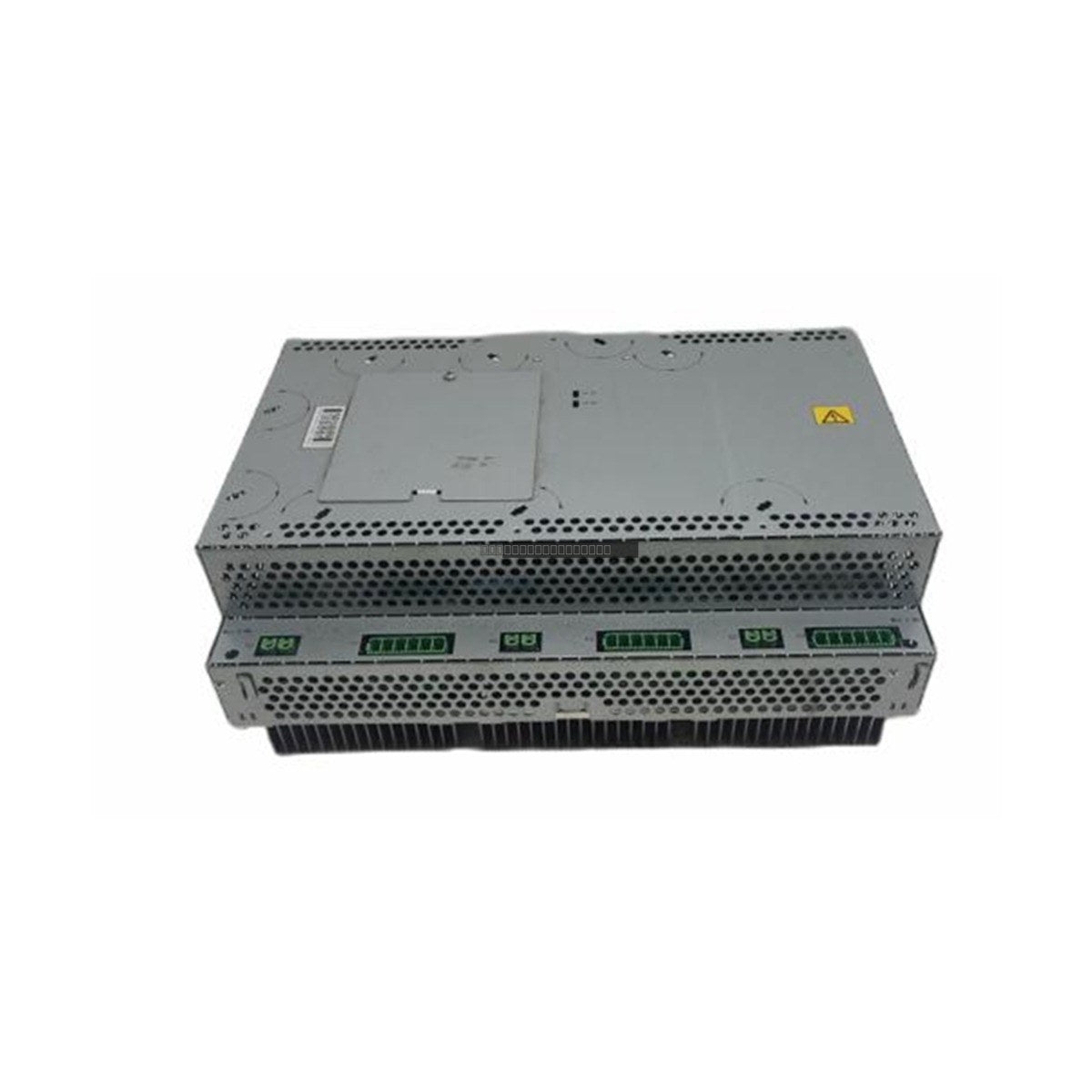

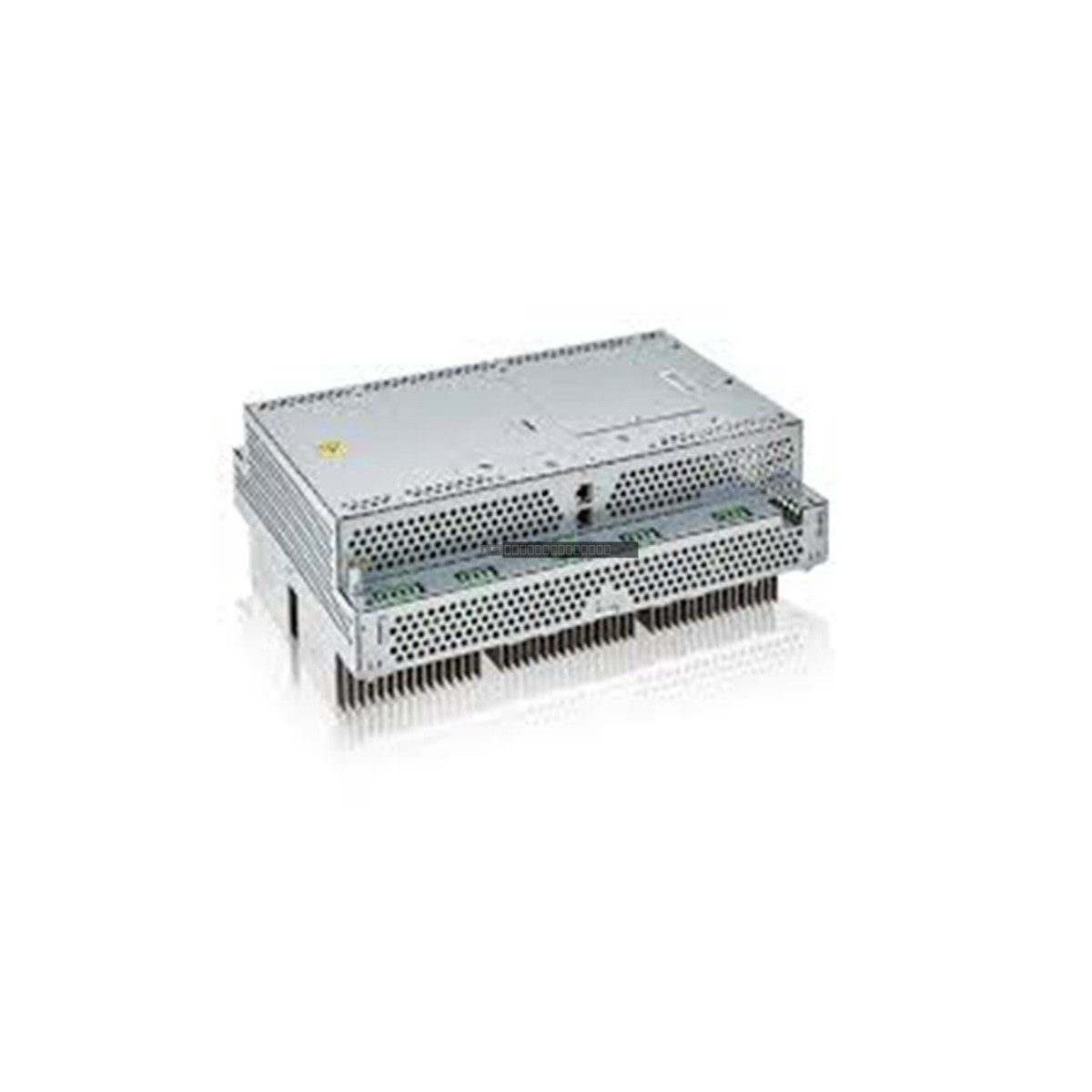

The ABB DSQC663 (3HAC029818-001) is a specialized drive unit designed for integration within ABB industrial robotic systems. This unit serves as a critical component in the motion control architecture, facilitating precise power delivery and regulation for robotic actuators. Engineered for high-performance industrial environments, the DSQC663 manages complex power conversion tasks required for multi-axis robot operation.
Features
- Designed specifically for ABB robotic motion control applications.
- Supports high-voltage DC link configurations for robust power management.
- Optimized for integration within standard ABB robot controller enclosures.
- Engineered for consistent performance across a wide operating temperature range.
- Integrated power stage for reliable 3-phase AC motor control.
Technical Specifications
| Product Model |
DSQC663 |
| Part Number |
3HAC029818-001 |
| Manufacturer |
ABB |
| Supply Voltage |
3-phase AC |
| DC Link Voltage |
600-800V DC |
| Output Current |
50-100A |
| Power Rating |
15-45 kVA |
| Operating Temperature |
0 degC to +55 degC |
| Storage Temperature |
-25 degC to +70 degC |
| Humidity |
5-95% RH (non-condensing) |
Installation Guidelines
- Ensure the robot controller is completely powered down and locked out before attempting to install or remove the drive unit.
- Verify that the DC link capacitor bank is fully discharged before handling the module to prevent electrical shock.
- Maintain proper ventilation clearances around the drive unit to ensure adequate heat dissipation during operation.
- Ensure all power connections are tightened to the manufacturer's specified torque requirements to prevent arcing or thermal failure.
- Use ESD-safe handling procedures when accessing the internal electronics of the controller cabinet.
- Check that the unit is securely seated in its mounting position to mitigate vibration-induced mechanical stress.
FAQ
What is the primary function of the ABB DSQC663?
The DSQC663 is a drive unit used in ABB robotic systems to convert and regulate power for the robot's motors, enabling precise motion control and torque management.
What should I verify before installing this drive unit?
Always verify the part number (3HAC029818-001) matches your existing hardware and ensure that the incoming 3-phase supply and DC link voltage levels are compatible with the specifications provided.
Are there specific environmental requirements for this module?
Yes, the unit should be operated within a non-condensing environment between 0 degC and 55 degC. Ensure the cabinet cooling fans are functional to prevent overheating during high-duty cycles.
