Description

Overview

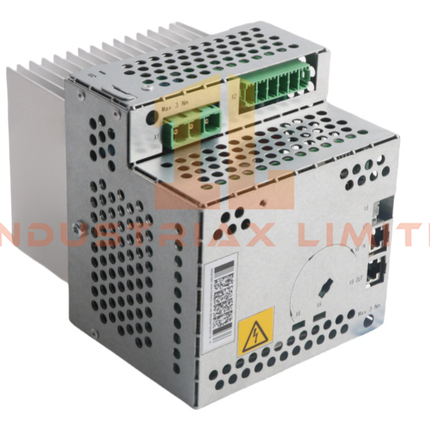

The DSQC 664 3HAC030923-001 Robot Drive Unit by ABB delivers precise control and robust signal processing for industrial robotics. Designed for DCS environments, this module integrates 16 digital inputs and 16 digital outputs in a compact 14.5×18×15cm housing.

Technical Specifications

Specification	Details
Model Number	DSQC 664 3HAC030923-001
Manufacturer	ABB
Module Type	Robot Drive Unit
System Compatibility	DCS / ABB Robotics
Digital I/O	16 inputs / 16 outputs
Input Voltage	3-phase 400–480V AC (+10%/-15%)
Frequency Range	50/60Hz ±3%
DC Link Voltage	620V DC
Continuous Current	25A
Peak Current	50A
Max Power Consumption	6.5 kVA
Update Rate	4kHz
Torque Accuracy	±2% of rated torque
Operating Temp	0°C to +45°C
Storage Temp	-25°C to +70°C
Humidity Tolerance	20–80% RH (non-condensing)
Weight	2.36 kg
Dimensions	14.5 × 18 × 15 cm
HS Code	8537101190
Origin	Sweden
Condition	Brand New
Lead Time	In Stock
Discontinued On	Active
MOQ	1

Features

• DSQC 664 3HAC030923-001 supports high-speed updates for responsive control.

• 620V DC link and 6.5kVA power capacity suit demanding robotic tasks.

• ±2% torque accuracy ensures consistent motion performance.

• Compact design simplifies integration into ABB robotic systems.

• Operates reliably across wide temperature and humidity ranges.

• Supports legacy systems with replacement options like 3HAC030923-001/08.

Specifications

• Dimensions: 14.5 × 18 × 15 cm
• Brand: ABB

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
