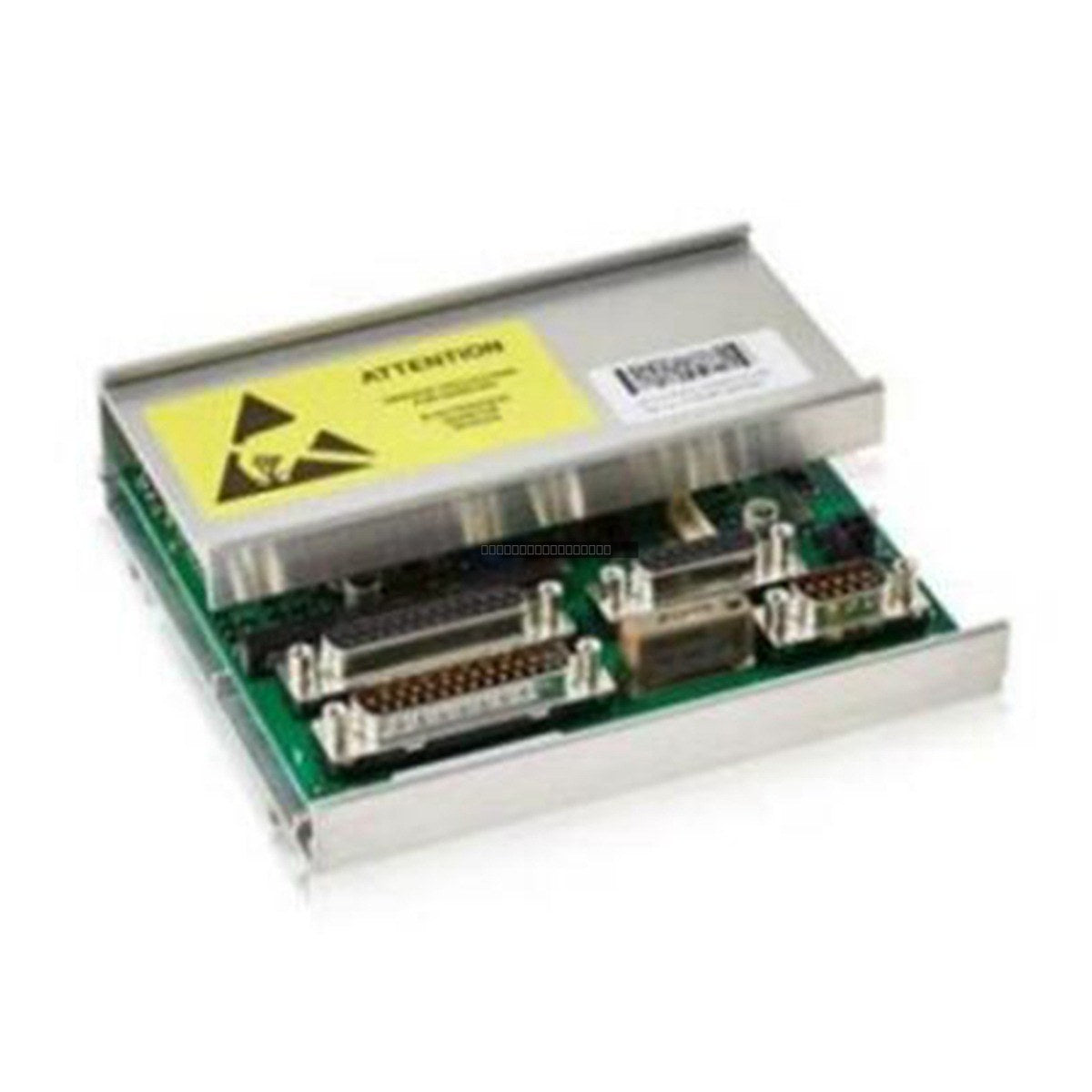

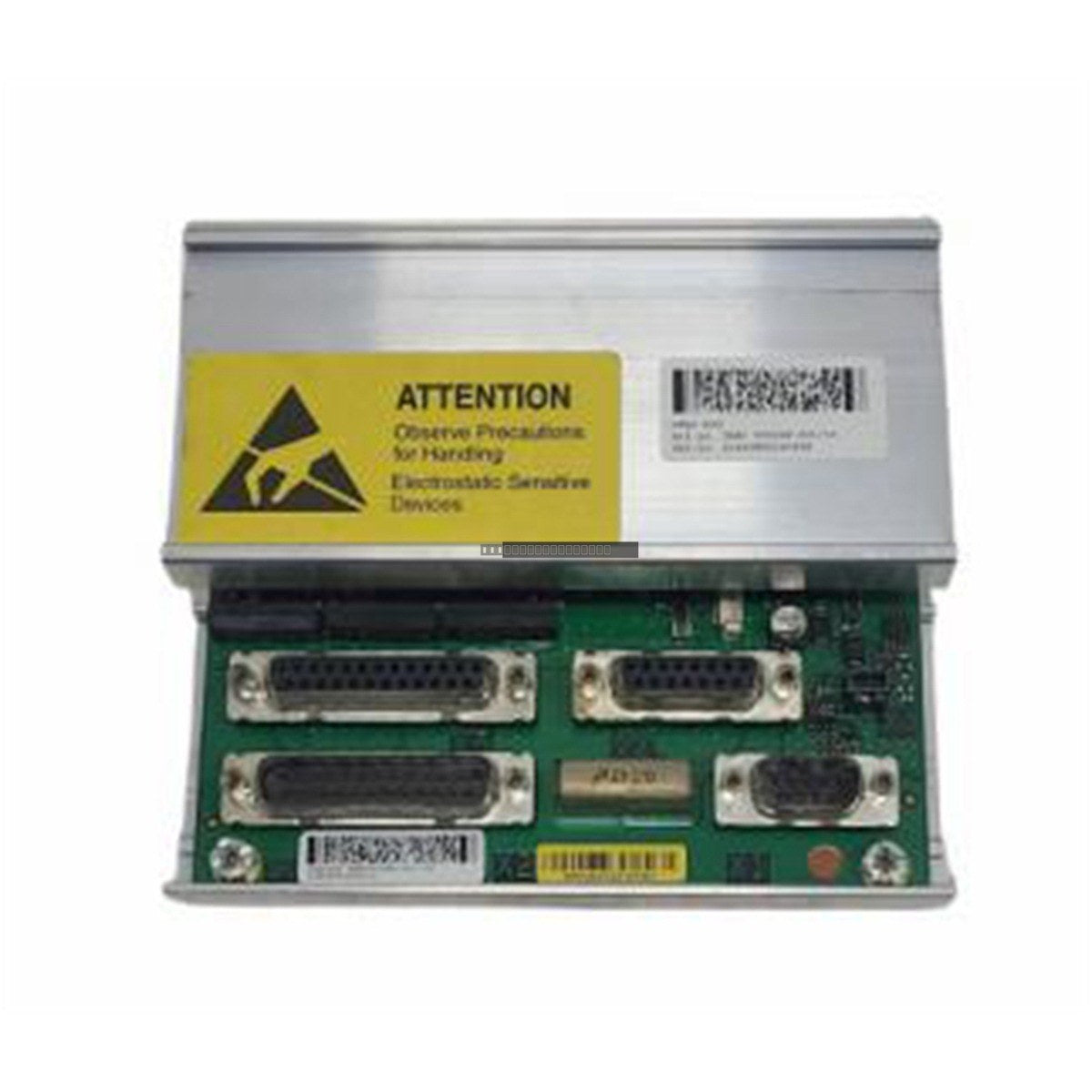

The ABB DSQC 633, identified by the part number 3HAC022286-001, is a high-precision Serial Measurement Unit designed for integration within ABB industrial robotic control systems. This module is engineered to provide accurate measurement and signal processing for serial communication loops, ensuring consistent feedback and operational integrity within the robot controller architecture.
Features
- Official ABB spare part for robotic control systems.
- Designed for high-reliability data acquisition and measurement.
- Compact hardware footprint optimized for standard control cabinet mounting.
- Robust construction to withstand industrial environments.
Applications
This unit is specifically utilized in ABB robotic systems where precise serial measurement is required for motion control and feedback loops. It is a critical component for maintaining the operational accuracy of the robot arm and its associated controller peripherals.
Technical Specifications
| Part Number |
3HAC022286-001 |
| Model |
DSQC 633 |
| Product Type |
Serial Measurement Unit |
| Net Weight |
0.36 kg |
| Customs Tariff Number |
85389091 |
Installation Guidelines
- Ensure the main power supply to the robot controller is isolated before attempting to install or remove the module.
- Use appropriate ESD protection when handling the unit to prevent damage to sensitive internal circuitry.
- Verify that all cable connections are seated firmly and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
- Ensure the module is correctly mounted within the designated slot in the controller rack to facilitate proper heat dissipation and mechanical stability.
FAQ
What is the primary function of the DSQC 633?
The DSQC 633 acts as a serial measurement unit, facilitating accurate data transmission and feedback within the ABB robot control system architecture.
Is this part compatible with all ABB robots?
This module is specific to systems utilizing the DSQC 633 architecture. Please verify your existing controller part number (3HAC022286-001) against your system documentation to ensure compatibility.
