Description
Overview

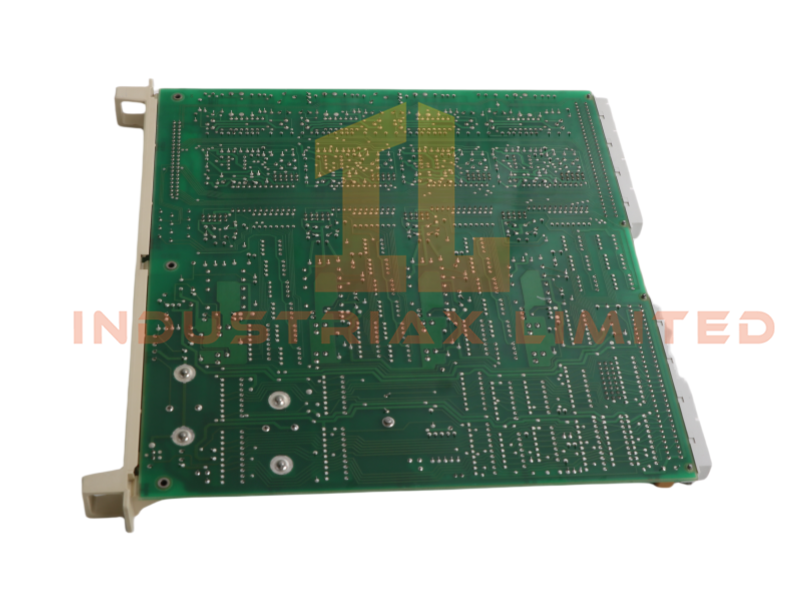

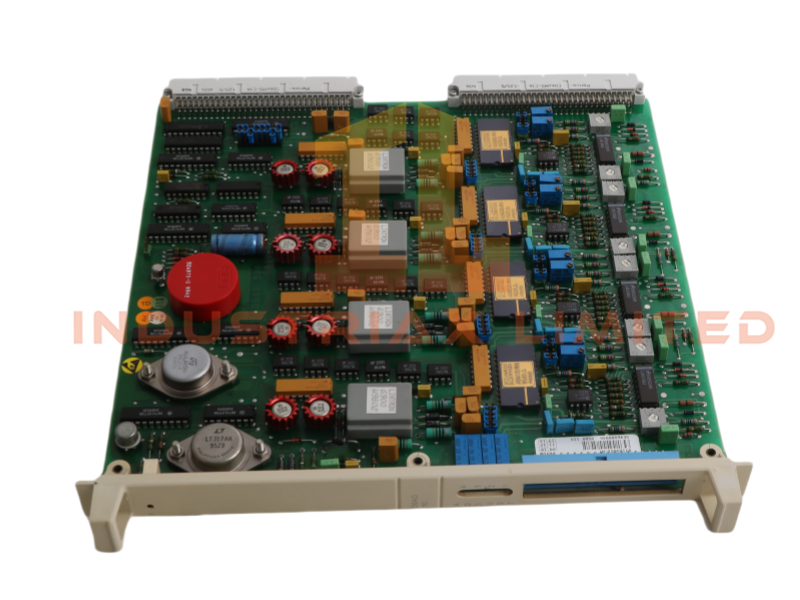

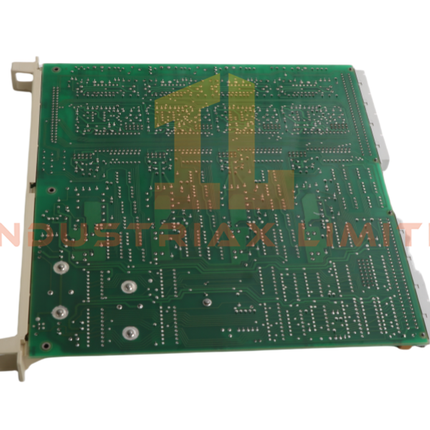

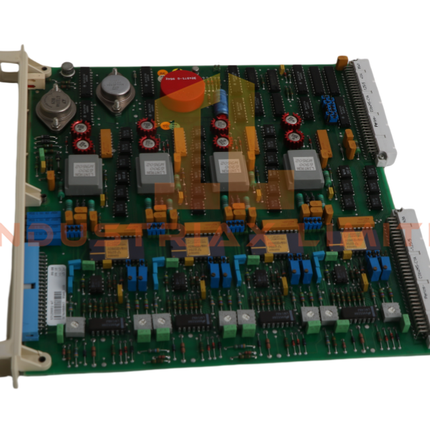

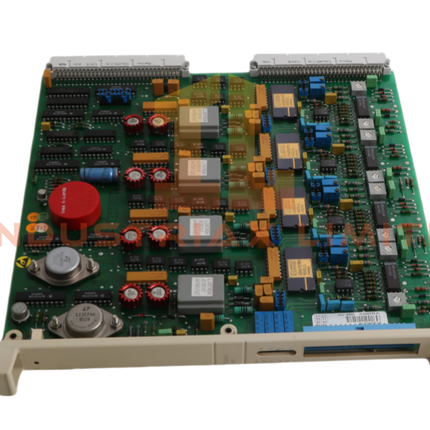

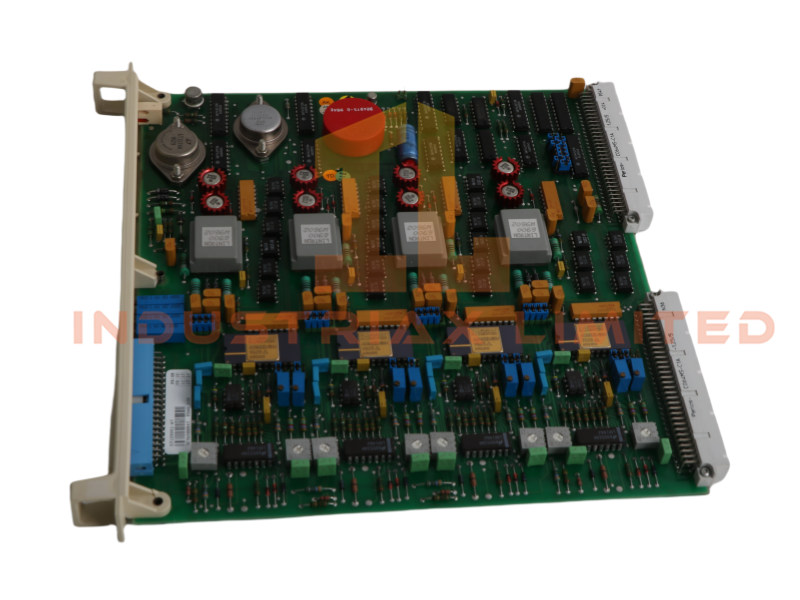

The ABB DSAO 110 57120001-AT Analog Output Module from the S100 I/O series delivers precise analog signal control for industrial automation. ABB engineers designed this module with 8 output channels, ensuring accurate delivery of ±10 V and ±20 mA signals. Its 12-bit resolution enhances precision, making it suitable for demanding process environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
DSAO 110 57120001-AT |
| Module Type |
Analog Output Module |
| Manufacturer |
ABB |
| Product Range |
S100 I/O |
| Condition |
Brand New |
| Dimensions |
2 × 25 × 24.5 cm |
| Weight |
0.5 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
Sweden |
| System Compatibility |
DCS |
| Communication Service |
Ethernet router |
| Status |
Active |
| Output Channels |
8 |
| Signal Range |
±10 V, ±20 mA |
| Resolution |
12-bit |
| Diagnostics |
Self-diagnostic functions |
Design and Performance
ABB constructed the DSAO 110 57120001-AT with durable materials that withstand harsh industrial conditions. Engineers integrated self-diagnostic capabilities to ensure quick fault detection and stable operation. Its modular design simplifies installation and expansion, while high-speed performance supports efficient signal transmission.
Installation and Configuration
The DSAO 110 57120001-AT offers straightforward setup with flexible integration options. Operators configure the module quickly, reducing downtime and enhancing scalability. Its compact dimensions and efficient design make it adaptable to diverse automation systems.
Applications and Compatibility
The ABB DSAO 110 57120001-AT Analog Output Module supports S100 I/O automation systems, making it ideal for manufacturing, energy, and process control industries. Its 8-channel output capability ensures precise control of actuators and field devices, while its Ethernet router interface enhances communication across industrial networks.
