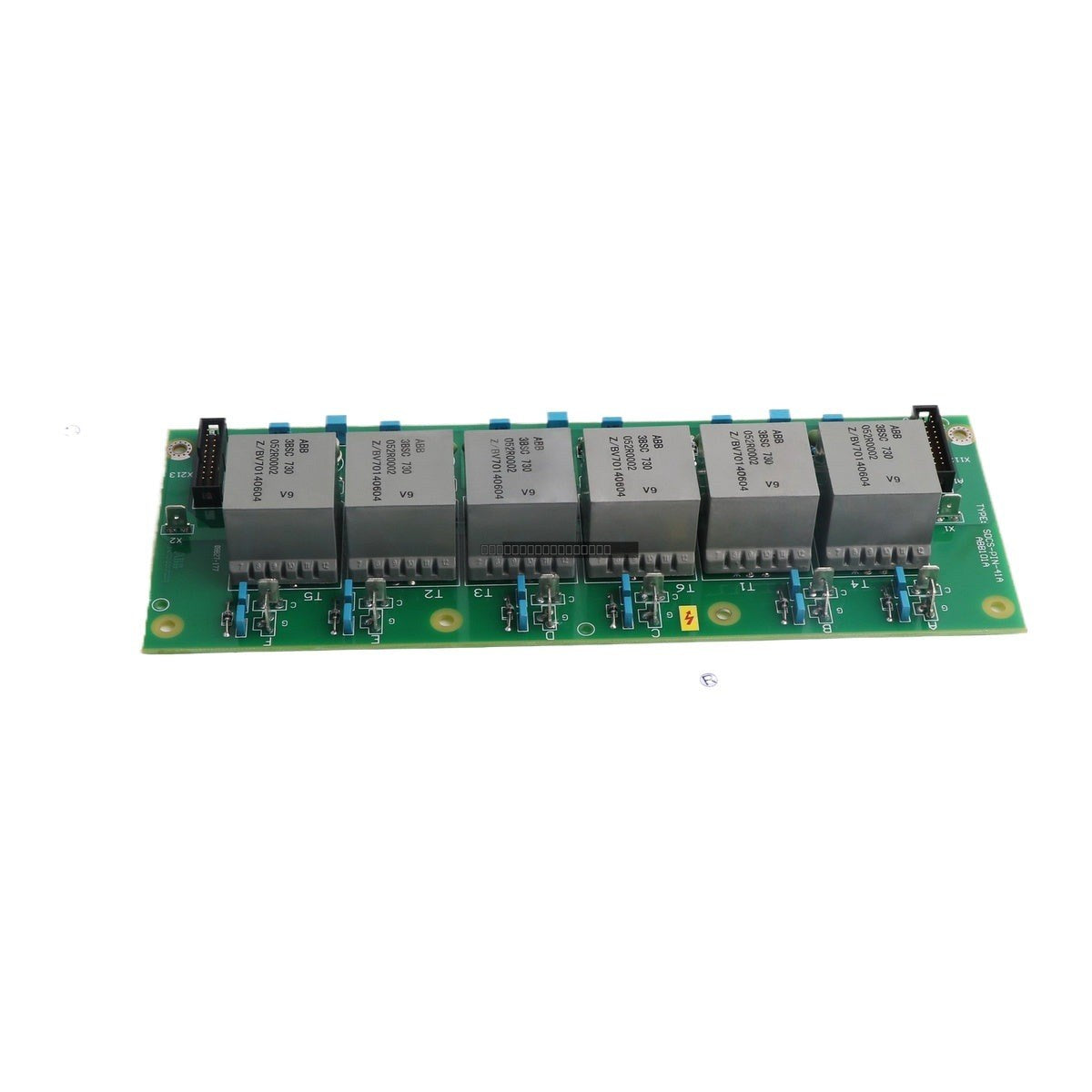

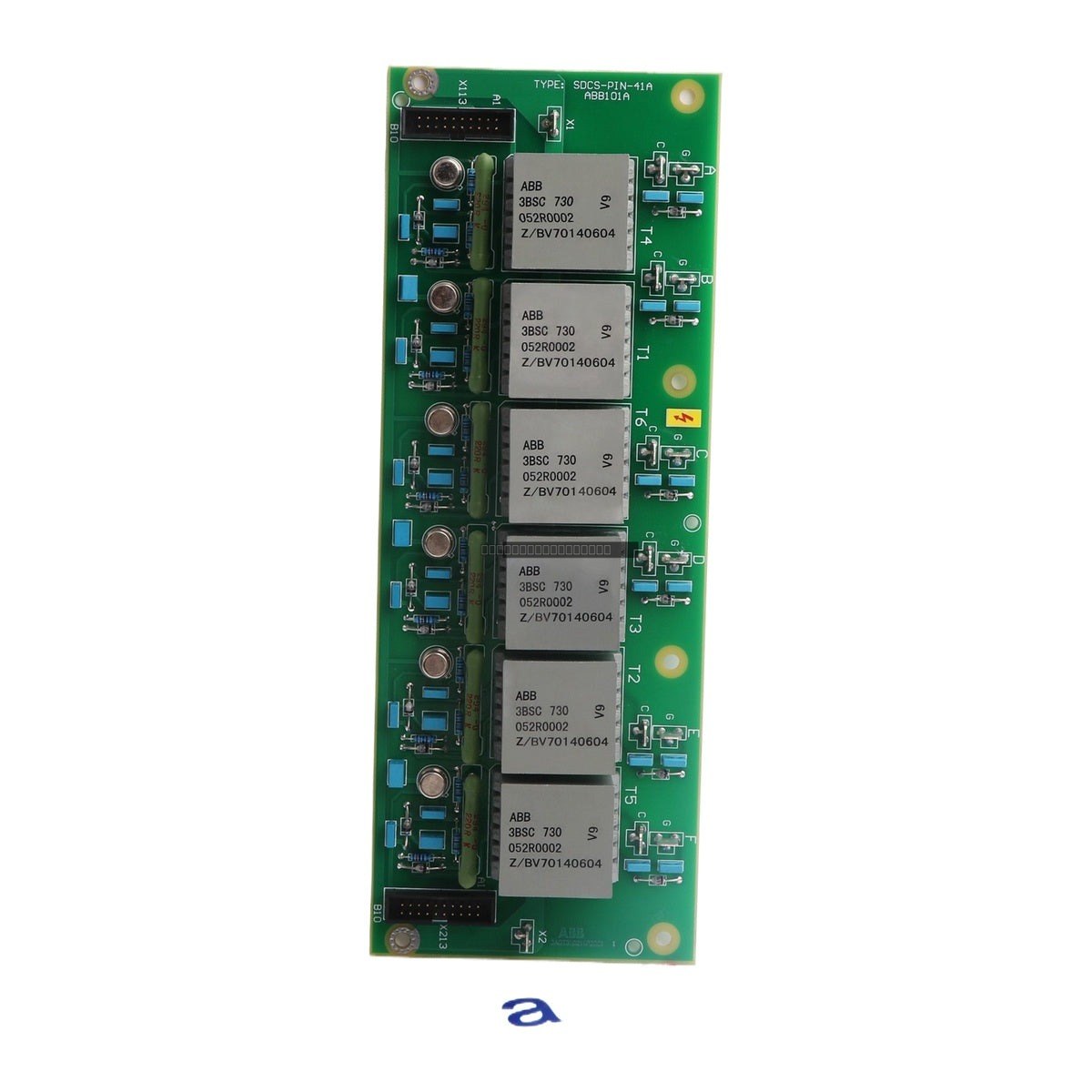

The ABB SDCS-PIN-41A (Order Code: 3BSE004939R1) is a pulse transformer module designed for use within ABB industrial drive systems. This component serves as a critical interface for signal isolation and pulse transmission, ensuring reliable control signal delivery within the drive's power electronics architecture. As a discontinued component, it is primarily utilized for the maintenance and repair of legacy ABB drive installations.
Features
- Original ABB spare part for drive control systems.
- Designed for high-reliability pulse signal isolation.
- Compact PCB-based assembly for integration into drive control racks.
- Engineered for compatibility with specific ABB drive series.
Technical Specifications
| Manufacturer |
ABB |
| Model |
SDCS-PIN-41A |
| Order Code |
3BSE004939R1 |
| Component Type |
Pulse Transformer Module |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the drive system is fully de-energized and locked out before attempting to remove or install the module.
- Handle the PCB using standard ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive components.
- Verify that the module is correctly seated in the designated slot and that all terminal connections are secure before restoring power.
- Inspect surrounding components for signs of heat stress or dust accumulation during the replacement process.
- Ensure that the replacement module matches the exact order code (3BSE004939R1) to maintain system integrity.
FAQ
Is this module compatible with all ABB drives?
No, the SDCS-PIN-41A is designed for specific ABB drive models. Please verify the part number on your existing module against the 3BSE004939R1 order code before installation.
Is this part still in production?
No, this module has been discontinued by the manufacturer. We provide these units as spare parts for the maintenance of existing legacy systems.
