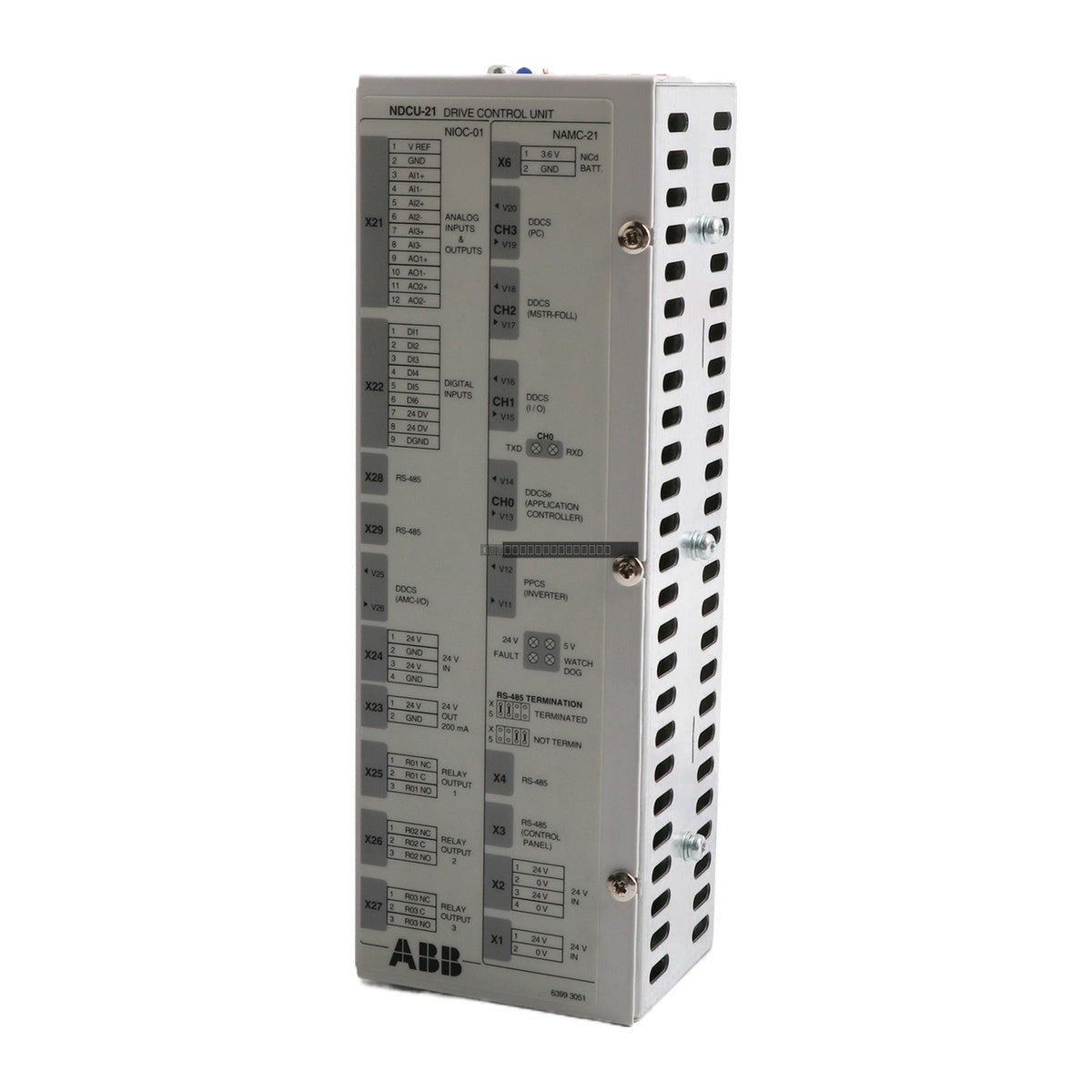

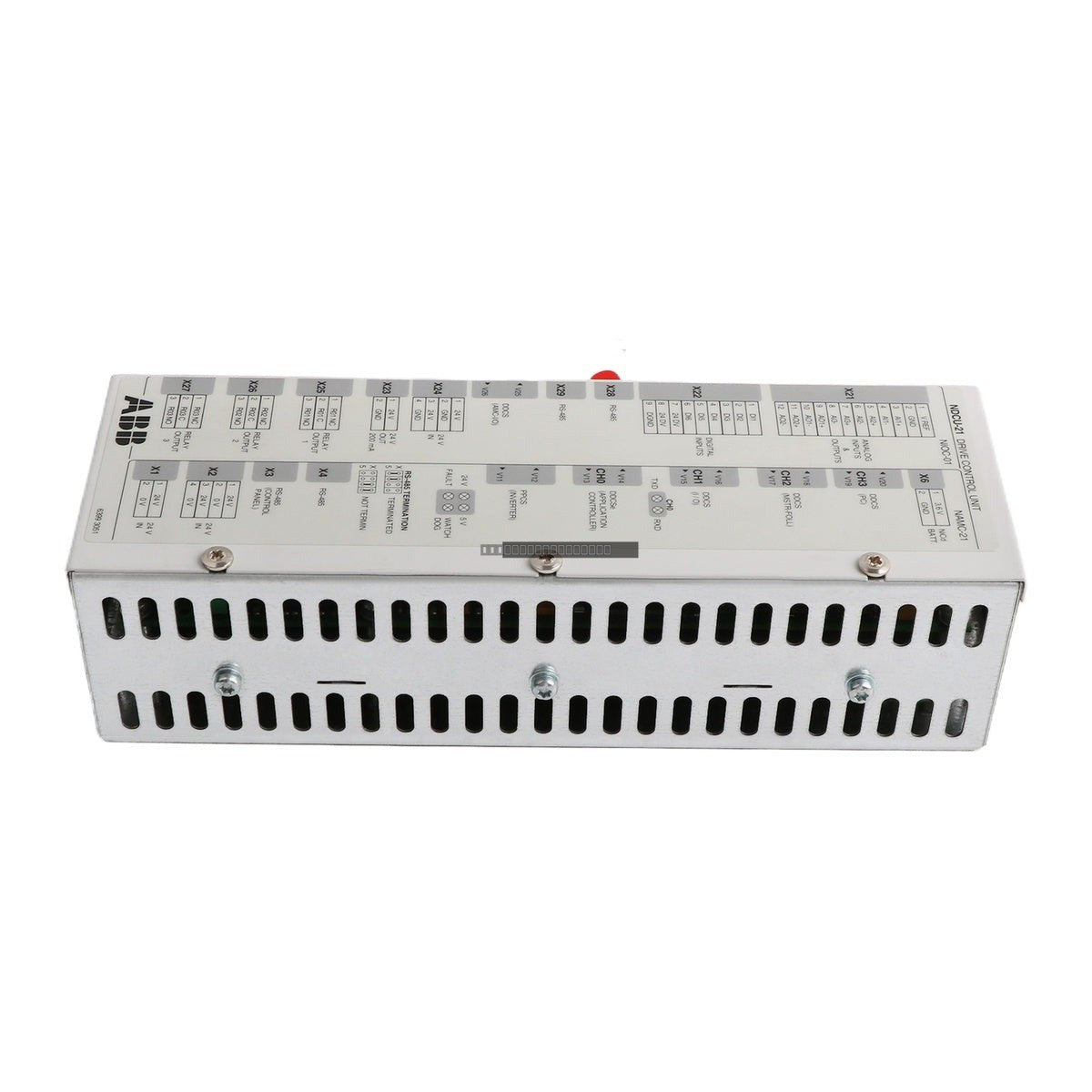

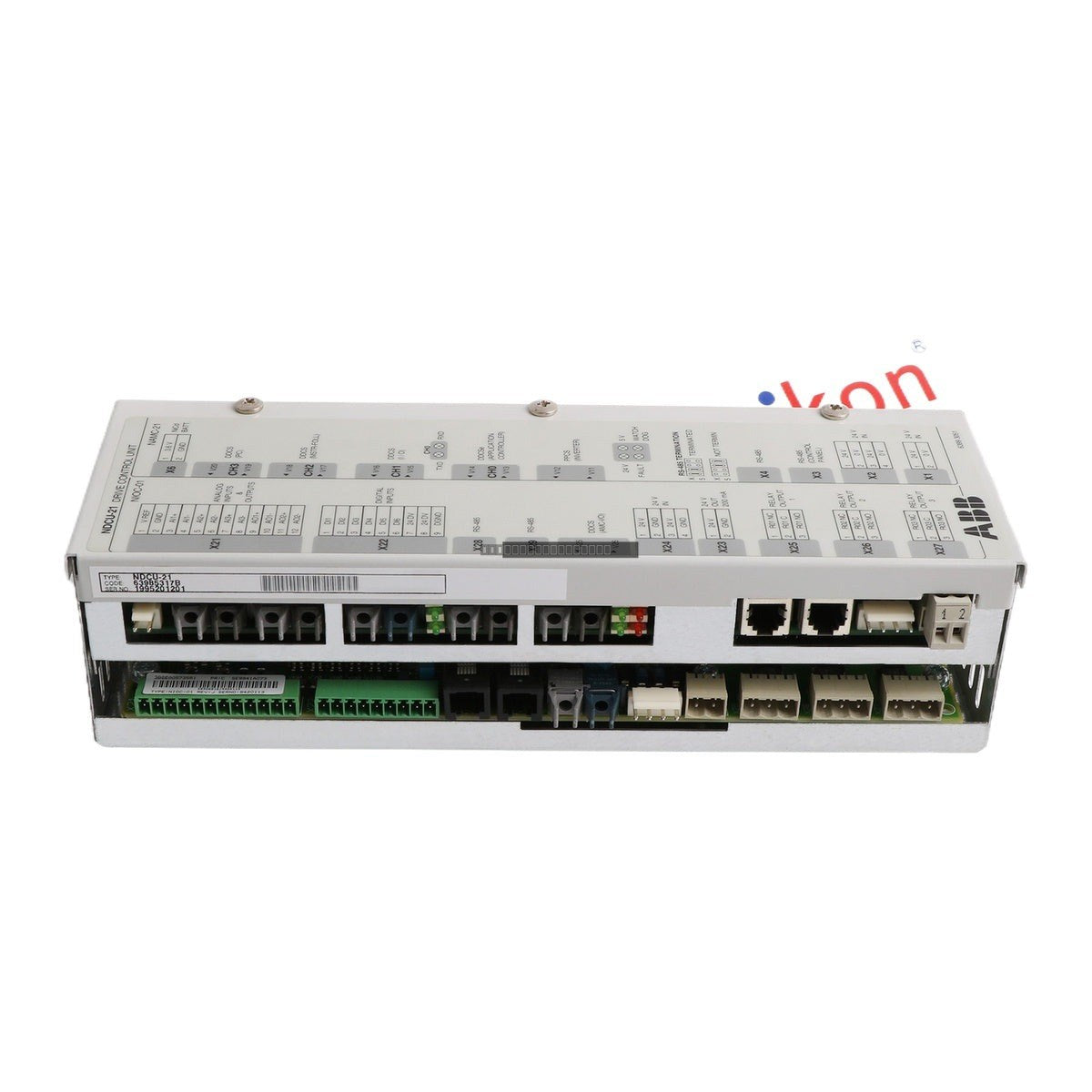

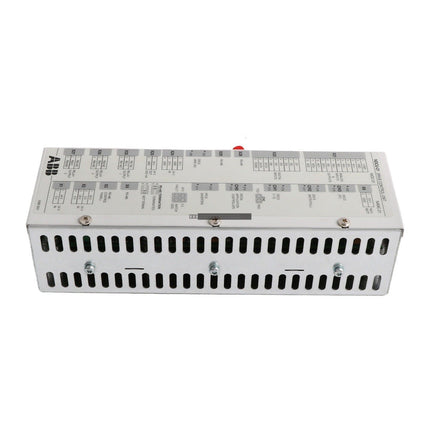

The ABB NDCU-21 (63985317B) is a dedicated Drive Control Unit designed for integration within ABB inverter drive systems. This unit serves as the central processing and control interface for managing drive operations, monitoring system status, and executing control logic. Please note that this specific model has been discontinued by the manufacturer.
Features
- Centralized control processing for ABB inverter drive applications
- Integrated 32 MB SDRAM for operational memory
- 512 kB FRAM for reliable data backup
- Equipped with 6 digital inputs rated for 24 V DC operation
- Designed for robust performance in industrial drive environments
Technical Specifications
| Product Model |
NDCU-21 63985317B |
| Manufacturer |
ABB |
| Control Supply Voltage |
24 V DC |
| Current Draw |
0.7 A (typical) |
| Digital Inputs |
6 x 24 V DC |
| Memory (RAM) |
32 MB SDRAM |
| Memory (Backup) |
512 kB FRAM |
| Isolation Rating |
500 V DC |
| Operating Temperature |
-10 degC to +55 degC |
| Storage Temperature |
-40 degC to +85 degC |
Installation Guidelines
- Ensure the drive system is fully powered down and locked out before installing or removing the NDCU-21 unit.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Verify that the 24 V DC control supply voltage is stable and within the specified operating range before energizing.
- Ensure proper seating of the unit within the drive rack to maintain reliable electrical connections.
- Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
- Maintain adequate ventilation around the drive enclosure to ensure the ambient temperature remains within the specified -10 degC to +55 degC range.
FAQ
Is the NDCU-21 still in production?
No, the ABB NDCU-21 63985317B has been discontinued by the manufacturer. It is typically sourced as a spare part for legacy drive systems.
What is the primary function of this unit?
The NDCU-21 acts as the control brain for the inverter drive, handling digital I/O processing and executing the control algorithms required for motor and drive management.
