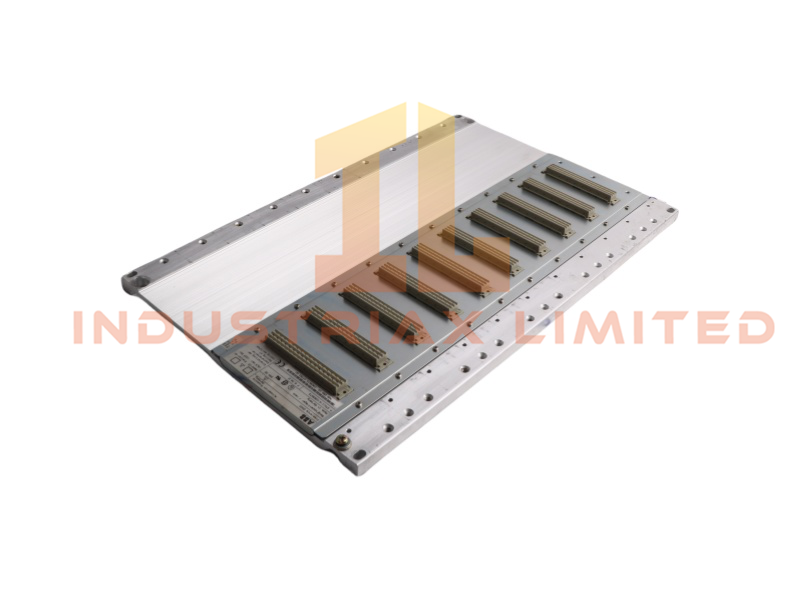

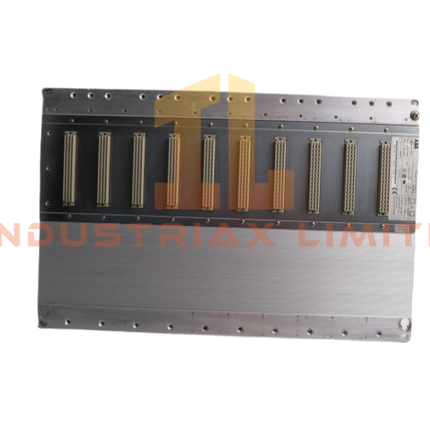

The DRA02 card rack is a structural mounting frame designed for ABB Freelance Distributed Control System installations. It provides a stable, organized platform for housing multiple I/O modules, ensuring reliable electrical connections and streamlined system integration within process‑automation environments.
Technical Specifications
General Information
-
Model: DRA02
-
Manufacturer: ABB
-
Product Type: Card Rack / I/O Mounting Frame
-
Product Range: Freelance Distributed Control System
-
System Compatibility: DCS
-
Operating Status: Active
Mechanical Data
-
Dimensions: 31.1 × 2.7 × 48.3 cm
-
Weight: 3.5 kg
-
Rigid metal frame for long‑term structural stability
-
Designed for cabinet or panel installation
-
Supports modular expansion of I/O assemblies
Functional Characteristics
-
Provides mechanical support and alignment for Freelance I/O modules
-
Ensures proper spacing, cooling, and cable routing
-
High‑quality construction for vibration resistance
-
Suitable for continuous operation in industrial environments
-
Designed to meet typical industrial mounting standards
Environmental Ratings
-
Built for harsh industrial conditions
-
Resistant to mechanical stress and temperature variation
-
Suitable for process plants, utilities, and manufacturing facilities
Integration & Compatibility
-
Fully compatible with ABB Freelance I/O modules and communication units
-
Supports scalable system architecture for small to large installations
-
Simplifies wiring, maintenance, and module replacement
Maintenance & Serviceability
-
Open‑frame design for easy access to modules
-
Reduces downtime during system expansion or troubleshooting
-
Supported by ABB documentation and engineering tools
Application Scenarios
-
Freelance DCS I/O module mounting
-
Control cabinet assembly for process automation
-
System expansions requiring additional I/O capacity
-
Industrial environments needing organized, secure module installation
FAQ
Q: Which modules can be installed in the DRA02 rack? A: It is designed for ABB Freelance I/O modules and related communication units.
Q: Does the rack include power distribution? A: No, it serves as a mechanical mounting frame; power distribution depends on the installed modules.
