Description
Overview

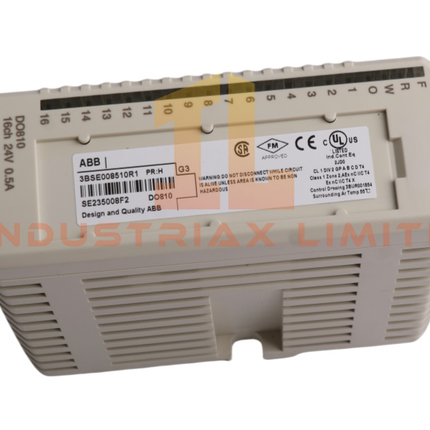

The ABB DO810 3BSE008510R1 Digital Output Module delivers precise control for S800 I/O systems. Engineers rely on its 16-channel design, advanced protection features, and compact build to ensure reliable performance in demanding automation environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
DO810 3BSE008510R1 |
| Module Type |
Digital Output Module |
| Manufacturer |
ABB |
| Condition |
Brand New |
| Range of Product |
S800 I/O |
| Dimensions |
4.5 × 11 × 0.15 cm |
| Weight |
0.16 kg |
| HS Code |
8537101190 |
| System |
DCS |
| Communication Service |
Ethernet Router |
| Product Origin |
Sweden |
| MOQ |
1 |
| Lead Time |
In Stock |
| Status |
Active |
Functional Description
The ABB DO810 3BSE008510R1 operates with an output voltage range of 10–30V DC and supports 0.5A continuous current per channel. Engineers benefit from its ability to handle inductive loads while maintaining stable operation in process control systems. Two isolated groups of eight channels each include voltage supervision, enabling quick fault detection and diagnostics via ModuleBus.
Design and Build
The ABB DO810 3BSE008510R1 measures 4.5x11x0.15cm and weighs 0.16kg, making it compact and easy to install. Each channel integrates EMC filters, inductive load suppression, and optical isolation barriers. LED indicators provide real-time visibility of output status, while current-limiting components protect against overload conditions.
Applications and Compatibility
The ABB DO810 3BSE008510R1 Digital Output Module integrates seamlessly into S800 I/O systems. Engineers deploy it in manufacturing, energy, and process industries requiring reliable digital output control. Its rugged construction and diagnostic features make it ideal for critical automation environments.
Key Benefits
-
Sixteen digital output channels with 0.5A continuous current capacity.
-
Advanced protection against short-circuit, overvoltage, and thermal overload.
-
LED indicators simplify monitoring and troubleshooting.
-
Compact 0.16kg design supports space-constrained installations.
