Description
Overview

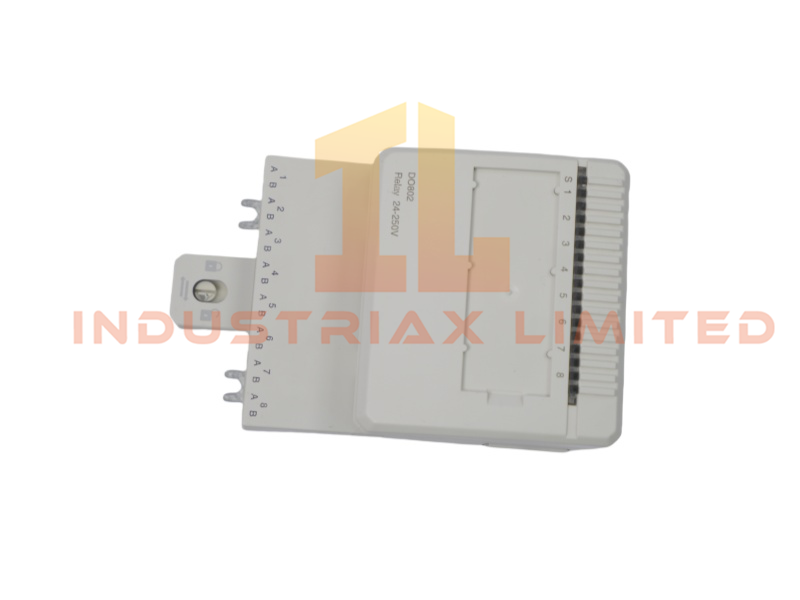

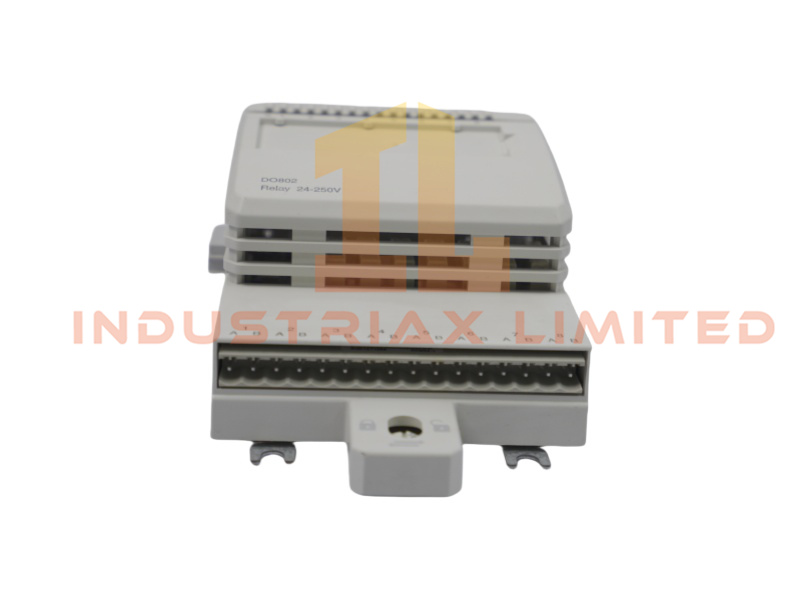

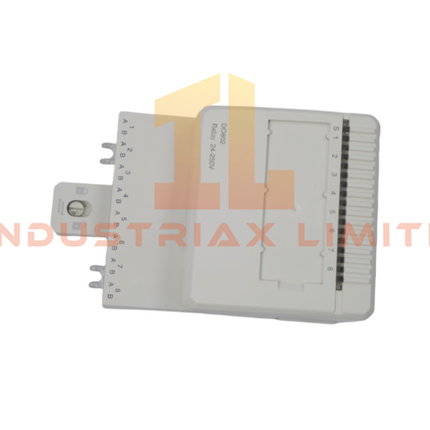

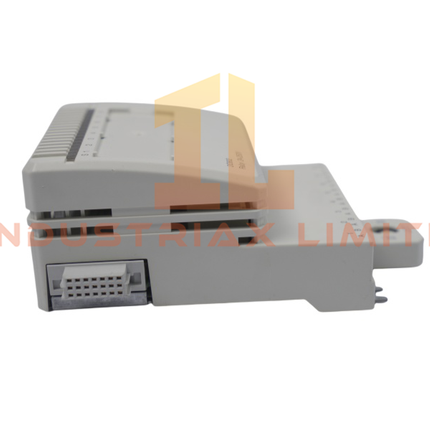

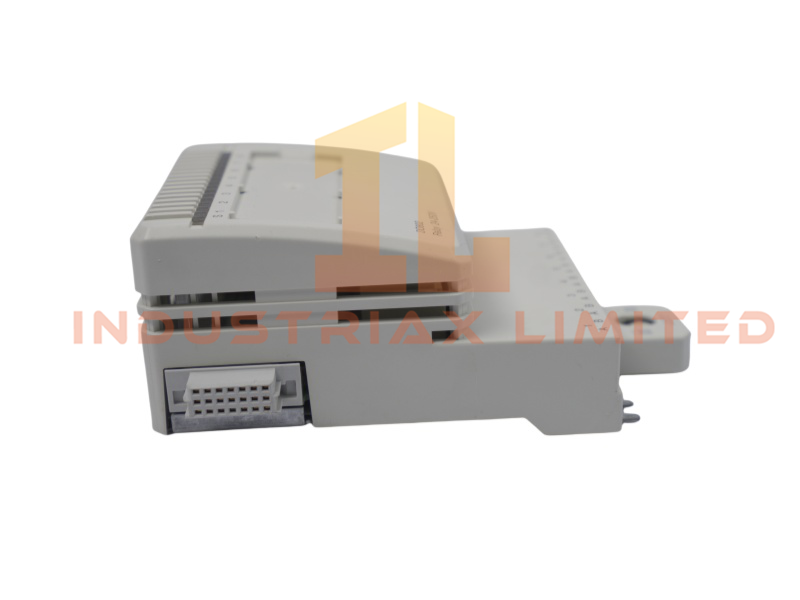

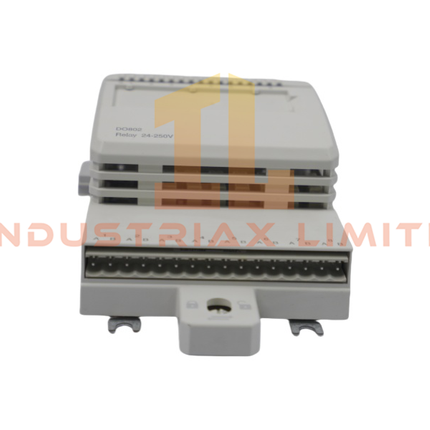

The DO802 / 3BSE022364R1 digital output relay module is part of ABB’s S800 I/O family, designed to provide reliable relay‑based switching for distributed control systems. Its compact form factor, robust isolation, and stable output characteristics make it suitable for a wide range of industrial automation tasks where dependable actuation is required.
Technical Specifications
General Information
-
Model: DO802 / 3BSE022364R1
-
Manufacturer: ABB
-
Product Type: Digital Output Relay Module
-
Product Range: S800 I/O
-
System Compatibility: DCS
-
Operating Status: Active
Mechanical Data
-
Dimensions: 13.5 × 9.2 × 5.8 cm
-
Weight: 0.24 kg
-
Modular housing for DIN‑rail mounting
-
Designed for easy replacement within S800 I/O clusters
Electrical & Functional Characteristics
-
Relay output channels: 8
-
Output type: Potential‑free relay contacts
-
High isolation between field and system sides
-
Fast switching response suitable for real‑time control
-
Supports inductive and resistive loads
-
Integrated protection for overload and transient events
Environmental Ratings
-
Operating temperature range suitable for industrial control cabinets
-
Resistant to electrical noise and voltage fluctuations
-
Designed for long‑term operation in demanding environments
Integration & Connectivity
-
Fully compatible with ABB S800 I/O communication interfaces
-
Supports distributed mounting for flexible system architecture
-
Clear channel labeling for simplified wiring and maintenance
Diagnostics & Maintenance
-
LED indicators for channel status and module health
-
Built‑in diagnostics for fault identification
-
Hot‑swappable within S800 I/O systems (when system design permits)
-
Minimal maintenance requirements due to relay durability
Application Scenarios
-
Actuator control in process automation
-
Switching solenoids, contactors, and interposing relays
-
Distributed I/O expansion in ABB S800‑based DCS installations
-
Industrial environments requiring isolated relay outputs
FAQ
Q: Does the DO802 / 3BSE022364R1 support mixed load types? A: Yes, the relay outputs can handle both inductive and resistive loads within rated limits.
Q: Can this module be replaced without shutting down the entire system? A: In many S800 I/O configurations, modules can be hot‑swapped, but this depends on the specific installation.
Q: What is the isolation level of the relay channels? A: The module provides high galvanic isolation between field wiring and the control system to ensure safe operation.
