Description
Overview

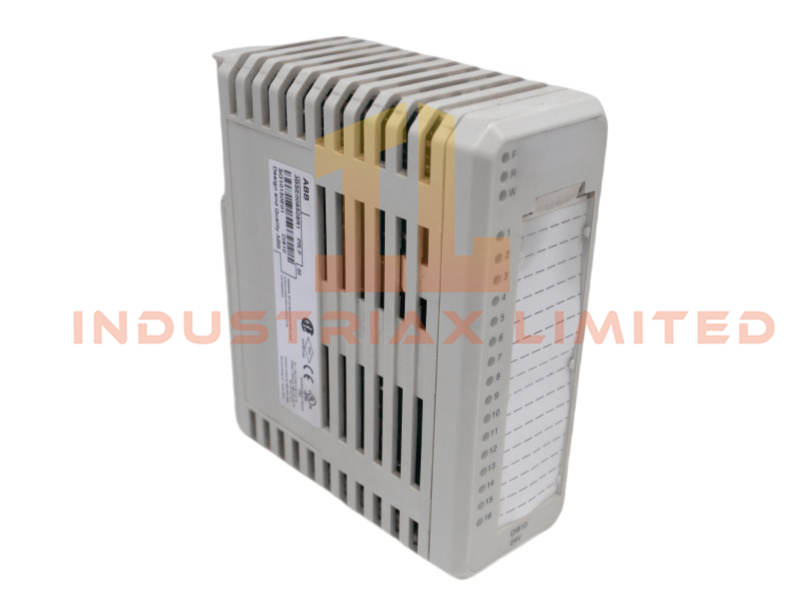

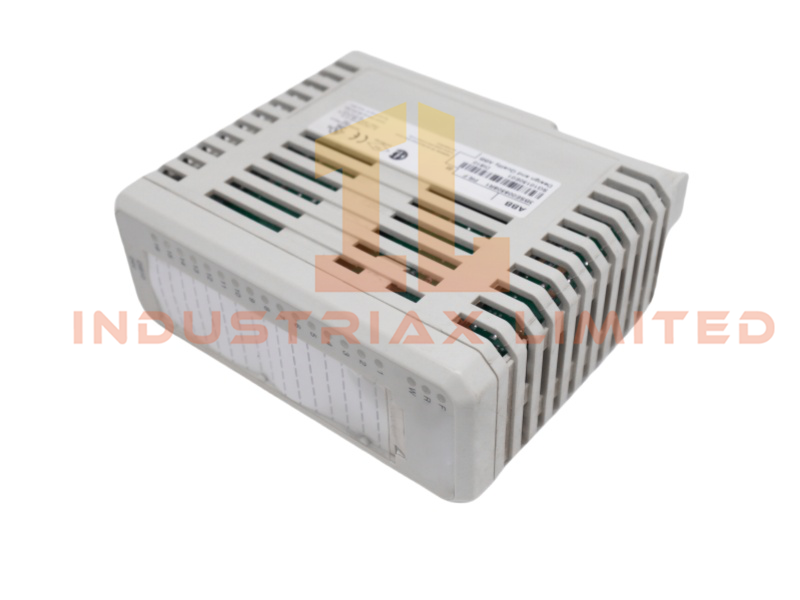

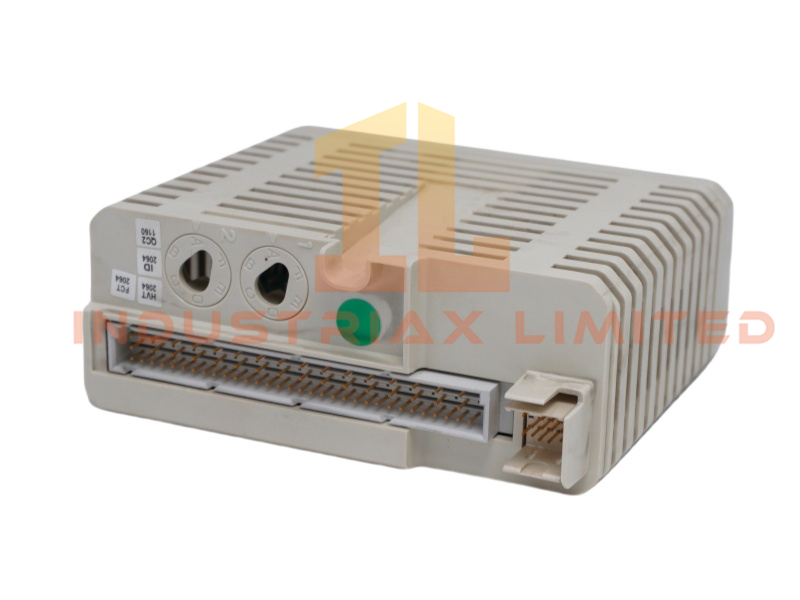

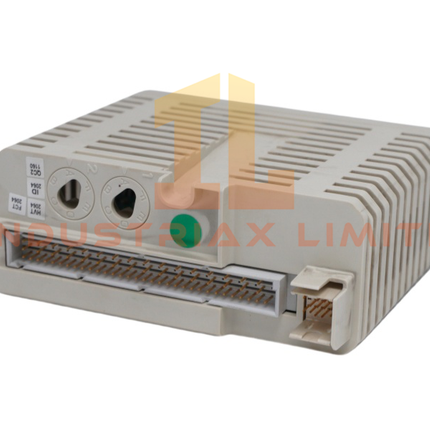

The ABB DI810 3BSE008508R1 Digital Input Module delivers reliable signal monitoring for S800 I/O systems. Engineers use this 16-channel module to ensure precise digital input acquisition in demanding automation environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
DI810 3BSE008508R1 |
| Module Type |
Digital Input Module |
| Manufacturer |
ABB |
| Condition |
Brand New |
| Range of Product |
S800 I/O |
| Dimensions |
4.5 × 10.5 × 12 cm |
| Weight |
0.16 kg |
| HS Code |
8537101190 |
| System |
DCS |
| Communication Service |
Ethernet Router |
| Product Origin |
Sweden |
| MOQ |
1 |
| Lead Time |
In Stock |
| Status |
Active |
Functional Description
The ABB DI810 3BSE008508R1 operates with an input voltage range of 18–30V DC and consumes 6mA at 24V. Engineers benefit from its advanced isolation design, which divides 16 inputs into two groups of eight channels. Each group includes voltage supervision to monitor process integrity and generate error signals through the ModuleBus.
Design and Build
The ABB DI810 3BSE008508R1 measures 4.5x10.5x12cm and weighs only 0.16kg, making it compact and easy to install. LED indicators provide instant feedback for each input state, simplifying troubleshooting. Current limiting, EMC protection, and optical isolation barriers enhance durability against electrical noise and voltage fluctuations.
Applications and Compatibility
The ABB DI810 3BSE008508R1 integrates seamlessly into S800 I/O systems. Engineers deploy it in power generation, oil and gas, and manufacturing industries where precise digital monitoring is critical. Its diagnostic features and robust construction ensure long-term reliability in harsh environments.
Key Benefits
-
Sixteen digital input channels with advanced isolation design.
-
Voltage supervision ensures reliable process monitoring.
-
LED indicators simplify diagnostics and maintenance.
-
Compact 0.16kg build supports space-constrained installations.
