Description

Product Overview

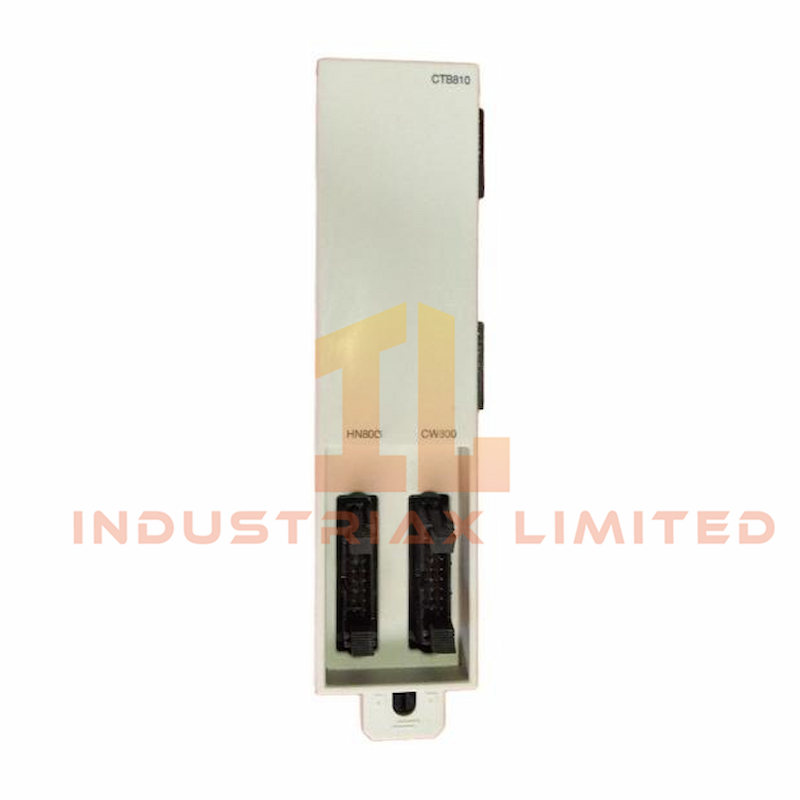

The ABB CTB810 Communication Terminal Board is a left-side interface module designed for the MB810 mounting base, enabling seamless integration of HPC800 controllers within the Symphony Plus Control System. It provides reliable connections for both HN800 and CW800 modules, supporting stable signal transmission and system coordination.

Technical Specifications

Attribute	Detail
Manufacturer	ABB
Part Number	CTB810
Product Catalog	Symphony Plus Control System
Description	Communication Terminal Board
Input Voltage	24 VDC
Signal Current Range	4–20 mA
Dimensions (W×H×D)	243.84 mm × 73.66 mm × 170.18 mm
Weight	0.88 kg
Mounting Compatibility	MB810 Module Base (Left Side)
Supported Modules	HN800, CW800

Applications & Compatibility

The CTB810 is engineered for ABB Symphony Plus systems, offering robust connectivity for HN800 and CW800 modules in process control, power generation, and industrial automation environments. Its left-side mounting orientation complements the CTB811 right-side variant, enabling full controller integration with symmetrical terminal access
