Description
Overview

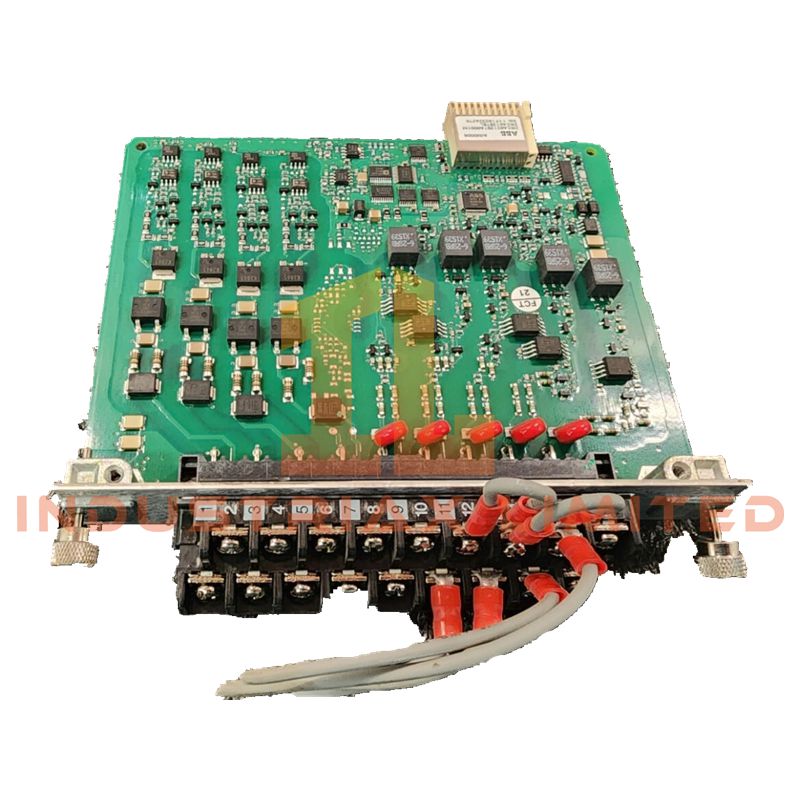

The AIM0006 2RCA021397A0001K from ABB is an analog and binary input interface module designed for voltage and current signal acquisition in industrial control and power management systems. This module supports multiple analog signal formats and integrates with ABB automation platforms including AC500 PLC, Freelance DCS, Advant Controller systems, and UNITROL excitation applications.
Engineered for stable signal processing and high electrical isolation, the module is suitable for demanding process automation, utility, and power distribution environments.
Key Technical Features
• Multi-function AI/BI input module for voltage sensing and monitoring
• Compatible with current and voltage analog signals
• High-resolution 16-bit analog conversion
• Reinforced electrical isolation for improved EMC performance
• DIN rail installation design for cabinet integration
• Designed for continuous industrial operation in harsh environments
• Supports reclosing and CT/VT monitoring configurations
• Suitable for excitation control and process instrumentation systems
Technical Specifications
| Parameter |
Specification |
| Brand |
ABB |
| Model |
AIM0006 |
| Order Number |
2RCA021397A0001K |
| Product Type |
AI/BI Module (Voltage Sensor) |
| Analog Inputs |
8 Differential AI Channels |
| Supported Signals |
4–20 mA, 0–20 mA, 0–10 V, ±10 V |
| Resolution |
16-bit |
| Current Accuracy |
±0.1% Full Scale |
| Voltage Accuracy |
±0.15% Full Scale |
| Sampling Speed |
10 to 100 samples/sec per channel |
| Operating Voltage |
24 VDC ±10% |
| Isolation (Channel to Channel) |
2.5 kVrms |
| Isolation (Channel to Bus) |
5 kVrms |
| Power Consumption |
3.5 W to 8 W |
| Protection Class |
IP20 |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Mounting Method |
DIN Rail |
| Weight |
0.40 kg |
Input Configuration
The module supports several CT and VT combinations commonly used in protection and monitoring systems:
• 3 CT + Ground CT + 5 VT + Reclosing
• 3 CT + SEF/HIZ CT + 5 VT + Reclosing
• Slot X130 supports 5 VT + 4 Binary Inputs
System Compatibility
The ABB AIM0006 module is compatible with:
• ABB AC500 PLC series
• ABB Freelance distributed control systems
• ABB Advant Controller platforms
• UNITROL 1010 and UNITROL 1020 excitation systems
Application Areas
Typical industrial applications include:
• Power plant automation
• Generator excitation systems
• Electrical protection panels
• Utility substations
• Process monitoring systems
• Analog signal acquisition cabinets
• Industrial energy management systems
FAQ
What signal types can the AIM0006 process?
The module accepts both current and voltage analog signals including 4–20 mA, 0–20 mA, 0–10 V, and ±10 V inputs.
Is the AIM0006 suitable for electrical substation applications?
Yes. Its high isolation ratings and CT/VT support make it suitable for utility and power distribution environments.
Does the module support ABB control systems only?
The module is optimized for ABB platforms such as AC500, Freelance, and Advant Controller systems, ensuring full compatibility within ABB architectures.
