Description
Overview

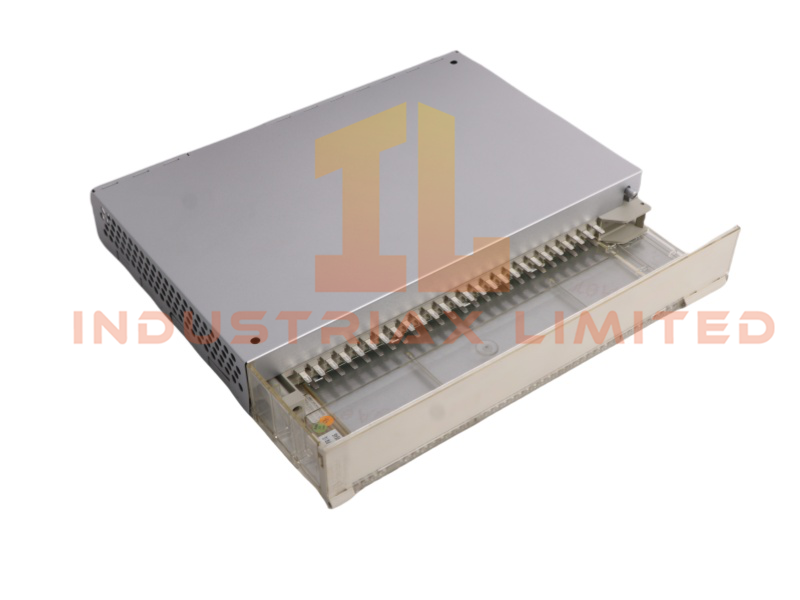

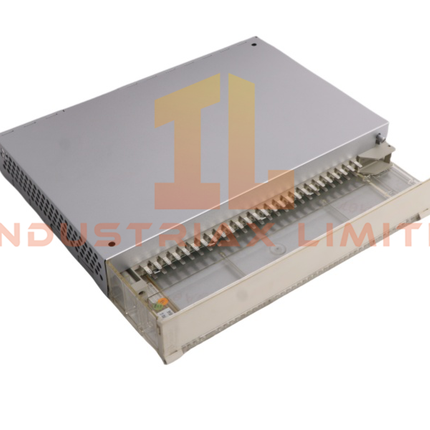

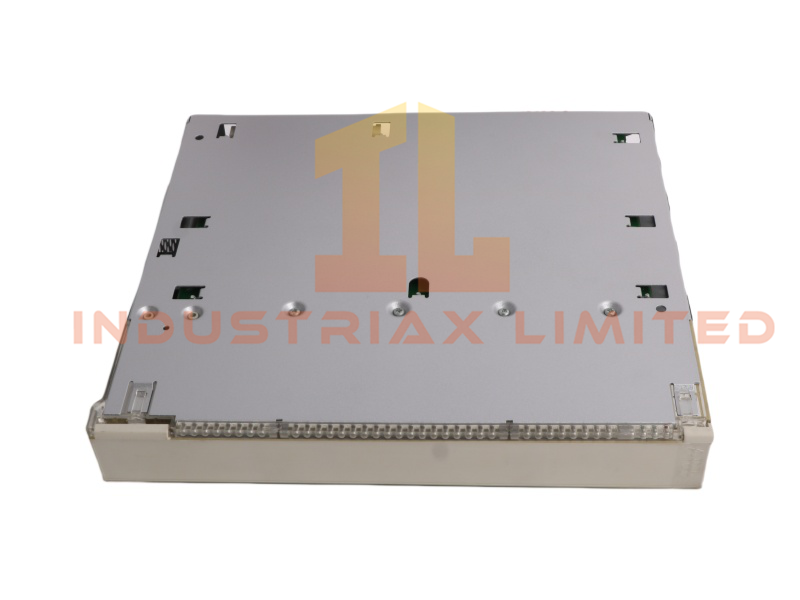

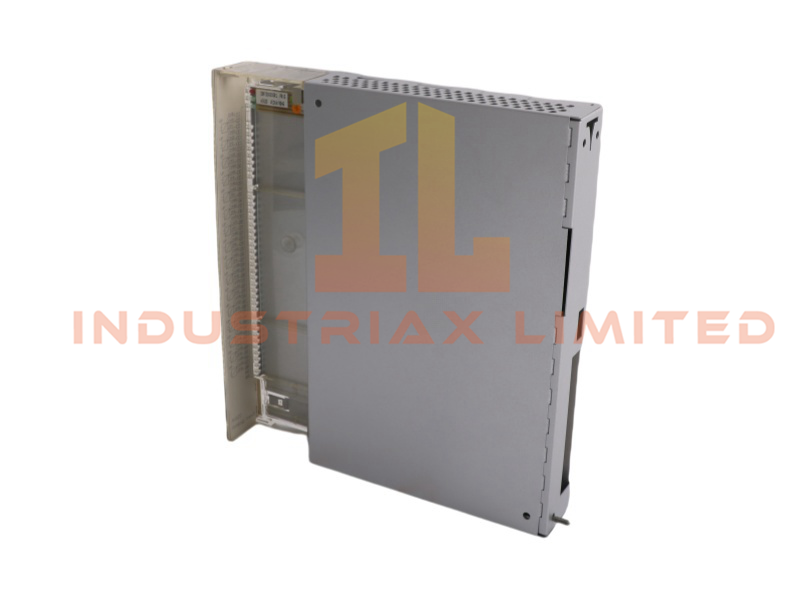

The ABB AI620 3BHT300005R1 Analog Input Module from the S600 I/O series delivers precise data acquisition and reliable performance for industrial automation. ABB designed this module with compact 4x26.1x27 cm dimensions and a 1.24 kg weight, ensuring efficient installation in modern DCS systems.
Technical Specifications
| Parameter |
Value |
| Model Number |
AI620 3BHT300005R1 |
| Module Type |
Analog Input Module |
| Manufacturer |
ABB |
| Product Range |
S600 I/O |
| System Compatibility |
DCS |
| Dimensions |
4x26.1x27 cm |
| Weight |
1.24 kg |
| Channel Capacity |
16 channels |
| Resolution |
12-bit |
| Input Range |
-10V to +10V |
| Isolation Voltage |
50V |
| Operating Temperature |
-25°C to +85°C |
| Communication Service |
Ethernet router |
| HS Code |
8537101190 |
| Origin |
Sweden |
| Condition |
Brand New |
| MOQ |
1 |
| Status |
Active |
Functional Description
The ABB AI620 3BHT300005R1 supports 16 channels, enabling simultaneous connection of multiple sensors to reduce wiring complexity. Engineers benefit from its 12-bit resolution, which ensures accurate measurement and processing of analog signals.
Its wide input range of -10V to +10V provides flexibility for diverse sensor integration, while the 50V isolation voltage protects against electrical interference. The AI620 3BHT300005R1 operates reliably across temperatures from -25°C to +85°C, making it suitable for both cold storage and high-temperature industrial processes.
Compact design and lightweight construction simplify installation and maintenance, while durable materials guarantee long-term performance.
