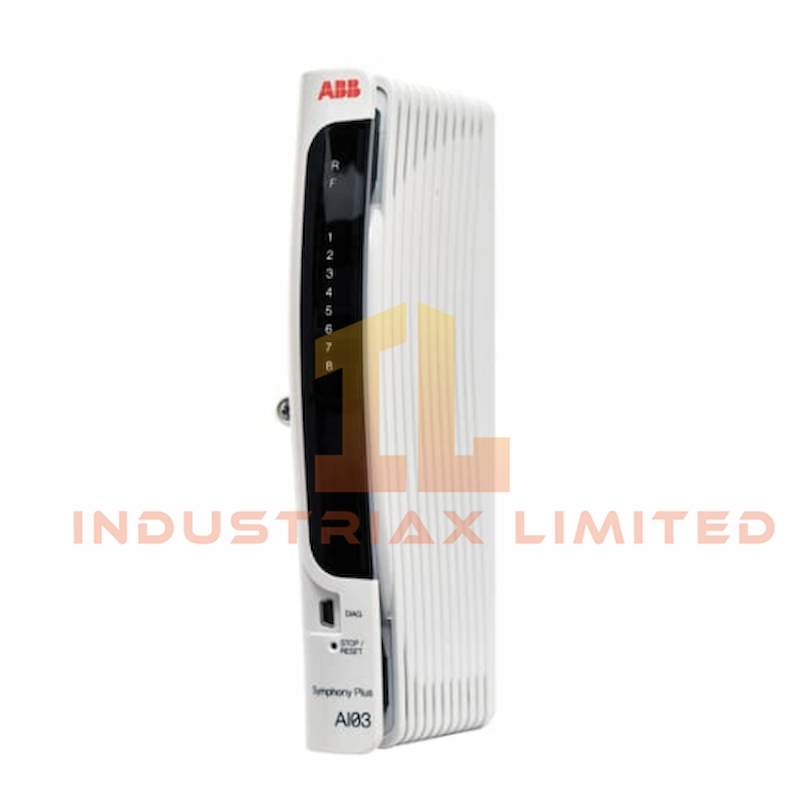

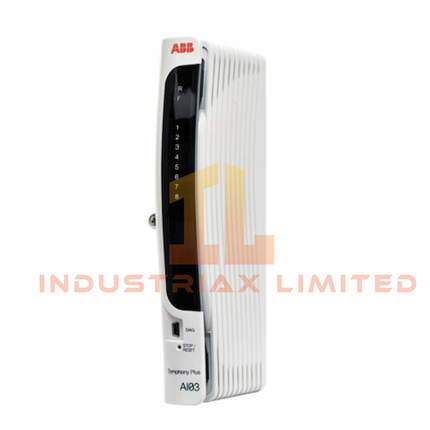

ABB AI03 Analog Input Module

BrandABB
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Product Overview The ABB AI03 Analog Input Module is a precision RTD processor designed for the SD Series I/O platform.... Read more

SKU: AI03
Country of origin: Sweden

100% Original and Authentic

Do you need a large stock? Contact us.

100% Brand New，Ready to ship

Do you need a large stock? Contact us.

Support Refund,7X24h Service

Support Refund,7X24h Service , Contact us.

Call us: +86 135 995 07613

Available on working days between 9:00 am to 6:00 pm

Email us: sales2@industriaxplc.com

Available 24/7 for inquiries and support

Description

Product Overview

The ABB AI03 Analog Input Module is a precision RTD processor designed for the SD Series I/O platform. It supports eight independently configurable channels, each capable of handling 2-wire, 3-wire, or 4-wire RTD temperature inputs. With automatic calibration and compensation, the AI03 ensures accurate and reliable temperature measurement across diverse industrial environments.

Technical Specifications

Attribute	Detail
Manufacturer	ABB
Model	AI03
Series	SD Series I/O Modules
Function	Analog Input Module for RTD Signals
Power Requirements	24 VDC ±12%, 68 mA typical, 76 mA max
Input Channels	8 independently configured RTD channels
RTD Types Supported	2-wire, 3-wire, 4-wire RTD
	100 Ω platinum (US lab, US industry, European)
	120 Ω nickel, Chinese 53 Ω copper
Ambient Temperature	-20 °C to 70 °C (-4 °F to 158 °F)
Compliance Standards	IEC/EN 60068-2-1, IEC/EN 60068-2-2
Service Port	1 mini-USB
Dimensions (with base)	51 mm × 190 mm × 138 mm (2 in × 7.48 in × 5.43 in)
Weight	0.4 kg

Key Features

Multi-RTD Compatibility: Supports a wide range of RTD standards for global deployment
Auto Calibration & Compensation: Ensures precision and stability across temperature ranges
Modular Integration: Designed for use with HBS01-CJC base
Mini-USB Service Port: Simplifies diagnostics and configuration
Wide Operating Range: Tested for harsh industrial conditions
