Description

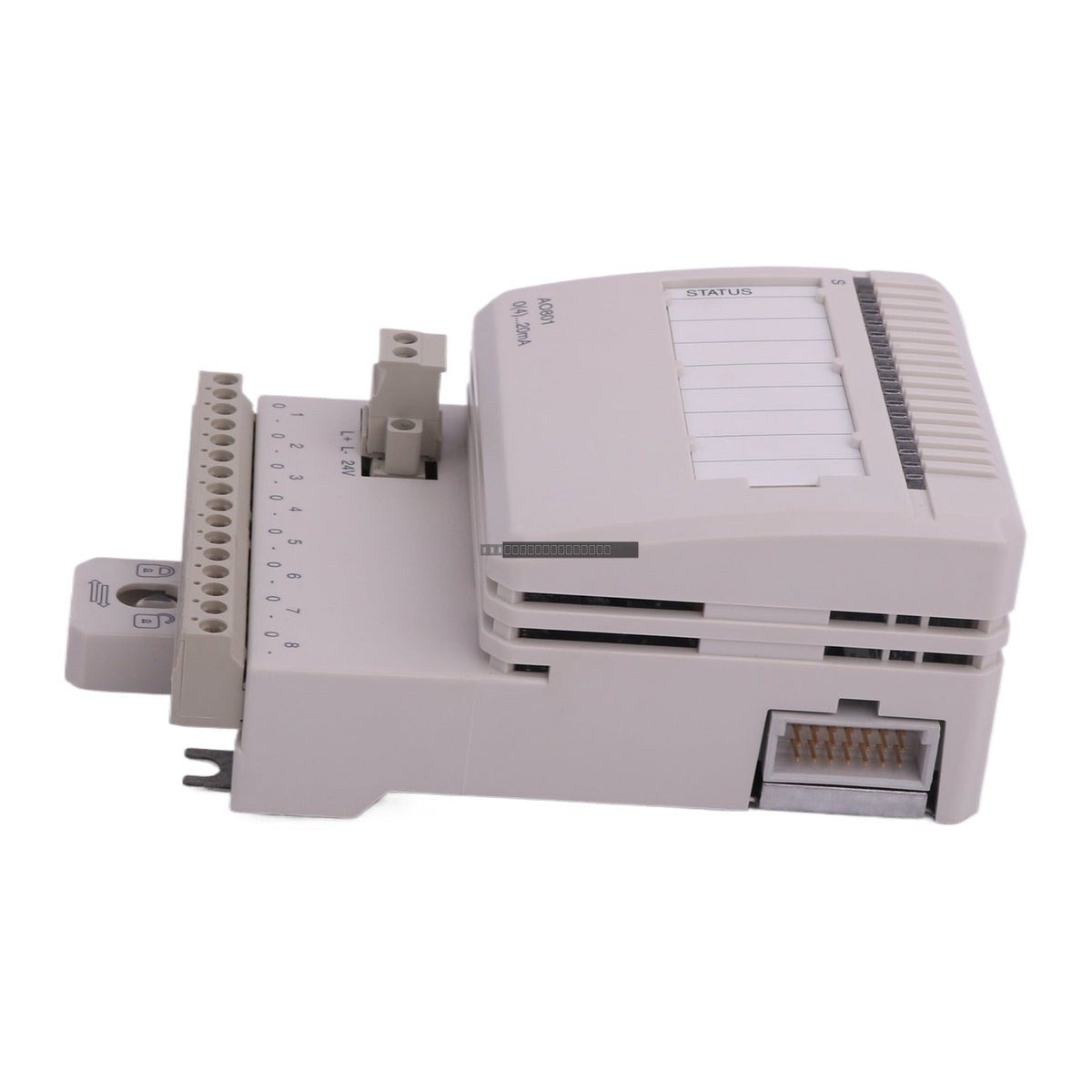

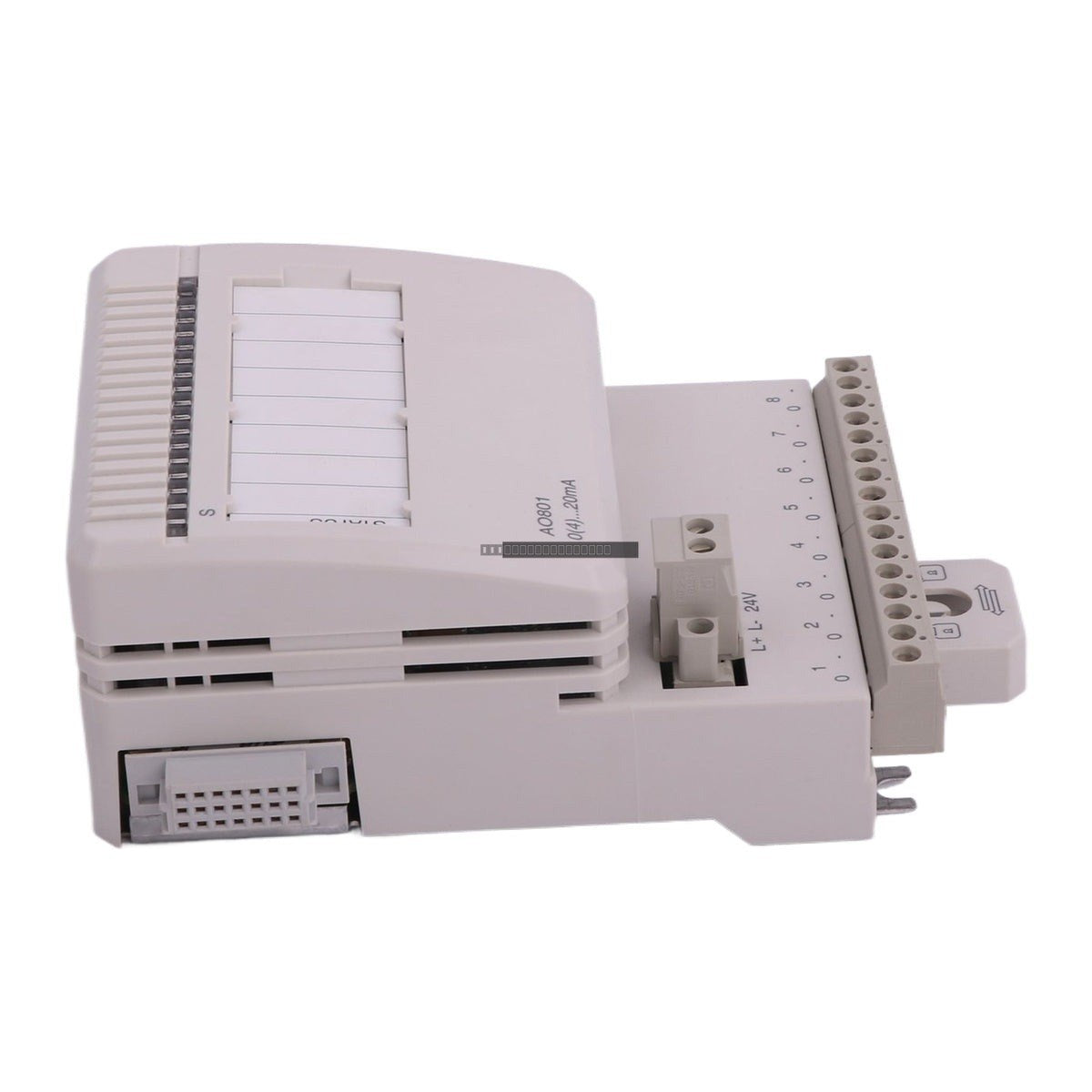

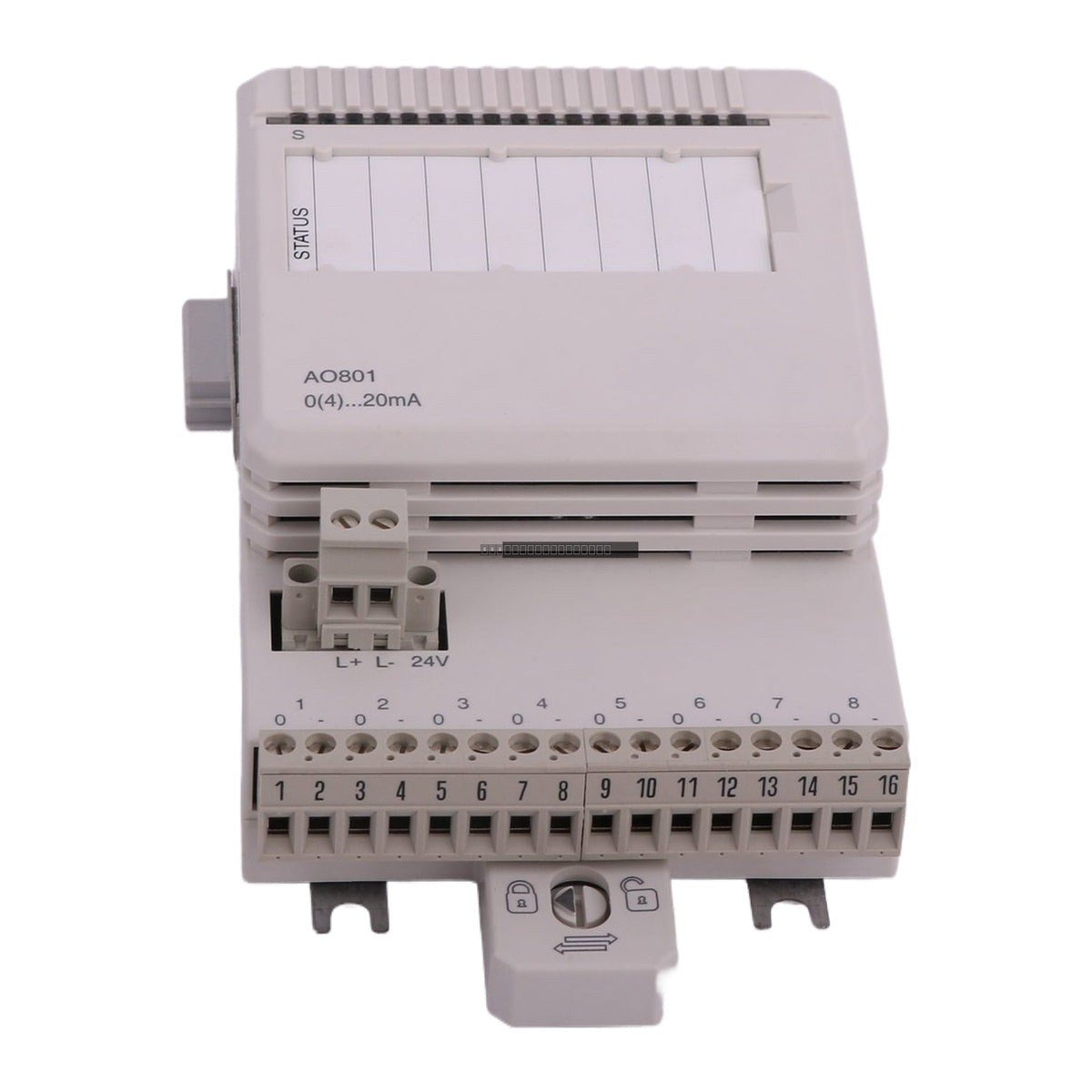

The ABB AO801 is an analog output module designed for the S800 I/O series. This module provides 8 channels of analog output, specifically configured for 20 mA current loops. It is a critical component for industrial control systems requiring precise analog signal transmission to field devices such as actuators, valves, and positioners.
Features
- 8-channel analog output capability
- Compatible with the ABB S800 I/O system architecture
- Supports 20 mA current output signals
- Robust design for industrial process automation environments
- Identified by order code 3BSE020514R1
Applications
This module is typically utilized in distributed control systems (DCS) for process control applications, including chemical processing, power generation, and water treatment facilities where reliable analog signal output is required for process regulation.
Technical Specifications
| Product Model |
AO801 |
| Order Code |
3BSE020514R1 |
| Module Type |
Analog Output Module |
| Channel Count |
8 Channels |
| Output Range |
20 mA |
| Manufacturer |
ABB |
Installation Guidelines
- Ensure the power is disconnected from the S800 I/O rack before inserting or removing the module to prevent electrical damage.
- Verify that the module is correctly seated in the mounting base to ensure proper backplane communication.
- Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) and signal noise.
- Maintain adequate ventilation within the control cabinet to ensure the module operates within its specified temperature range.
- Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
FAQ
What is the primary function of the ABB AO801?
The AO801 is an analog output module used to convert digital control signals from the PLC or DCS into 20 mA analog signals to drive field instruments.
Is this module compatible with other S800 I/O components?
Yes, the AO801 is designed specifically for integration within the ABB S800 I/O system family.
