Description

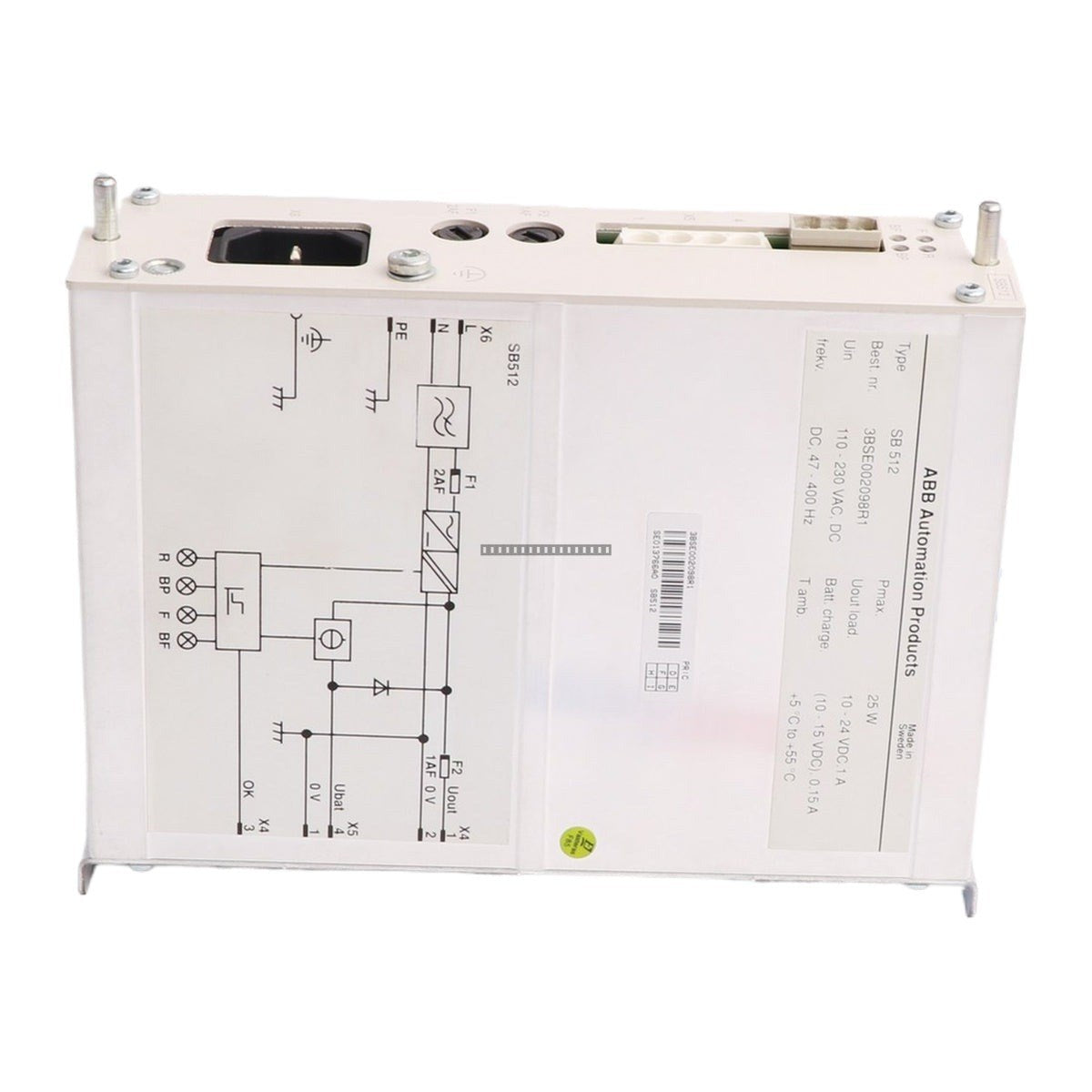

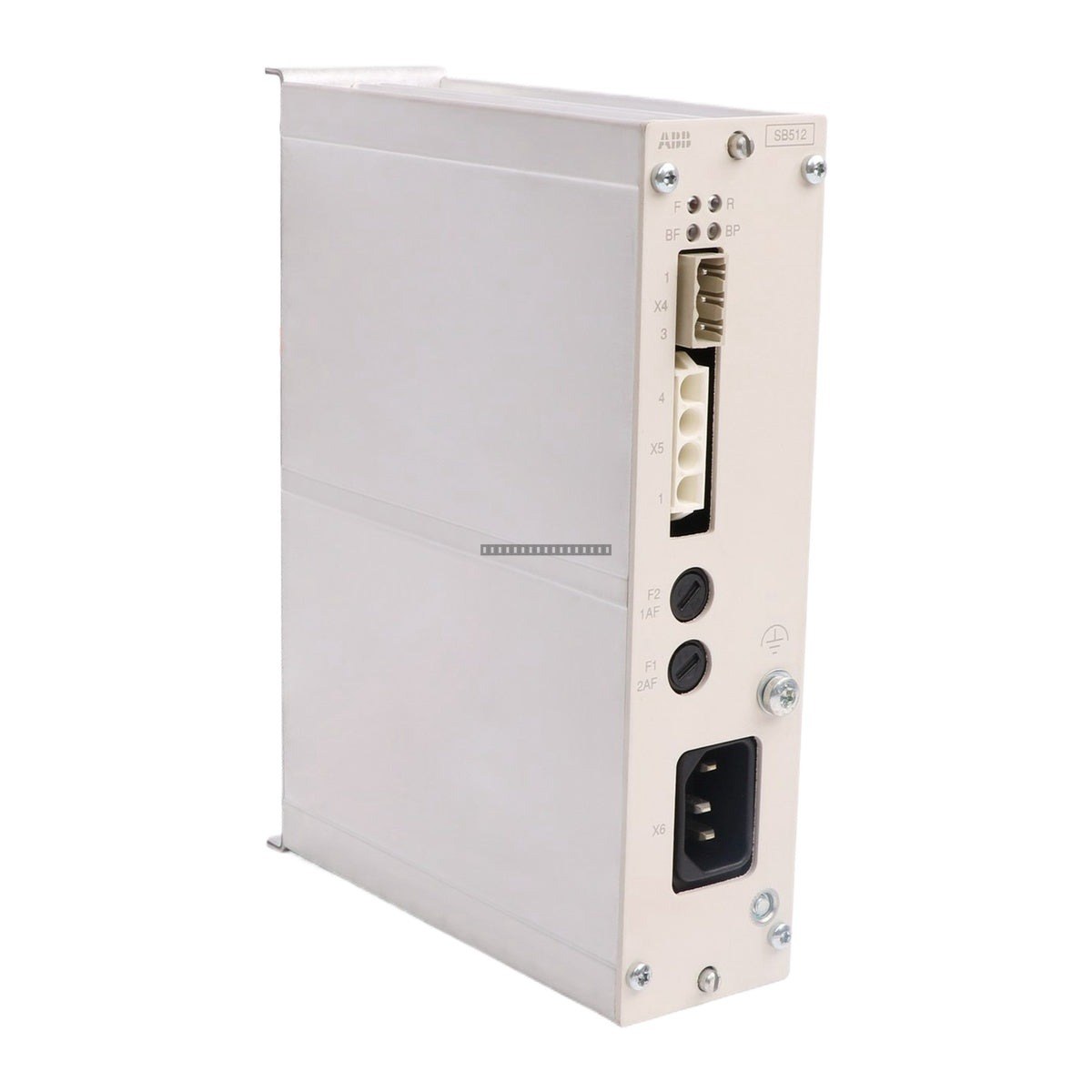

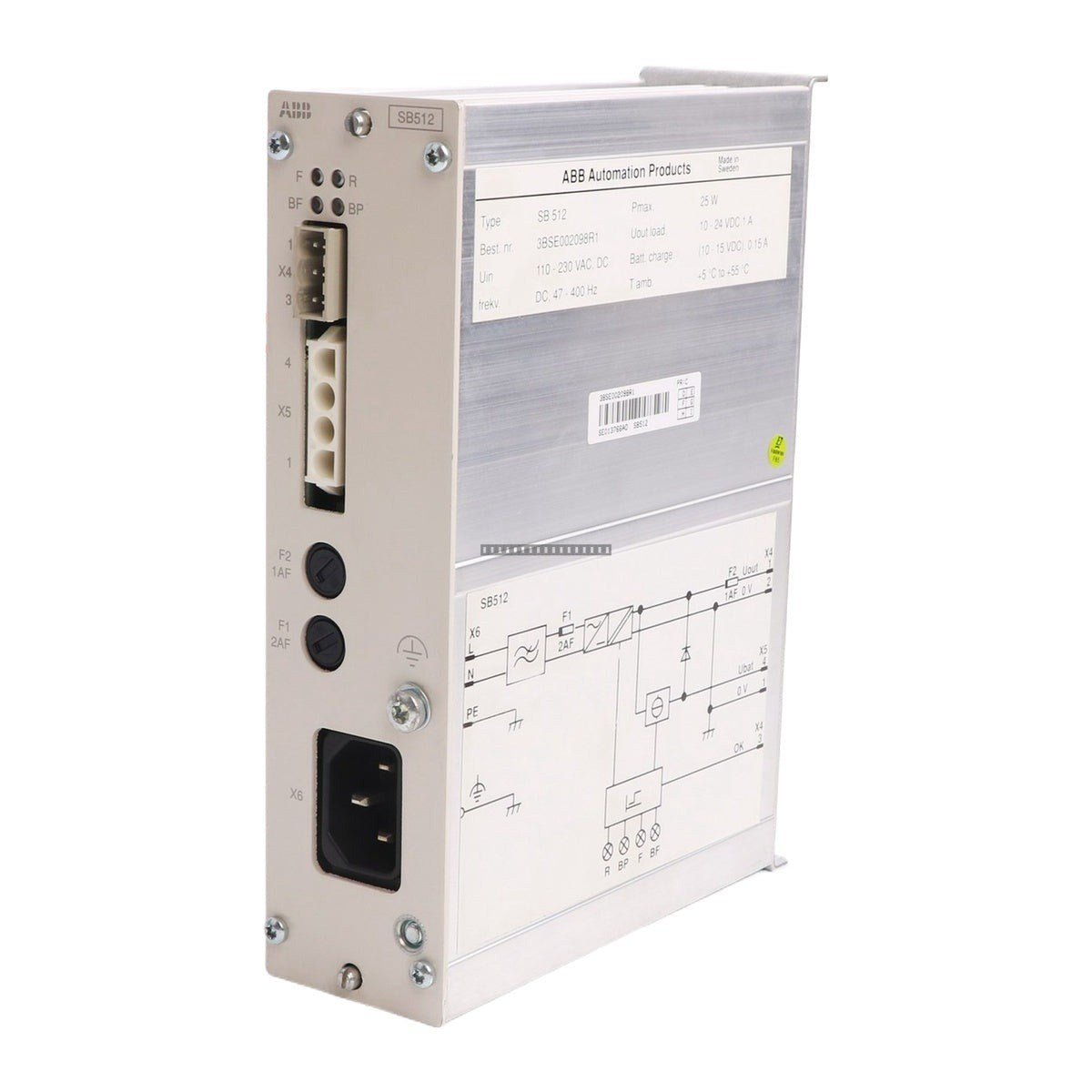

The ABB SB512 (3BSE002098R1) is a dedicated power supply module designed for use within the Advant S100 I/O system. This module provides reliable power conversion and distribution, ensuring stable operation for connected I/O components in industrial automation environments.
Features
- Designed specifically for compatibility with Advant S100 I/O racks.
- Supports a wide range of input voltages to accommodate various industrial power architectures.
- Engineered for high efficiency and low ripple, maintaining signal integrity for sensitive I/O modules.
- Robust construction suitable for demanding industrial temperature ranges.
Applications
This power supply is primarily utilized in ABB Advant OCS and S100 I/O configurations, providing field power to distributed I/O stations in process control, power generation, and manufacturing automation systems.
Technical Specifications
| Product Model |
SB512 / 3BSE002098R1 |
| Manufacturer |
ABB |
| Input Voltage |
110-230 VAC/DC |
| Output Voltage |
10-24 VDC |
| Output Current |
1 A |
| Operating Temperature |
-25 degC to +70 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
5-95% RH (non-condensing) |
| Altitude |
Up to 2000 meters |
Installation Guidelines
- Ensure the power supply is installed in a clean, dry environment within an industrial enclosure.
- Verify that the input voltage matches the module specifications before applying power.
- Maintain proper ventilation around the module to prevent heat buildup, adhering to the specified operating temperature limits.
- Use appropriate wire gauges for input and output connections to minimize voltage drop and ensure secure terminal contact.
- Always disconnect power before inserting or removing the module from the I/O rack to prevent electrical damage or arcing.
- Ensure the module is securely seated in the rack and properly grounded to minimize electromagnetic interference (EMI).
FAQ
Is the SB512 compatible with other Advant I/O systems?
The SB512 is specifically designed for the Advant S100 I/O series. Please verify your system documentation or part number compatibility before installation.
What is the primary function of this module?
The SB512 serves as a power supply unit, converting primary supply voltages into the required DC levels for field I/O operations within the S100 system.
