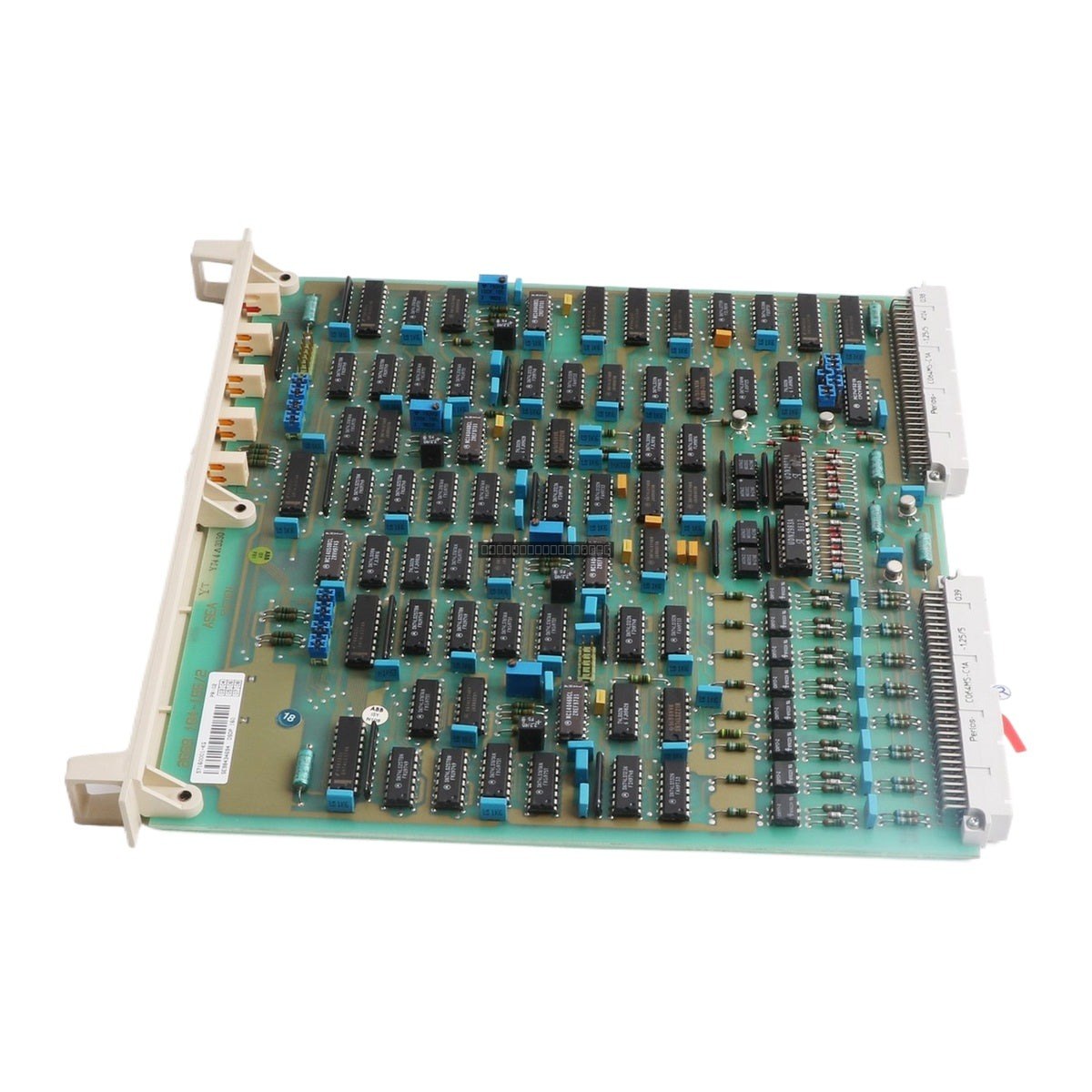

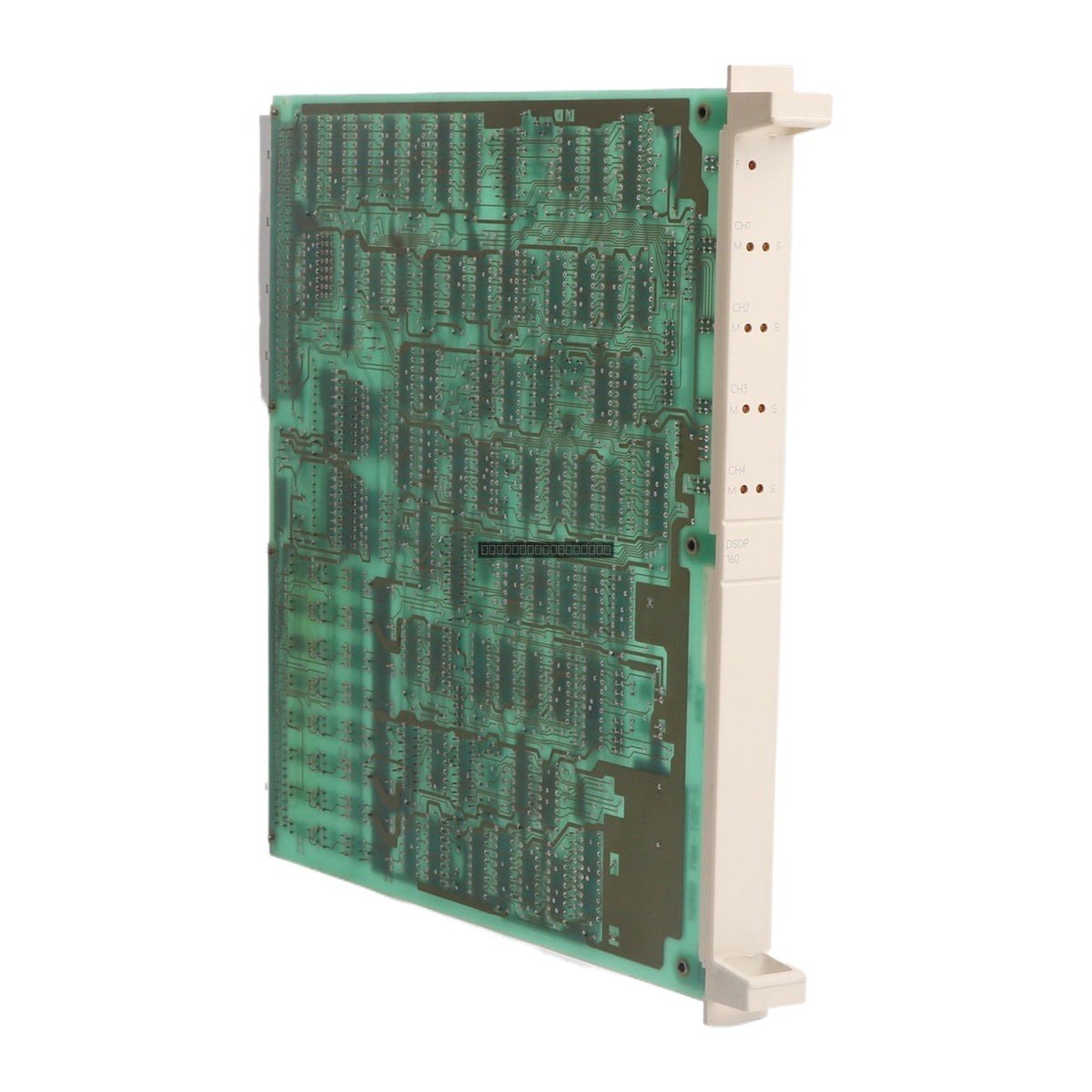

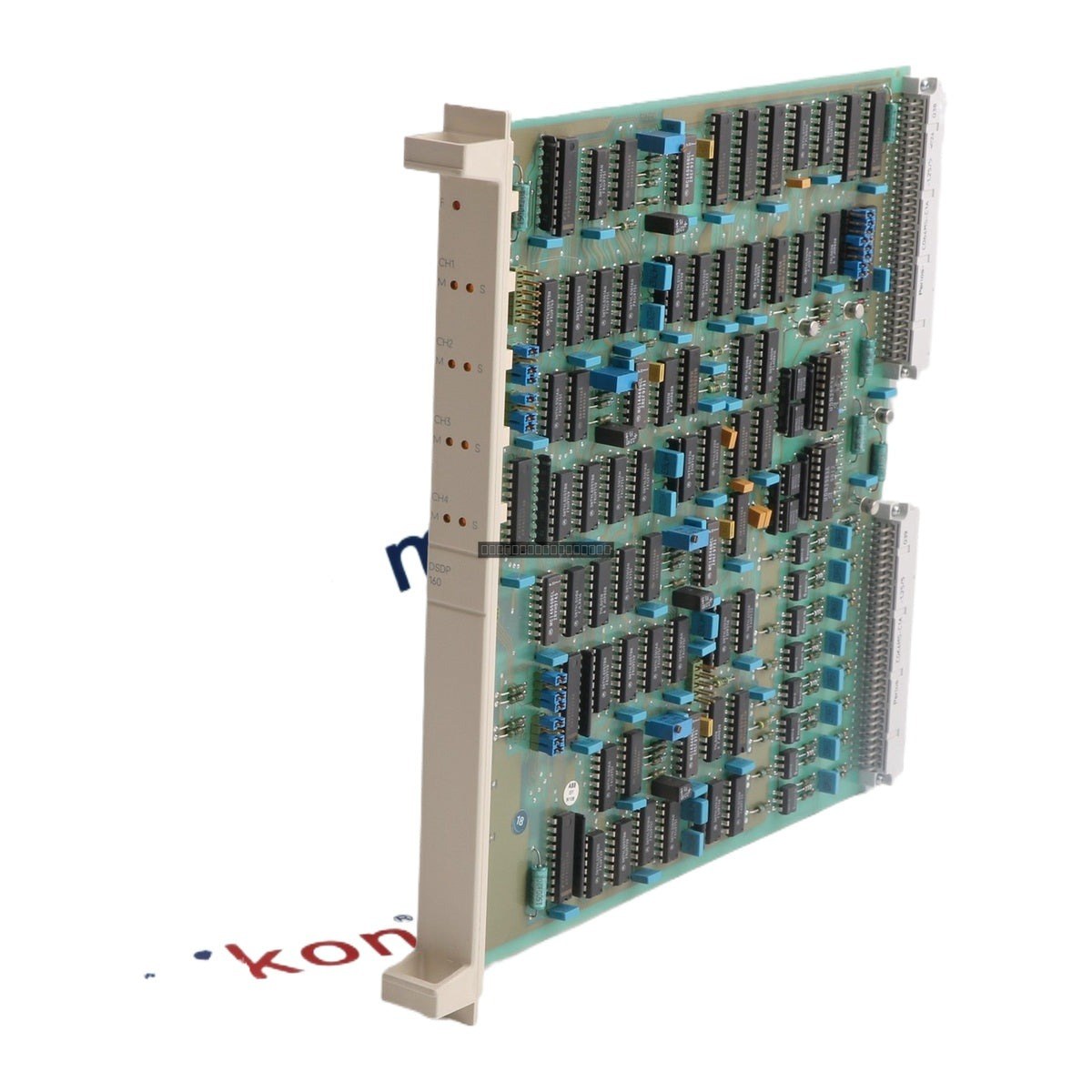

The ABB DSDP160 (57160001-KG) is a high-performance pulse counter board designed for integration within the Advant S100 I/O system. This module is engineered for precise pulse counting applications in industrial automation environments, providing reliable data acquisition for 800xA and Advant control systems. It is built to handle standard industrial 24V DC control voltages, ensuring seamless compatibility with existing S100 I/O infrastructure.
Features
- Designed for Advant S100 I/O and 800xA control system architectures.
- Supports a maximum pulse frequency of 10 kHz for high-speed counting tasks.
- Minimum pulse width capability of 50 microseconds.
- Nominal operating voltage of 24V DC with a functional range of 20V to 30V DC.
- Typical current consumption of 0.5 A at 24V DC.
Technical Specifications
| Product Model |
DSDP160 |
| Order Code |
57160001-KG |
| Manufacturer |
ABB |
| Function |
Pulse Counter Board |
| Nominal Voltage |
24V DC |
| Input Voltage Range |
20V to 30V DC |
| Max Pulse Frequency |
10 kHz |
| Min Pulse Width |
50 us |
| Power Consumption |
10-15W (approx.) |
| Typical Current |
0.5 A at 24V DC |
Installation Guidelines
- Ensure the control system power is disconnected before installing or removing the DSDP160 module from the S100 I/O rack.
- Verify that the module is securely seated in the designated slot to ensure proper backplane communication.
- Use shielded cabling for pulse input signals to minimize electromagnetic interference (EMI) and ensure signal integrity.
- Maintain proper ventilation within the cabinet to prevent thermal stress on the module components.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the board or its connectors.
FAQ
What is the primary function of the DSDP160 module?
The DSDP160 is a dedicated pulse counter board used to interface pulse-generating field devices with the ABB Advant S100 I/O system.
Is this module compatible with the 800xA system?
Yes, this module is designed for use within the Advant control system family, which integrates with the 800xA environment.
What is the maximum frequency this counter can handle?
The module supports a maximum pulse frequency of 10 kHz.
