Description

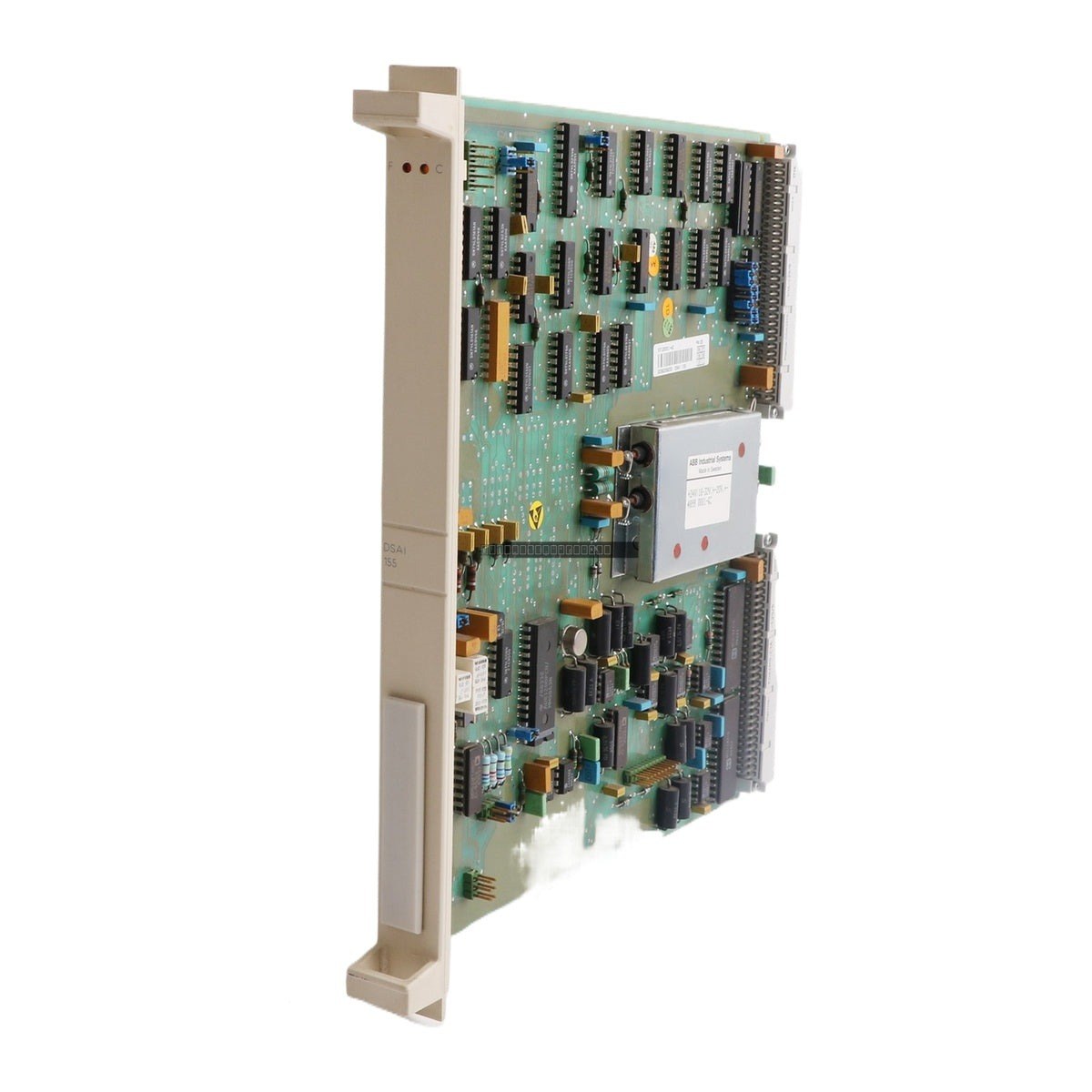

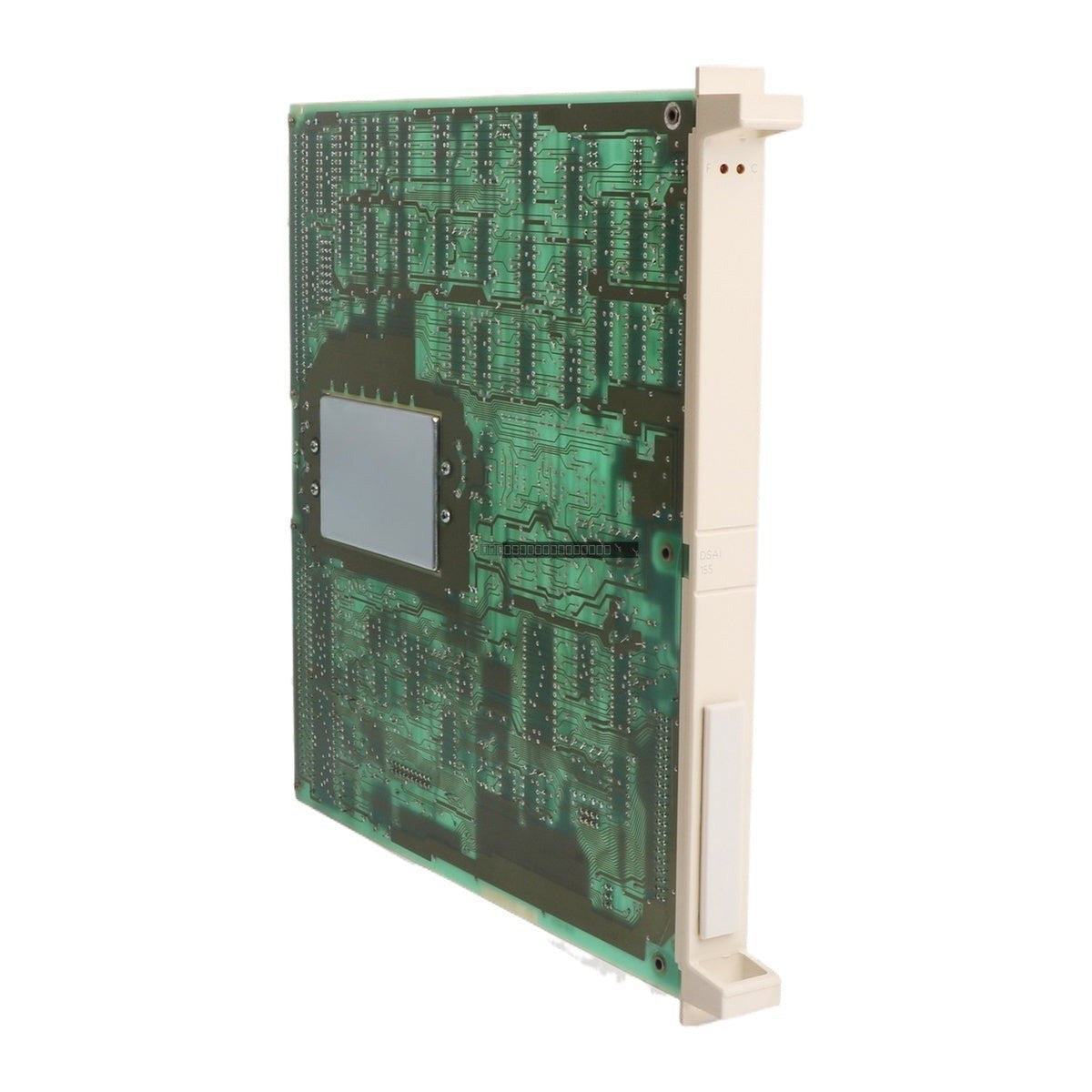

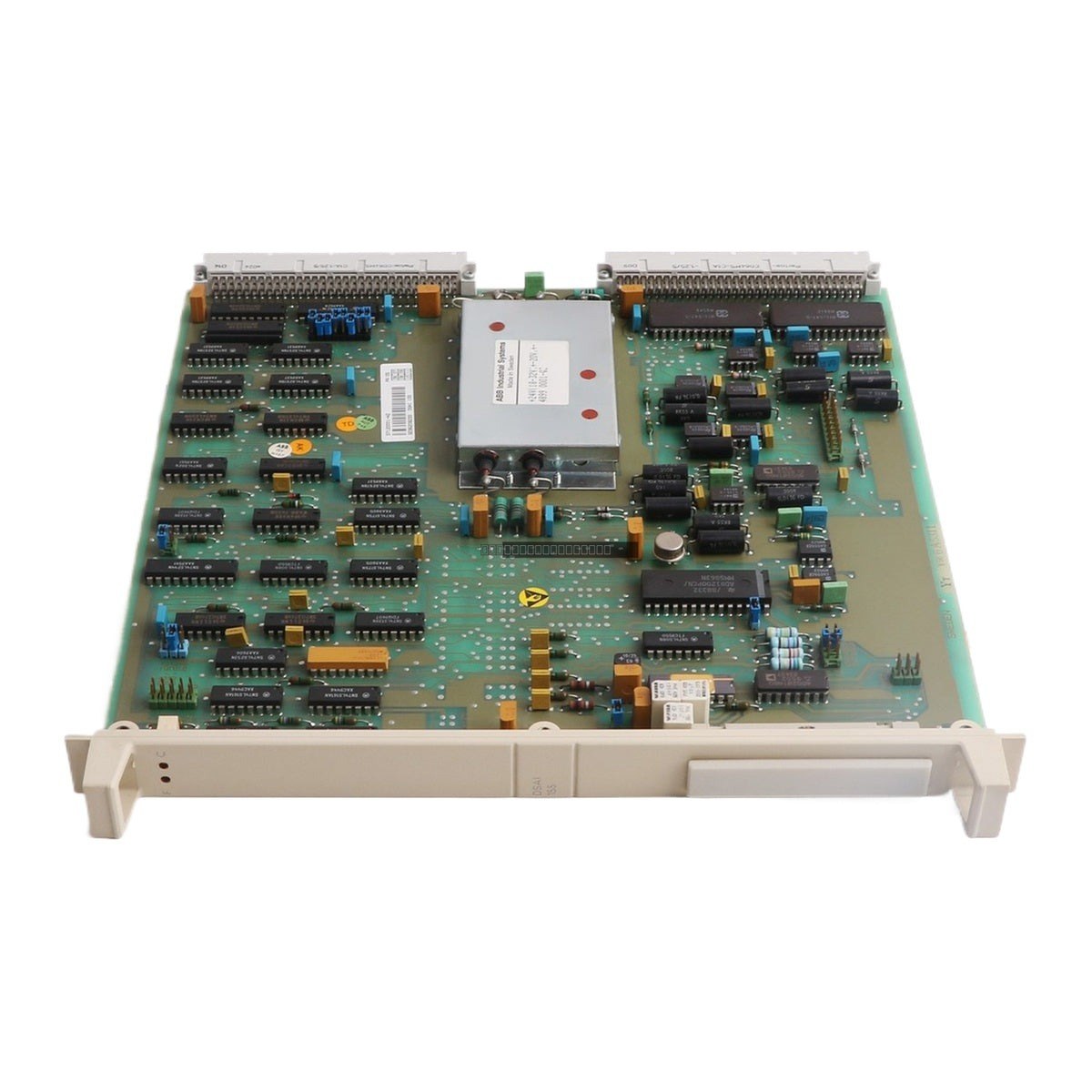

The ABB DSAI155 is an analog input module designed for the Advant S100 I/O system. This module is specifically engineered for thermocouple signal processing, providing reliable data acquisition for industrial control applications. Please note that this unit is designated as discontinued by the manufacturer.
Features
- Designed for integration with the Advant S100 I/O platform
- Specialized input circuitry for thermocouple sensor interfacing
- Robust design suitable for demanding industrial environments
- Direct replacement or spare for legacy control systems
Technical Specifications
| Product Model |
DSAI155 |
| Spare Model / Order Code |
57120001-HZ |
| Manufacturer |
ABB |
| Module Type |
Analog Input (Thermocouple) |
| Weight |
0.48 kg |
Installation Guidelines
- Ensure the control system power is fully disconnected before attempting to install or remove the module from the S100 I/O rack.
- Verify that the module is correctly seated in the designated slot to ensure proper backplane communication.
- Use shielded cabling for thermocouple inputs to minimize electromagnetic interference (EMI) and ensure signal integrity.
- Maintain proper grounding practices for the I/O rack to protect against electrical noise and surges.
- Handle the module using ESD-safe practices to prevent damage to sensitive internal electronic components.
- Ensure adequate ventilation around the I/O rack to prevent overheating during continuous operation.
FAQ
Is the ABB DSAI155 still in production?
No, the DSAI155 module has been discontinued by ABB. It is primarily available through secondary market channels for maintenance and support of legacy systems.
What type of sensors does the DSAI155 support?
The DSAI155 is specifically designed to interface with thermocouple sensors for temperature measurement within the Advant S100 I/O architecture.
