Description
Description

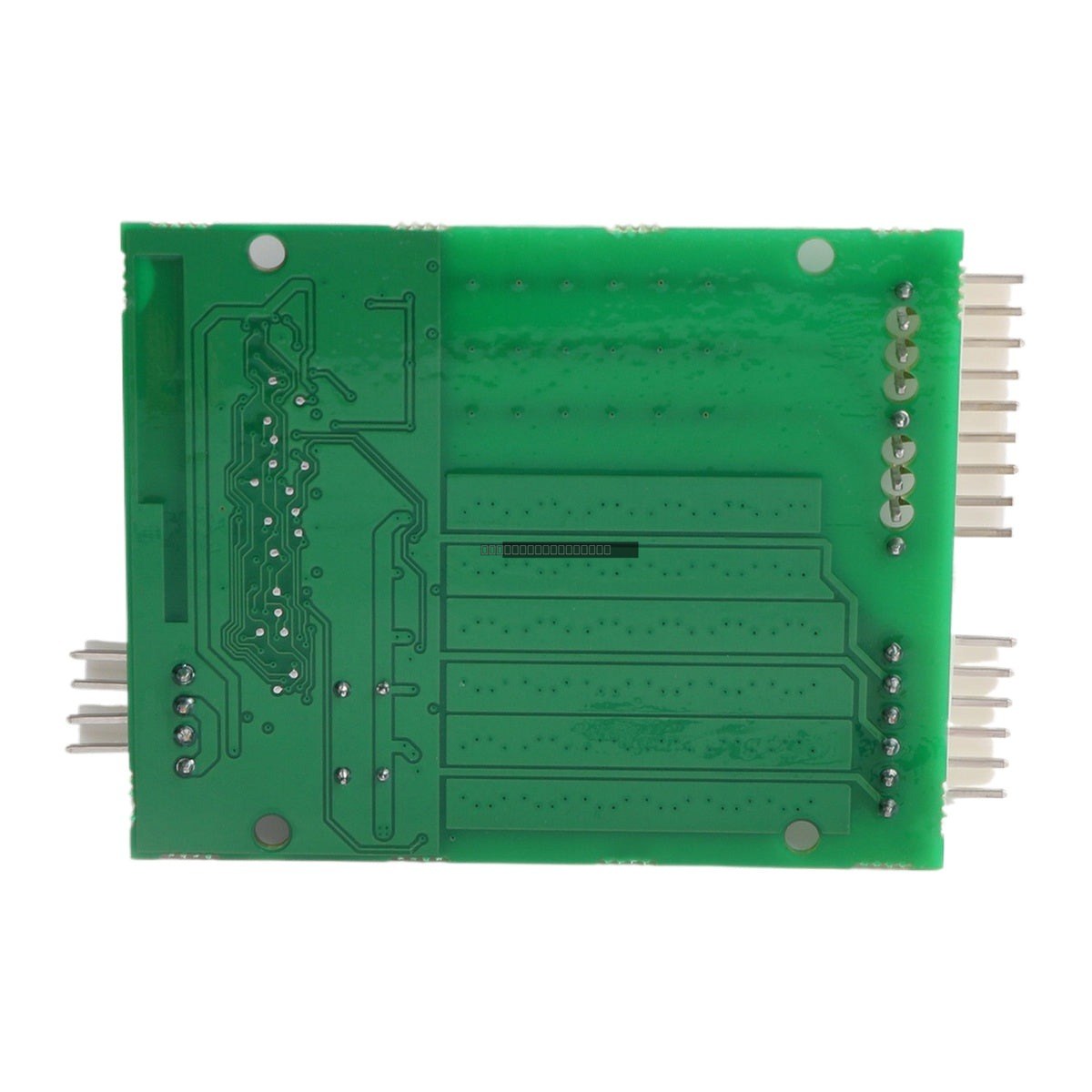

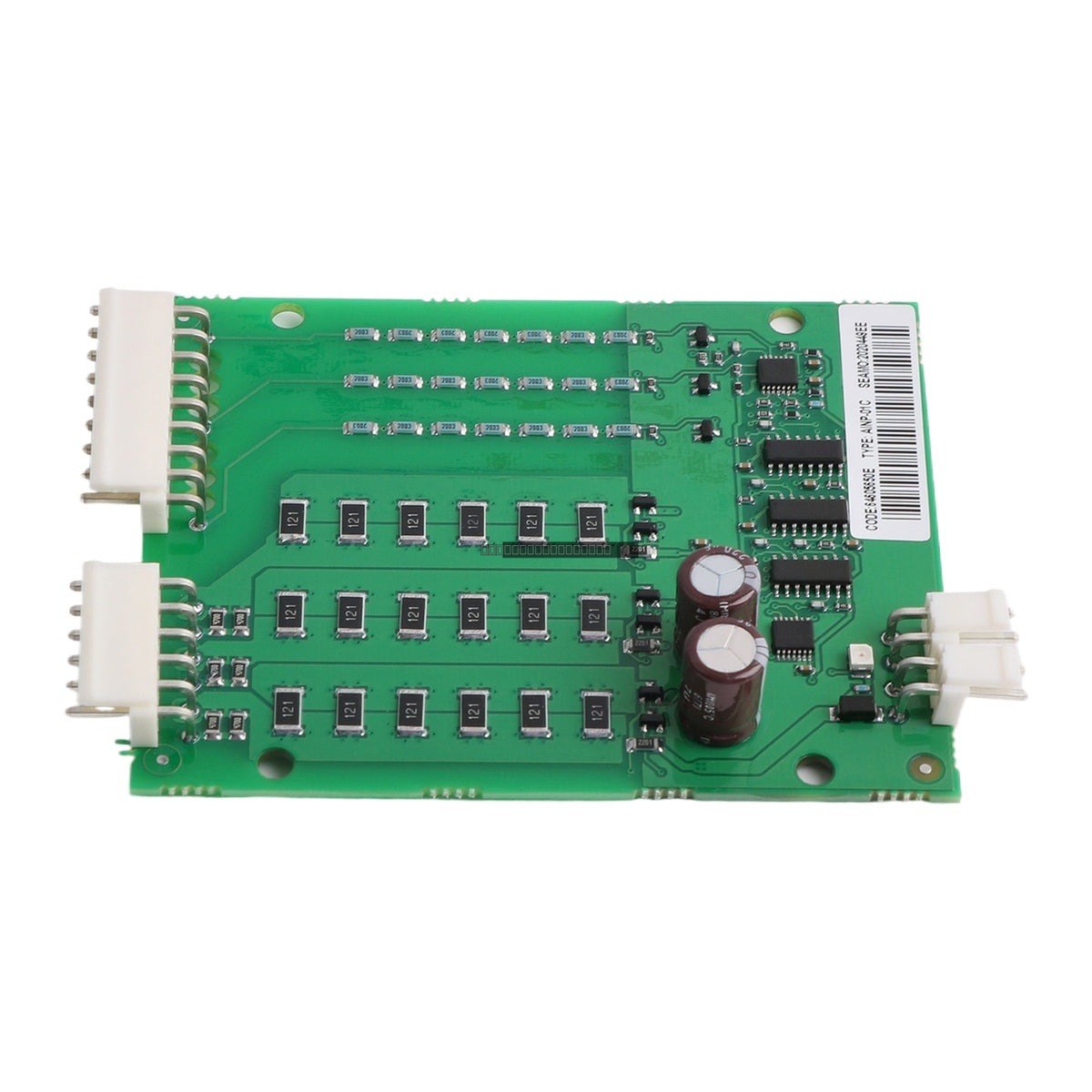

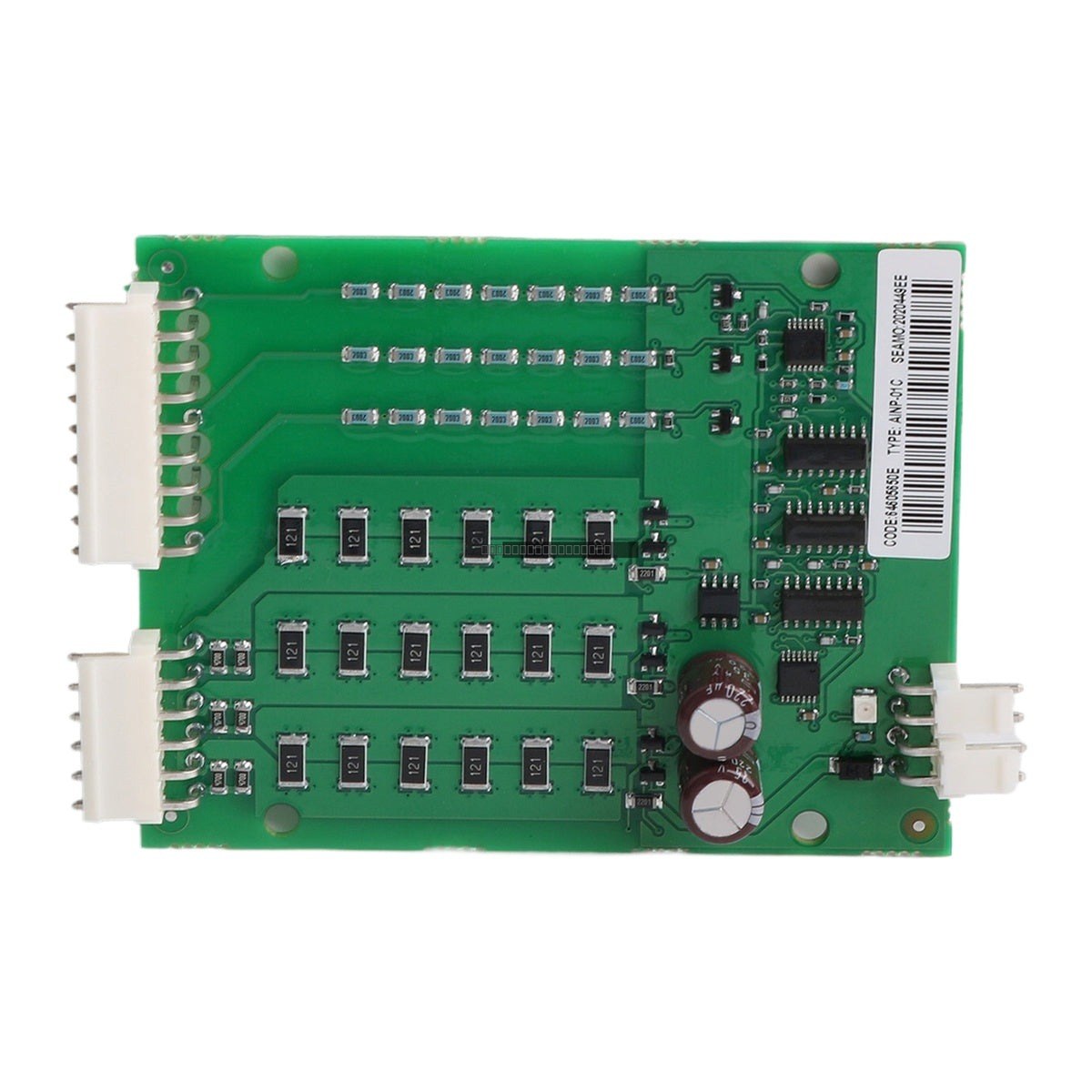

The ABB AINP-01C is an Input Bridge Control Board designed for integration within ABB Advant OCS and Advant-800xA control systems. This component serves as a critical interface for managing input bridge operations, ensuring reliable signal processing and control within industrial automation environments. The module features a protective coating to enhance durability and resistance against environmental factors in demanding industrial settings.
Features
- Designed for compatibility with ABB Advant OCS and Advant-800xA platforms.
- Engineered for robust performance in power applications ranging from 208V to 690V.
- Equipped with a specialized protective coating to extend operational lifespan.
- Compact form factor for efficient space utilization in control cabinets.
Technical Specifications
| Model Number |
AINP-01C |
| ABB Product Number |
68258529 |
| Voltage Rating |
208-690V |
| Weight |
0.04 kg |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the control system is powered down before attempting to install or remove the AINP-01C module.
- Handle the board using proper ESD (Electrostatic Discharge) protection measures to prevent damage to sensitive electronic components.
- Verify that the mounting location is free from excessive vibration and high-EMI sources.
- Ensure that all connections are secure and that the module is properly seated in its designated slot to maintain system integrity.
- Maintain adequate ventilation around the control cabinet to prevent overheating during operation.
FAQ
What systems is the AINP-01C compatible with?
The AINP-01C is specifically designed for use with ABB Advant OCS and Advant-800xA industrial control systems.
What is the primary function of this board?
This module functions as an Input Bridge Control Board, facilitating signal management and control bridge operations within the specified ABB control architectures.
Does this module require special handling?
Yes, as with all industrial control boards, it is recommended to handle the AINP-01C with anti-static precautions and ensure it is installed in a clean, controlled environment to maintain its protective coating and electronic integrity.
