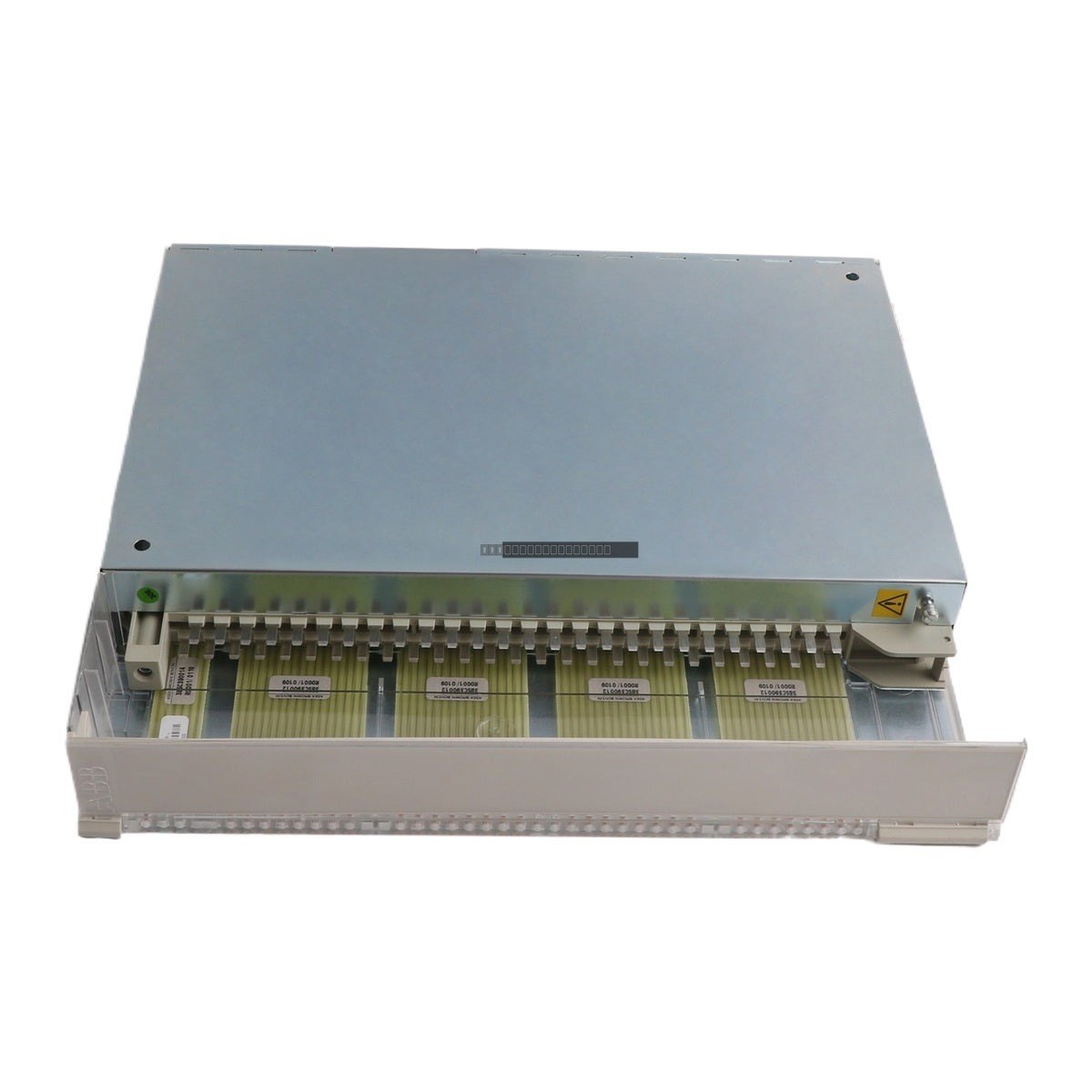

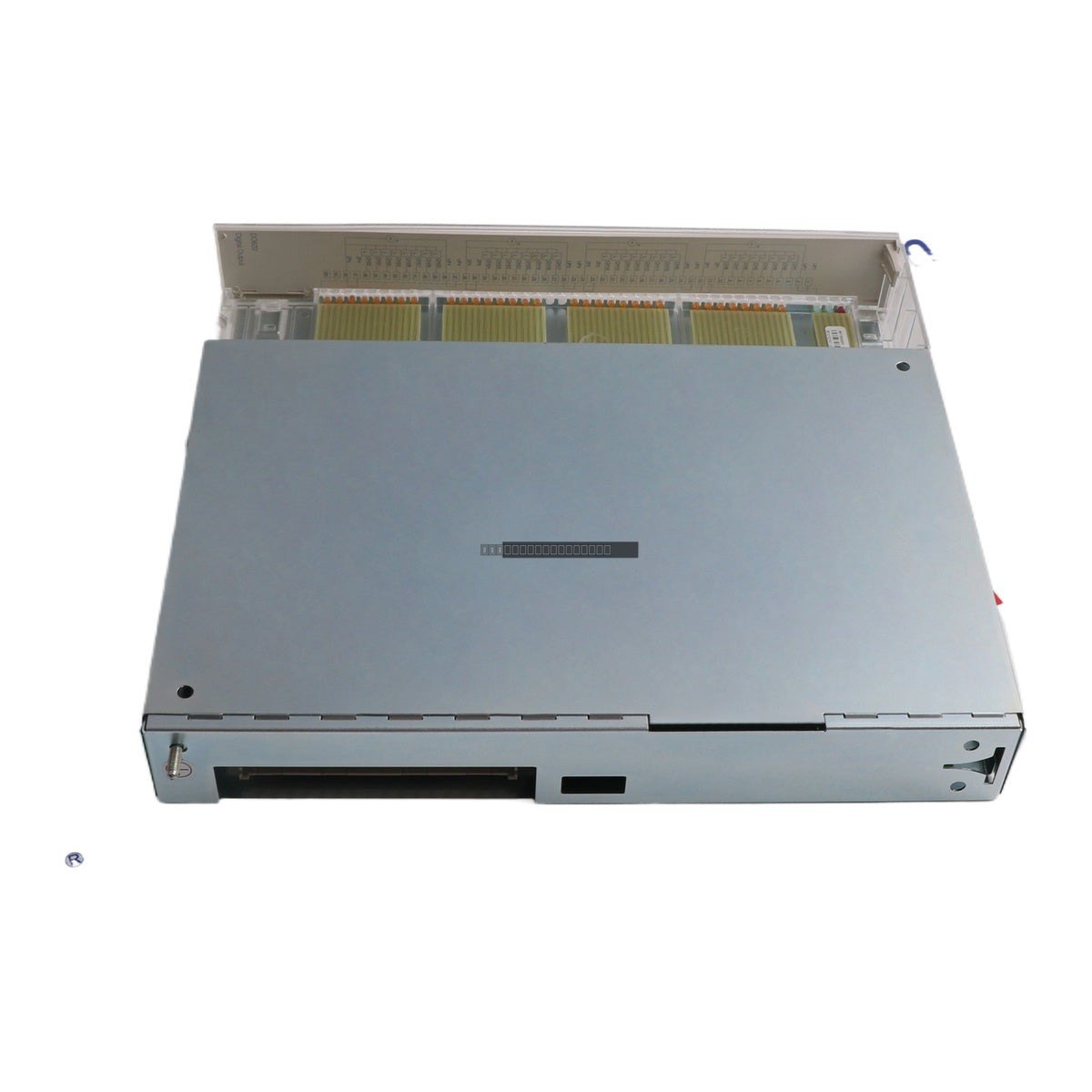

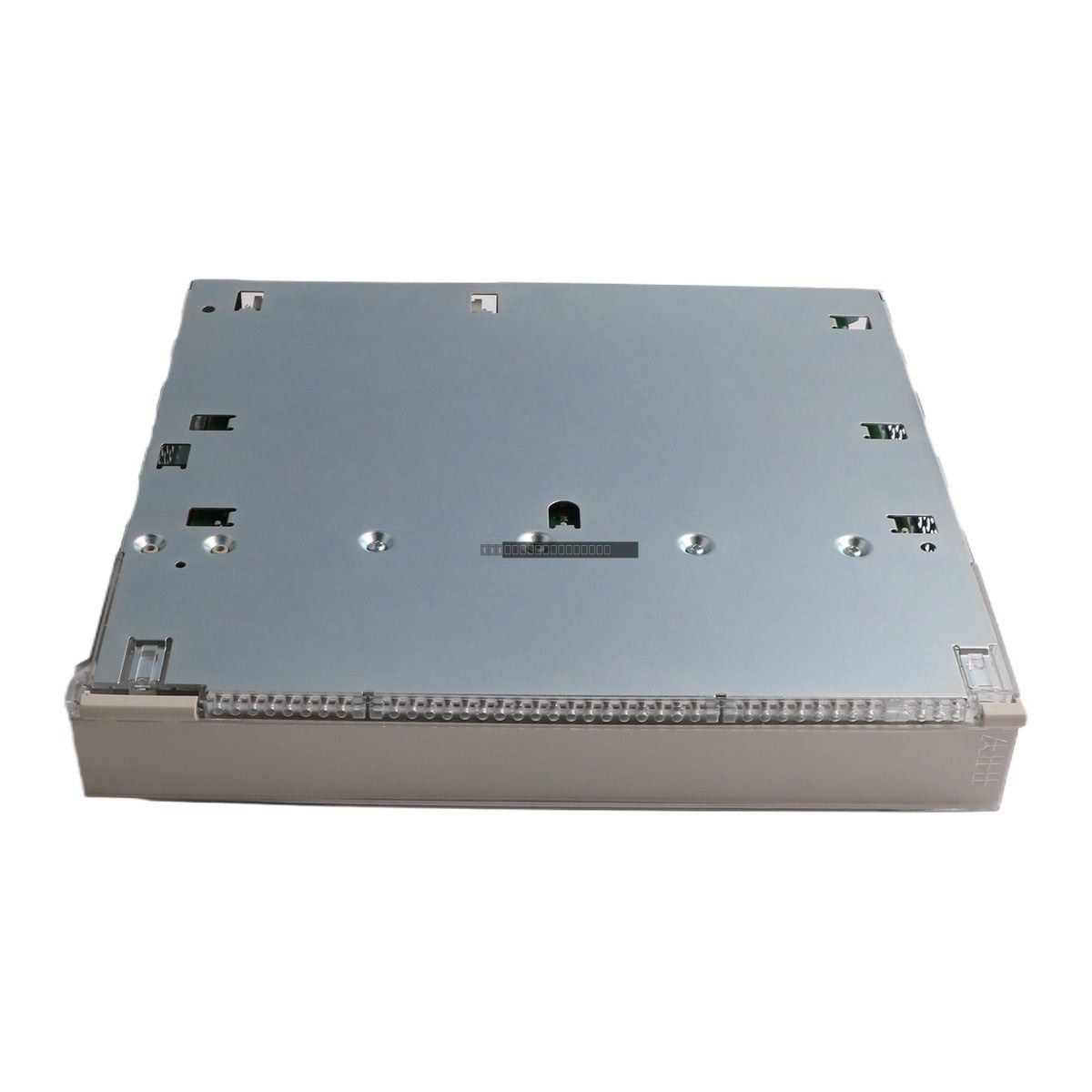

The ABB DO620 (3BHT300009R1) is a high-density digital output module designed for use within the Advant S600 I/O system. This module provides 32 digital output channels, organized into four isolated groups, to facilitate reliable control signal distribution in industrial automation environments. As a component of the Advant Controller 110/160 series, it is engineered for robust performance in demanding process control applications.
Features
- 32-channel digital output configuration
- Four isolated groups for enhanced signal separation
- Maximum switching capacity of 500mA per channel
- Operational voltage rating up to 60VDC
- Designed for the Advant S600 I/O platform
Technical Specifications
| Product Model |
DO620 |
| Order Code |
3BHT300009R1 |
| Number of Channels |
32 |
| Output Type |
Digital Output |
| Isolation |
4 Groups |
| Max Current per Channel |
500mA |
| Max Voltage |
60VDC |
| System Compatibility |
Advant S600 |
| Weight |
1.16 kg |
Installation Guidelines
- Ensure the controller power is disconnected before installing or removing the module from the S600 I/O rack.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
- Verify that the module is firmly seated in the backplane connector to ensure reliable communication and power distribution.
- Route signal wiring away from high-voltage power cables and sources of electromagnetic interference (EMI) to maintain signal integrity.
- Ensure proper grounding of the I/O rack according to ABB installation standards for the Advant system.
FAQ
Is the ABB DO620 still in production?
No, the ABB DO620 (3BHT300009R1) has been discontinued by the manufacturer. We provide high-quality surplus and refurbished units to support legacy system maintenance.
What systems is the DO620 compatible with?
The DO620 is specifically designed for the ABB Advant S600 I/O system, commonly used with Advant Controller 110 and 160 series hardware.
