Description

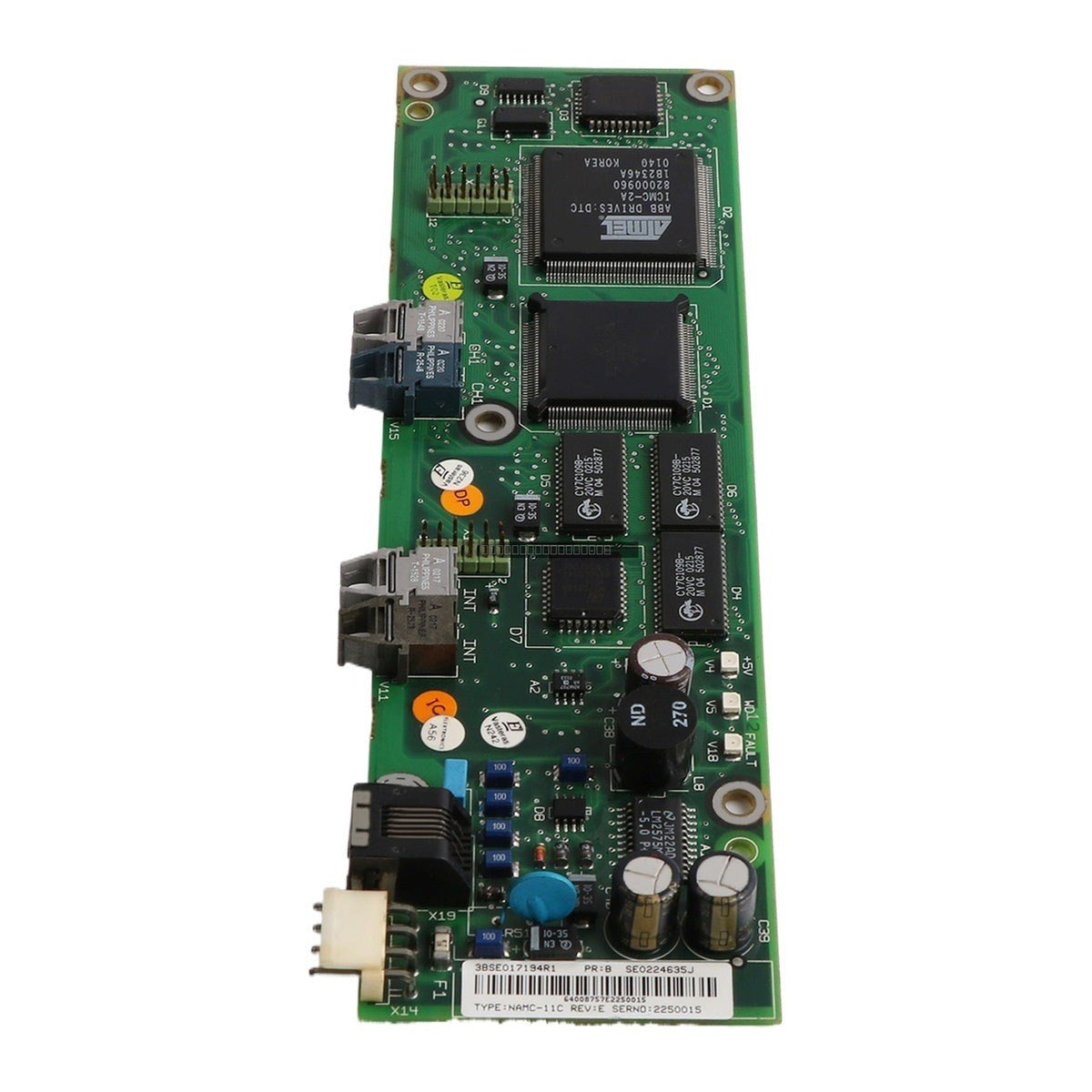

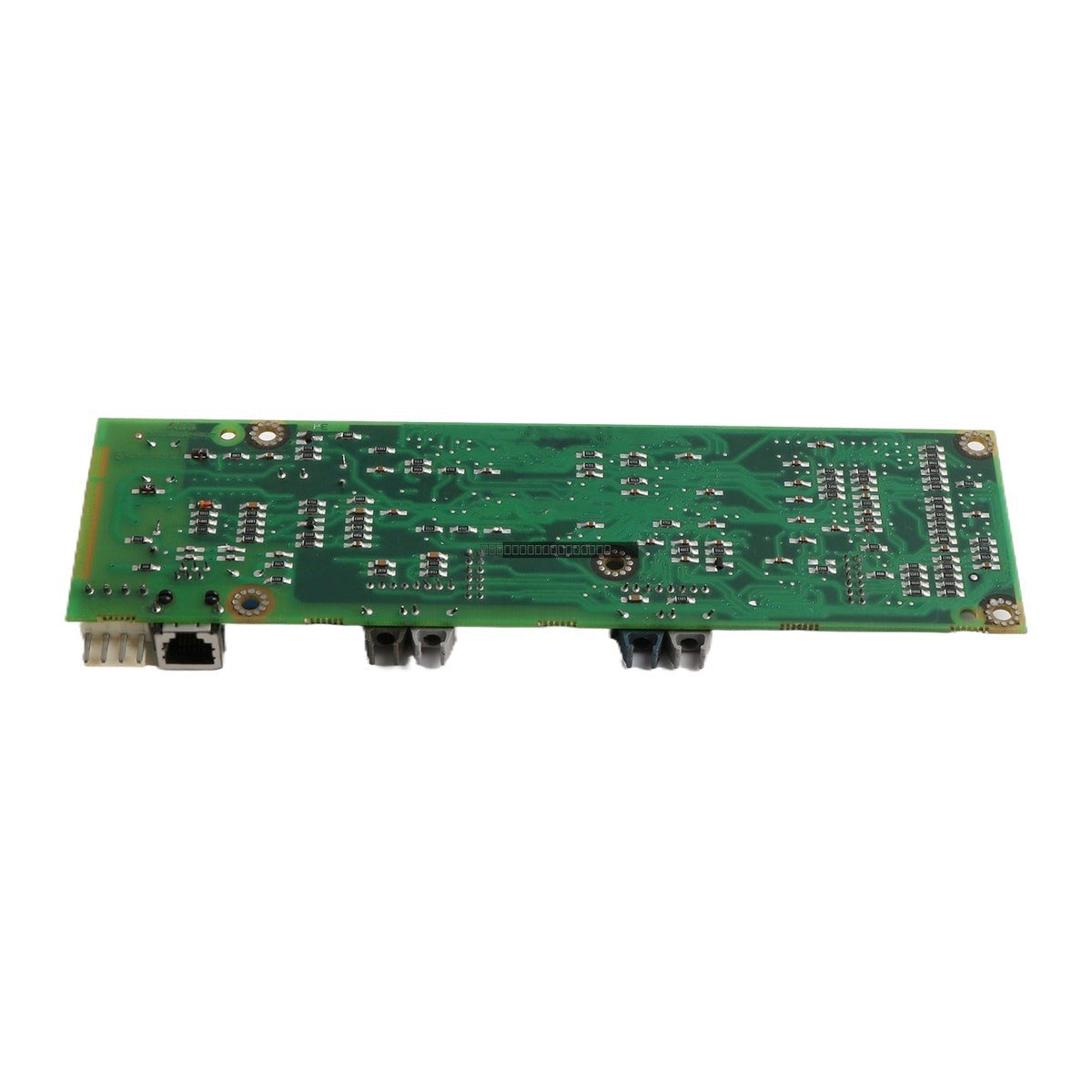

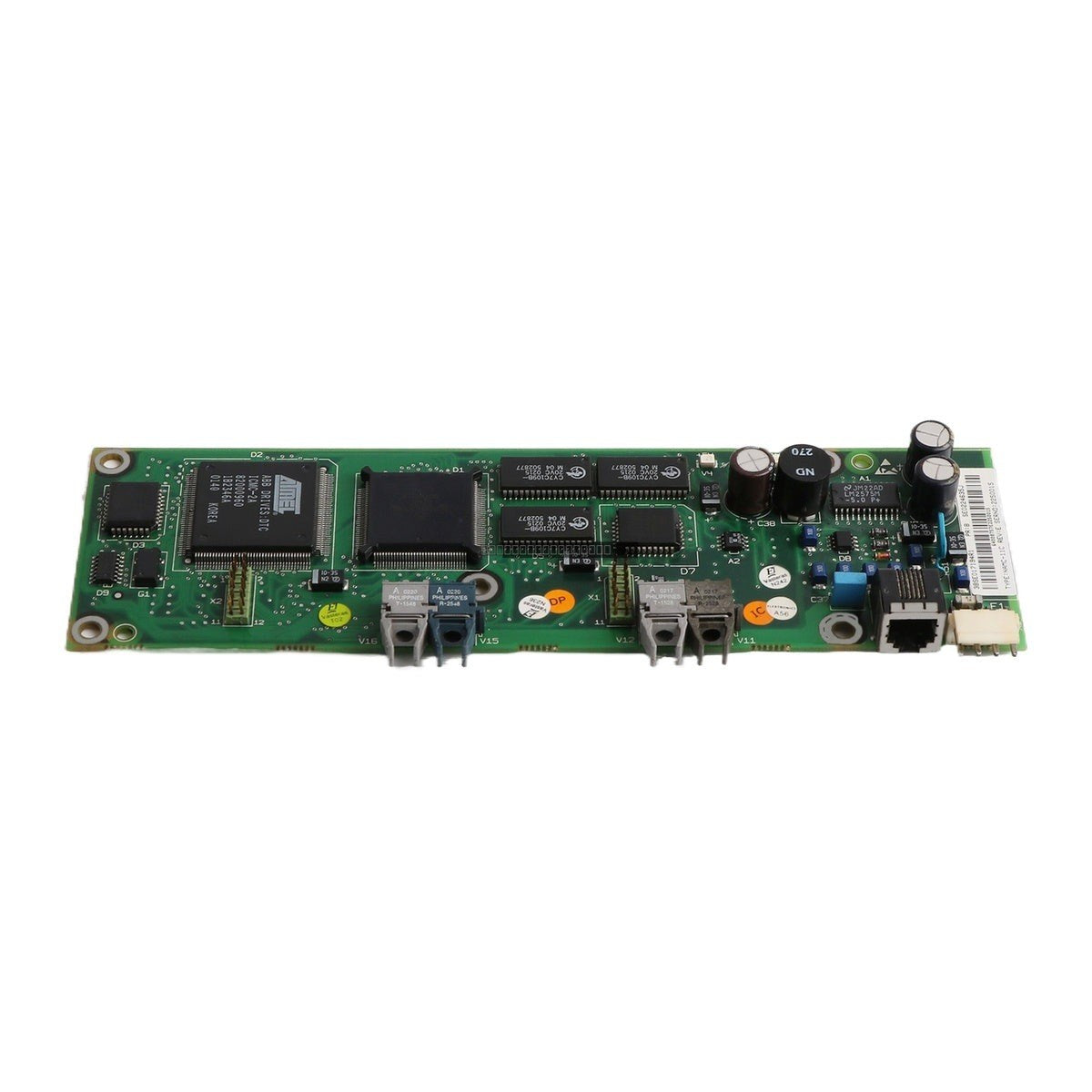

The ABB NAMC-11C (3BSE017194R1) is a specialized control board designed for the ACS 600 series industrial drive systems. This module serves as a core component for managing drive operations, signal processing, and communication within the control architecture of the drive unit.
Features
- Designed specifically for ABB ACS 600 drive series integration.
- Reliable stand-off mounting configuration for secure installation within the drive cabinet.
- Optimized for low-power consumption in demanding industrial environments.
- Compatible as a direct replacement or spare for units identified by 3BSE015488R1.
Technical Specifications
| Product Model |
NAMC-11C 3BSE017194R1 |
| Manufacturer |
ABB |
| Supply Voltage |
24V DC |
| Power Consumption |
5-15W typical |
| Operating Temperature |
-25 degC to +70 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
5-95% RH non-condensing |
Installation Guidelines
- Ensure the drive system is fully powered down and isolated before attempting to install or remove the control board.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal circuitry.
- Verify that the stand-off mounts are clean and free of debris before seating the board.
- Ensure all ribbon cables and connectors are fully seated and locked to prevent intermittent signal loss.
- Maintain adequate ventilation around the drive cabinet to ensure the board operates within its specified temperature range.
FAQ
What is the primary function of the NAMC-11C?
The NAMC-11C is a control board used within the ABB ACS 600 drive family to manage internal control logic and drive regulation.
Is this module compatible with other drive series?
This module is specifically engineered for the ACS 600 series. Please verify your drive's specific part number requirements before installation.
What should I do if the board fails to initialize?
Check the 24V DC power supply input and ensure all physical connections are secure. If the issue persists, consult the ACS 600 hardware manual for specific diagnostic error codes related to the control board.
