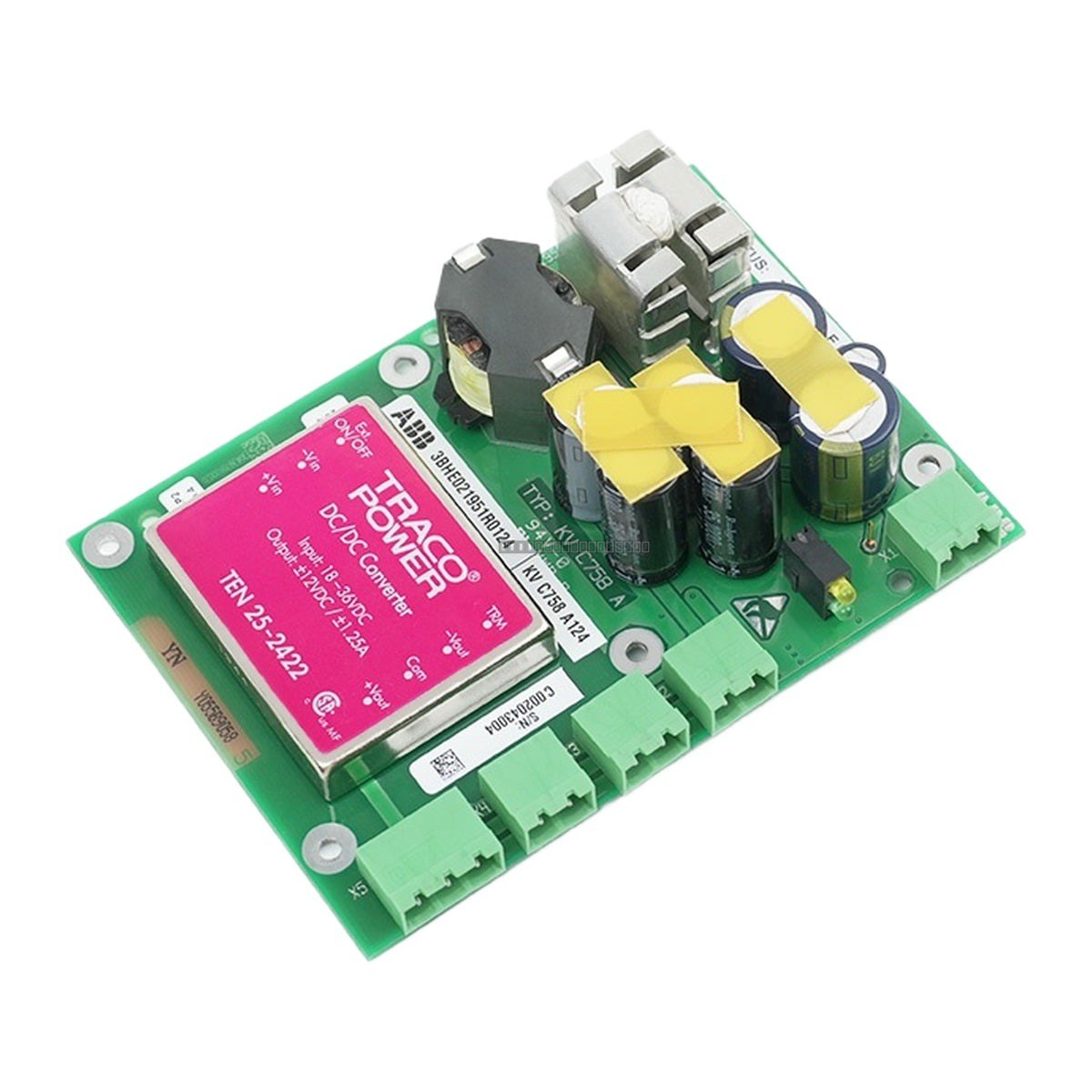

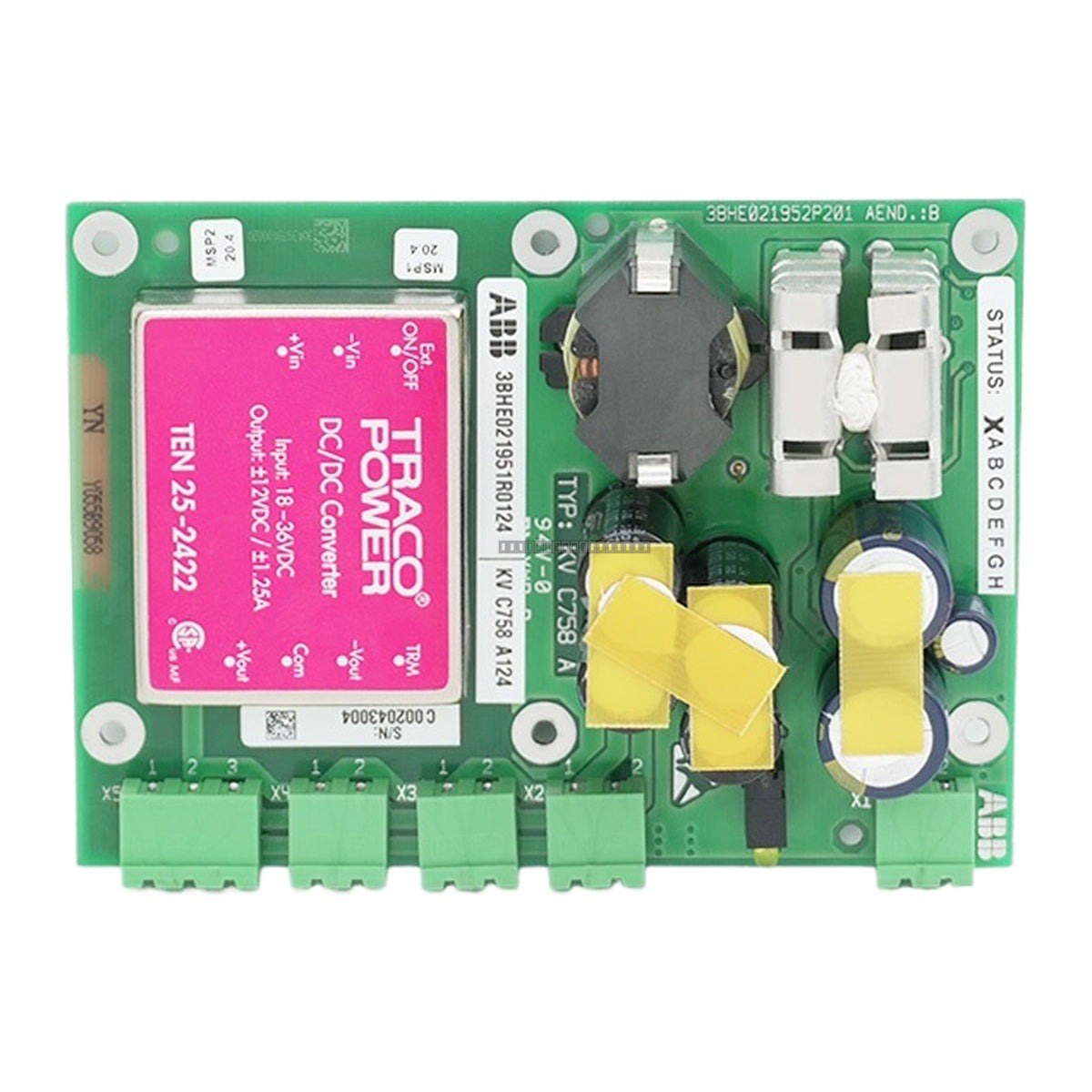

The ABB 3BHE021951R0124 (KVC758 A124) is an Isolated Power Supply (IPS) dual voltage subprint module. This component is engineered specifically for use within ABB ACS5000 water-cooled medium voltage AC drives. It serves as a critical control and excitation component, ensuring stable power delivery and signal isolation within high-voltage drive cabinet architectures.
Features
- Designed for integration with ABB ACS5000 medium voltage drive systems.
- Provides essential voltage regulation and power isolation for excitation control circuits.
- Supports high-reliability operation in industrial motor control applications such as pumps, fans, and compressors.
- Compact, modular design for efficient cabinet space utilization.
Applications
This power supply module is primarily utilized in industrial frequency converter systems, specifically within the ACS5000 series. It is a key component for maintaining the integrity of excitation control systems in large-scale industrial motor drive applications.
Technical Specifications
| Model |
3BHE021951R0124 / KVC758 A124 |
| Manufacturer |
ABB |
| Input Voltage |
DC 9-36V |
| Operating Voltage |
220V nominal |
| Output Frequency |
30 kHz nominal |
| Isolation Voltage |
1500V DC |
| Operating Temperature |
+5 degC to +55 degC |
| Storage Temperature |
-40 degC to +70 degC |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the drive system is fully powered down and locked out before attempting to install or remove this module.
- Handle the module using proper ESD (Electrostatic Discharge) protection measures to prevent damage to internal circuitry.
- Verify that all terminal connections are secure and that the module is properly seated in its designated slot within the drive cabinet.
- Ensure adequate ventilation around the module to maintain operating temperatures within the specified range of +5 degC to +55 degC.
- Route signal and power cables away from high-EMI sources to maintain signal integrity.
FAQs
What is the primary function of the 3BHE021951R0124?
The module acts as an Isolated Power Supply (IPS) for the excitation control system in medium and high-voltage frequency converters, providing regulated power and signal isolation.
Which ABB drives are compatible with this module?
This module is a specialized spare part designed for the ABB ACS5000 water-cooled drive series.
What is the warranty period for this unit?
We provide a 12-month warranty on this module from the date of delivery. Please contact our support team if you encounter any operational issues.
