Description

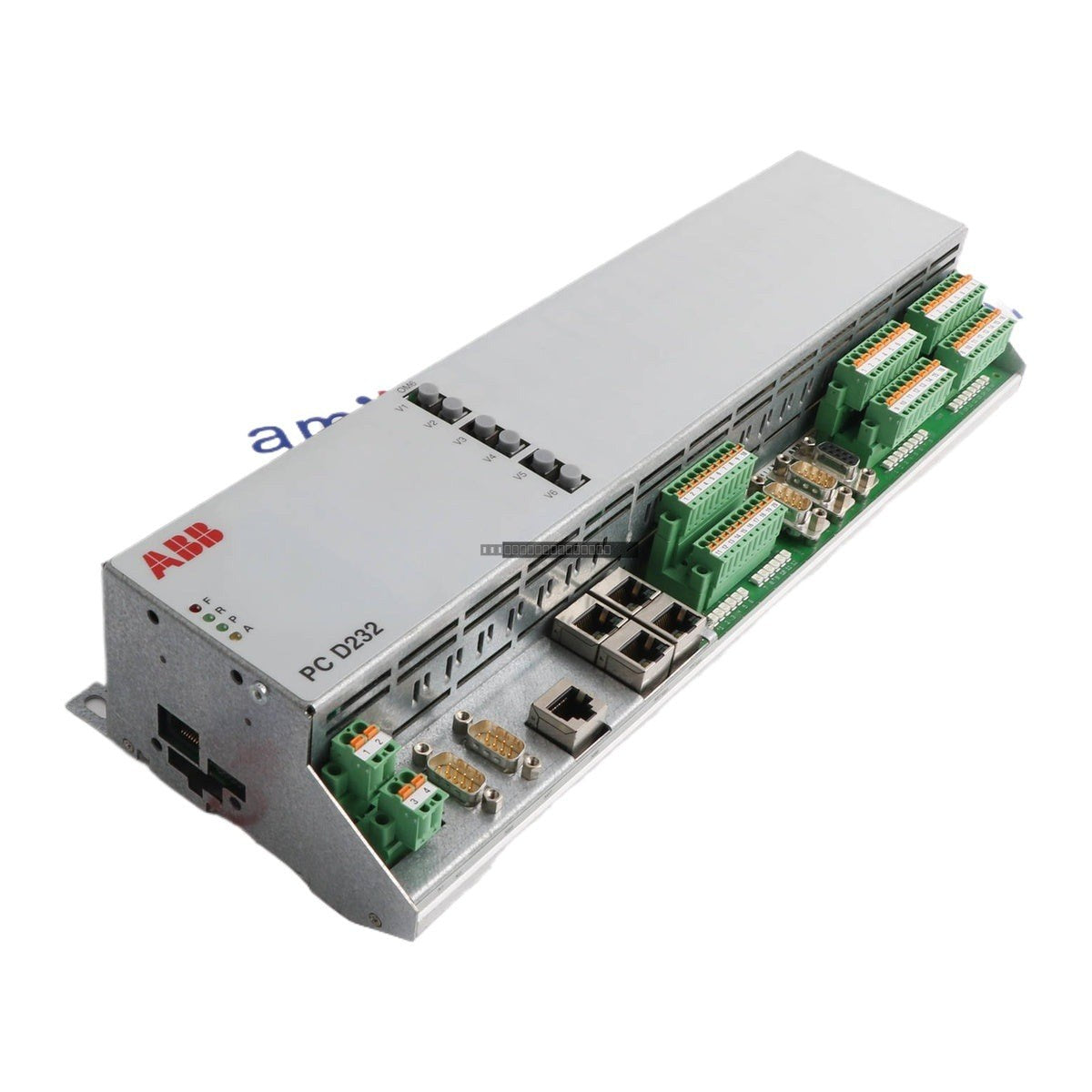

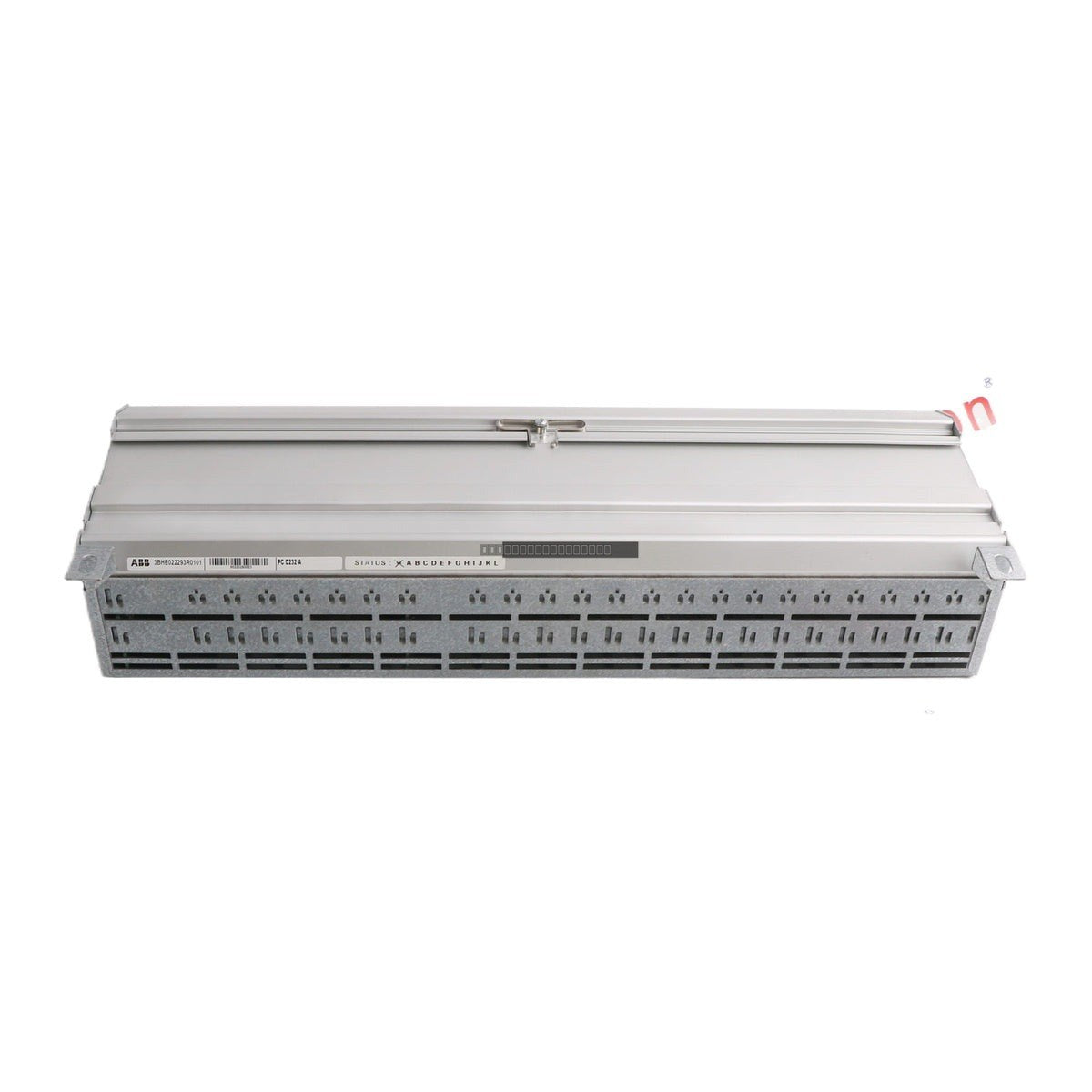

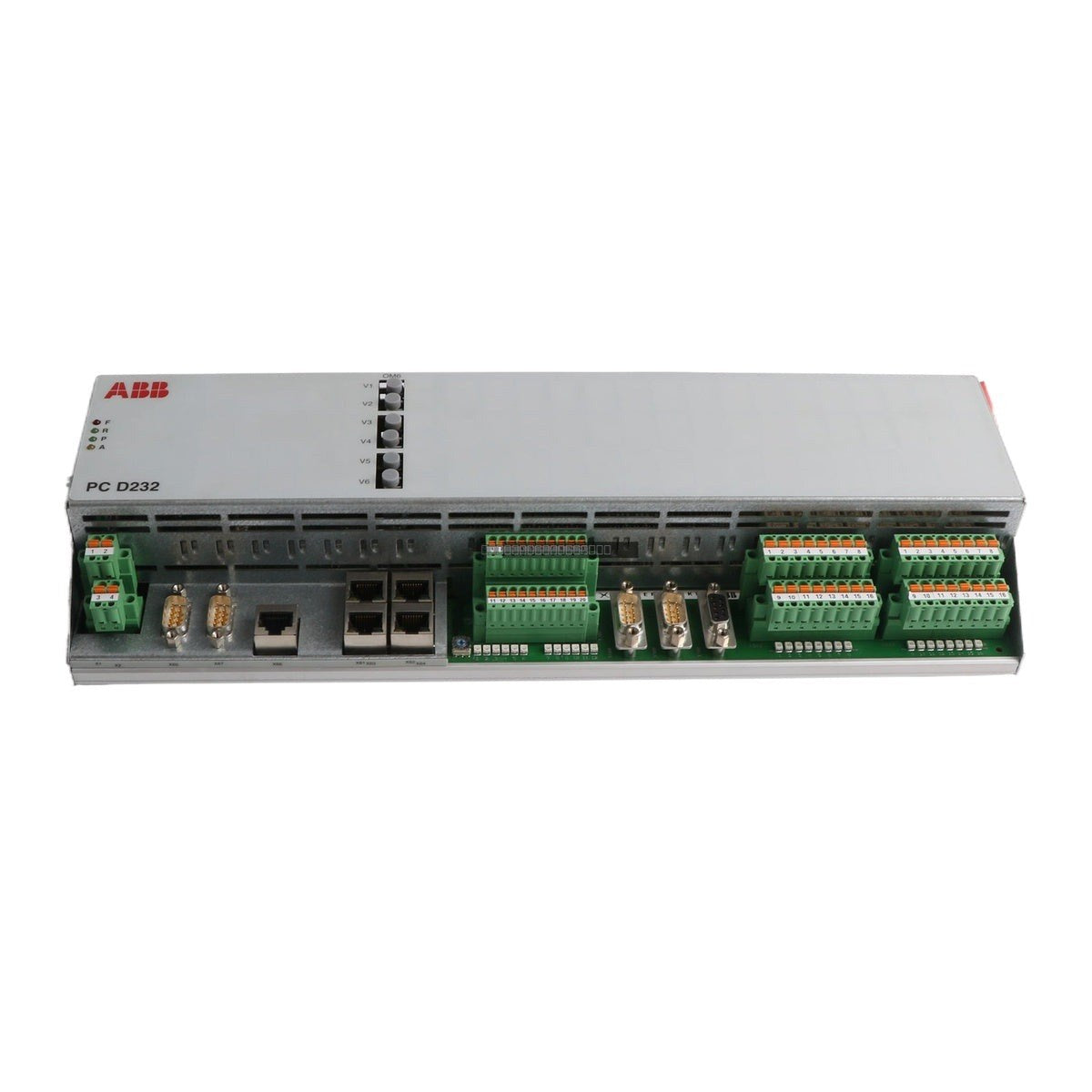

The ABB 3BHE022293R0101 (PCD232A) is a high-performance controller module designed for the AC 800PEC industrial control system. Engineered for demanding automation environments, this module provides robust processing capabilities for real-time control applications.
Features
- Integrated 32-bit RISC processor for efficient task execution.
- Configurable clock speed ranging from 100 MHz to 200 MHz.
- Reliable memory architecture with 32-64 MB RAM and 16-32 MB Flash memory.
- Galvanic isolation of 1500V AC between input and output channels for enhanced signal integrity.
- Designed for operation in a wide temperature range, suitable for various industrial plant conditions.
Technical Specifications
| Product Model |
3BHE022293R0101 PCD232A |
| Operating Voltage |
24V DC |
| Power Consumption |
8-15W |
| Operating Temperature |
-20 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
5-95% non-condensing |
Installation Guidelines
- Ensure the control cabinet is properly grounded to prevent EMI interference.
- Power down the system before inserting or removing the module from the rack to prevent electrical damage.
- Verify that the supply voltage is stable at 24V DC before powering on.
- Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.
- Handle the module using ESD-safe practices to protect internal electronic components.
FAQ
What is the primary function of the PCD232A module?
The PCD232A is a controller module used within the ABB AC 800PEC platform to manage real-time processing and control logic for industrial automation systems.
Is this module compatible with other AC 800PEC components?
Yes, it is designed specifically for the AC 800PEC series. Please verify your system hardware revision to ensure full compatibility with the 3BHE022293R0101 order code.
