Description

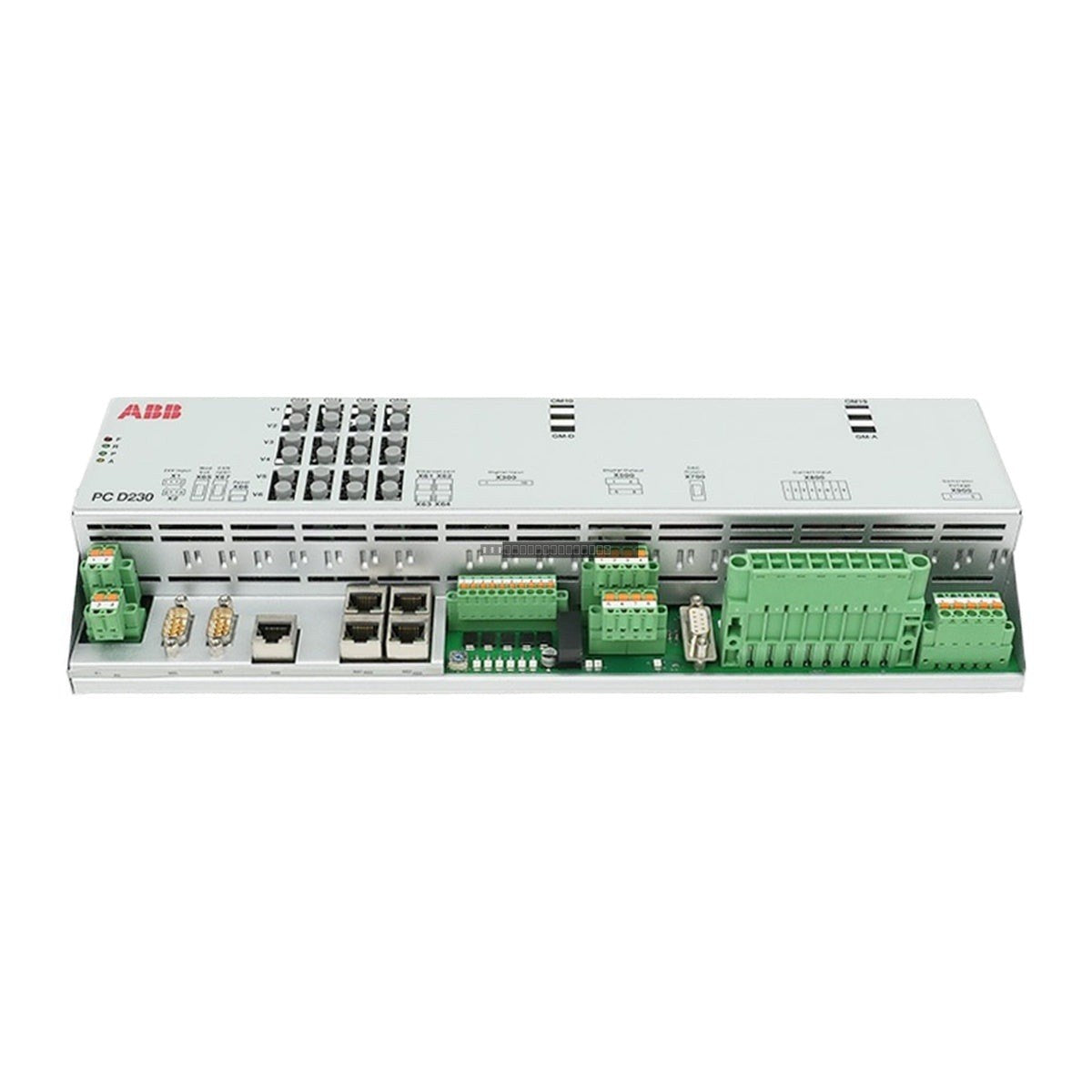

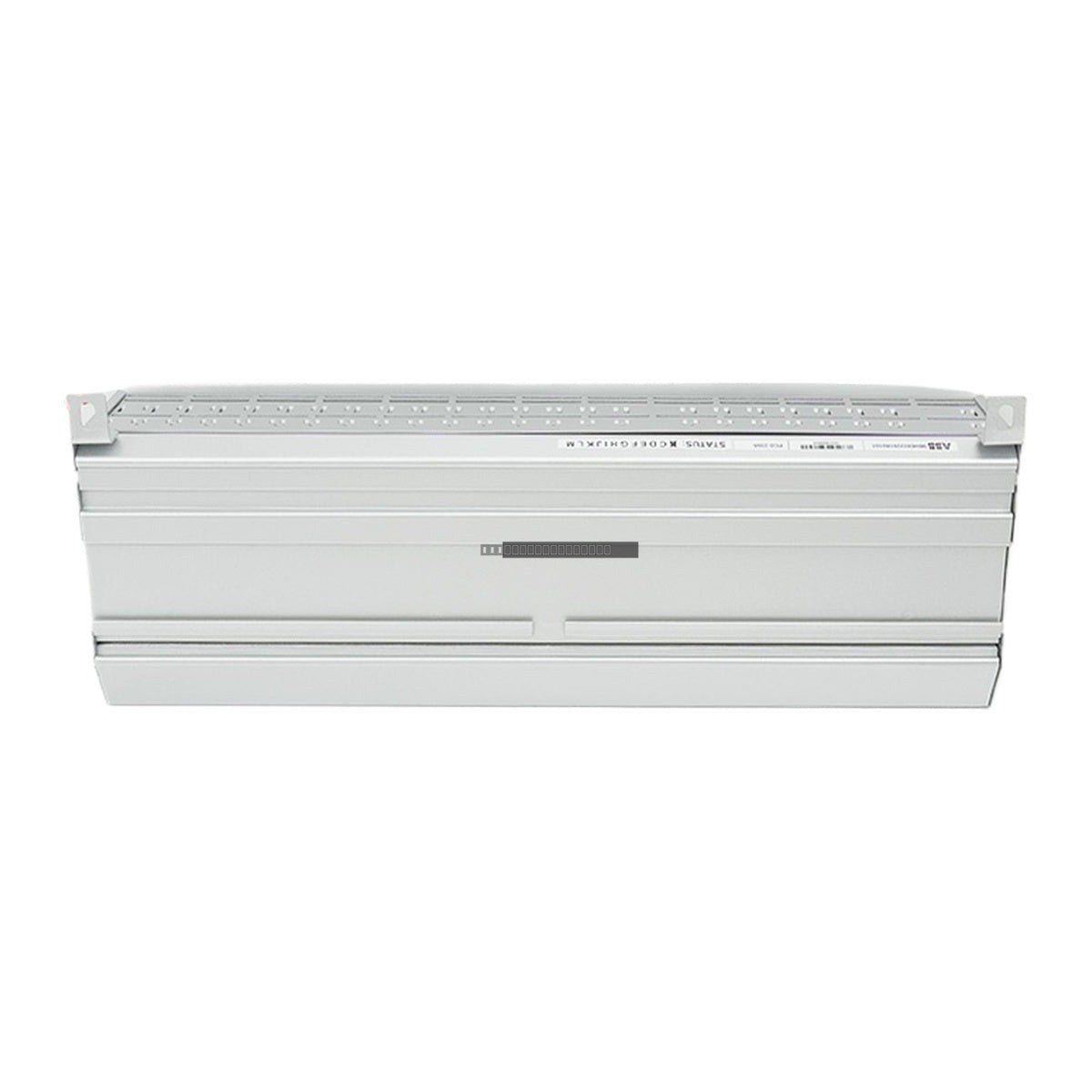

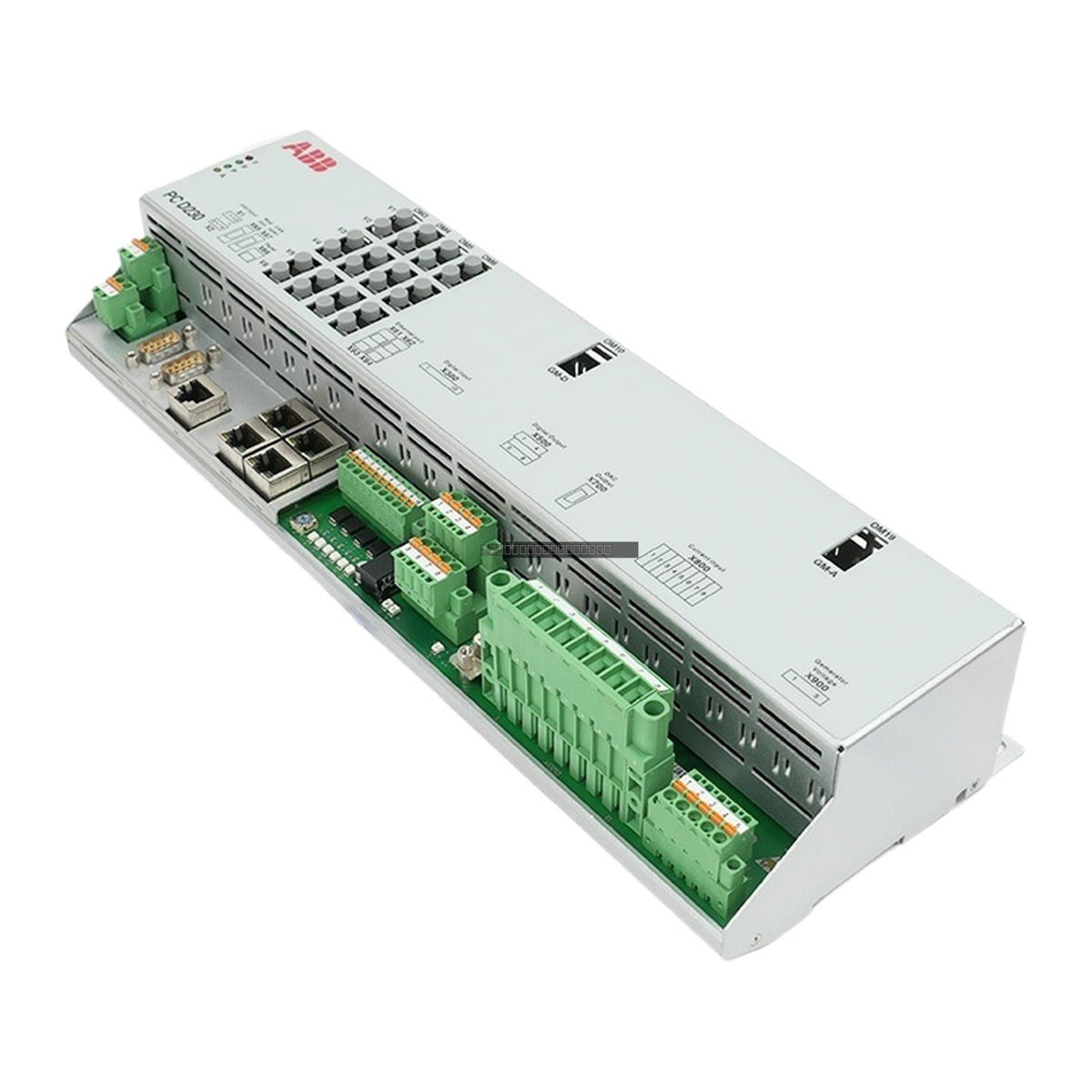

The ABB 3BHE022291R0101 (PCD230A) is an Excitation Controller Module designed for the AC 800PEC control system. This communication I/O module facilitates reliable data exchange and control signal processing within industrial automation environments, specifically engineered for excitation control applications.
Features
- Designed for integration with the ABB AC 800PEC control platform.
- Functions as a dedicated Excitation Controller Module (PEC80-CCM).
- Supports high-speed communication with data rates ranging from 9.6kbps to 12Mbps.
- Equipped with a 9-pin D-sub connector for standard industrial fieldbus connectivity.
- Features robust electrical isolation of 1500V AC to protect internal circuitry from transients.
- Low power consumption profile, typically 3.5W.
Technical Specifications
| Product Model |
3BHE022291R0101 (PCD230A) |
| Manufacturer |
ABB |
| Supply Voltage |
24V DC (+/- 10%) |
| Power Consumption |
3.5W (typical) |
| Data Rate |
9.6kbps to 12Mbps |
| Connector Type |
9-pin D-sub |
| Isolation |
1500V AC |
| Operating Temperature |
-25 degC to +60 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Relative Humidity |
5-95% (non-condensing) |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module to prevent electrical damage.
- Mount the module in a clean, dry, and vibration-free environment, ensuring adequate airflow for cooling.
- Use shielded cables for communication connections to minimize EMI/RFI interference.
- Verify that the 24V DC power supply is stable and within the specified +/- 10% tolerance range.
- Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
- Check all D-sub connector pins for proper alignment and secure the locking screws to ensure a reliable physical connection.
FAQ
What is the primary function of the PCD230A module?
The PCD230A is an excitation controller module used within the ABB AC 800PEC system to manage and communicate control signals for excitation processes.
What is the typical power requirement for this module?
The module operates on a 24V DC supply and consumes approximately 3.5W of power during typical operation.
