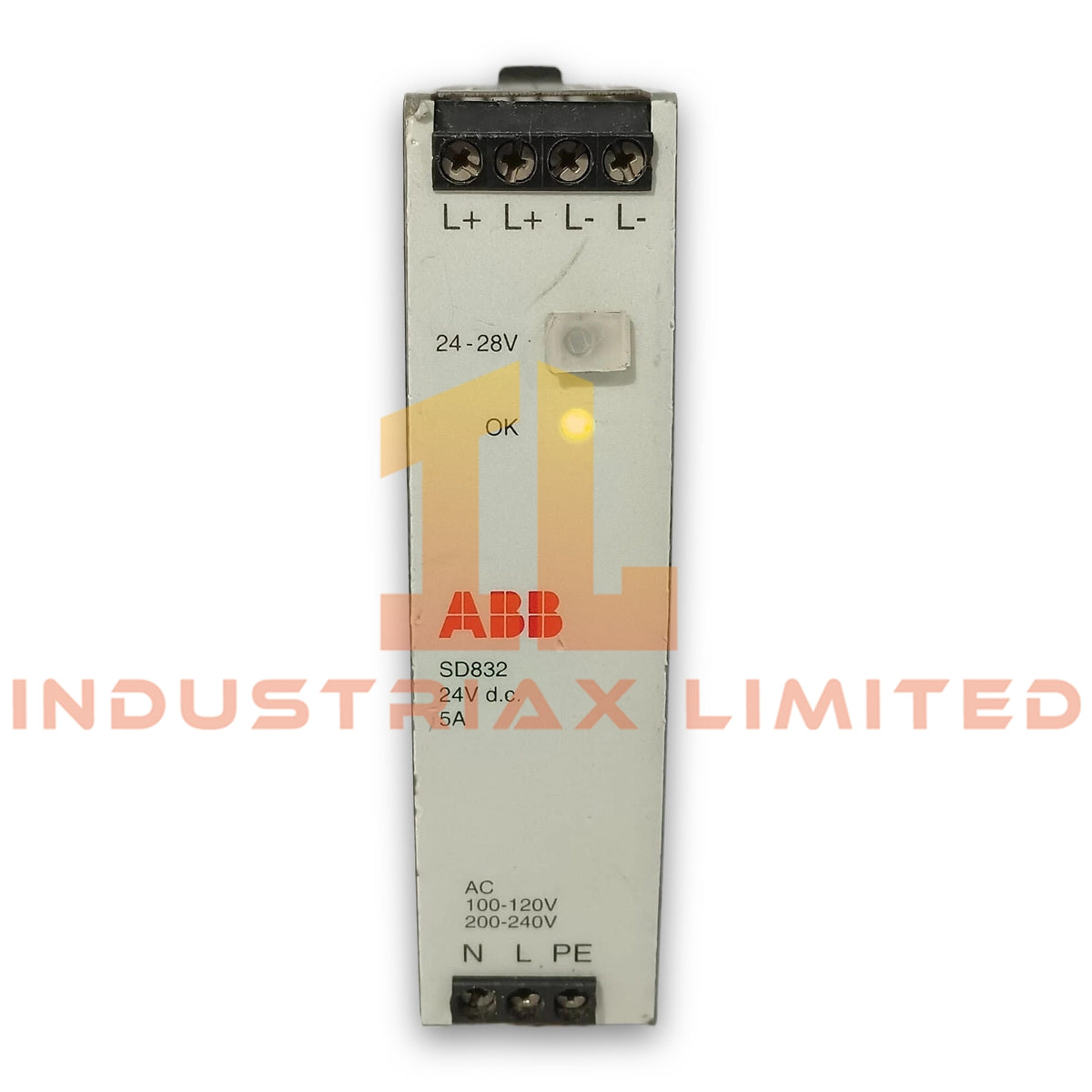

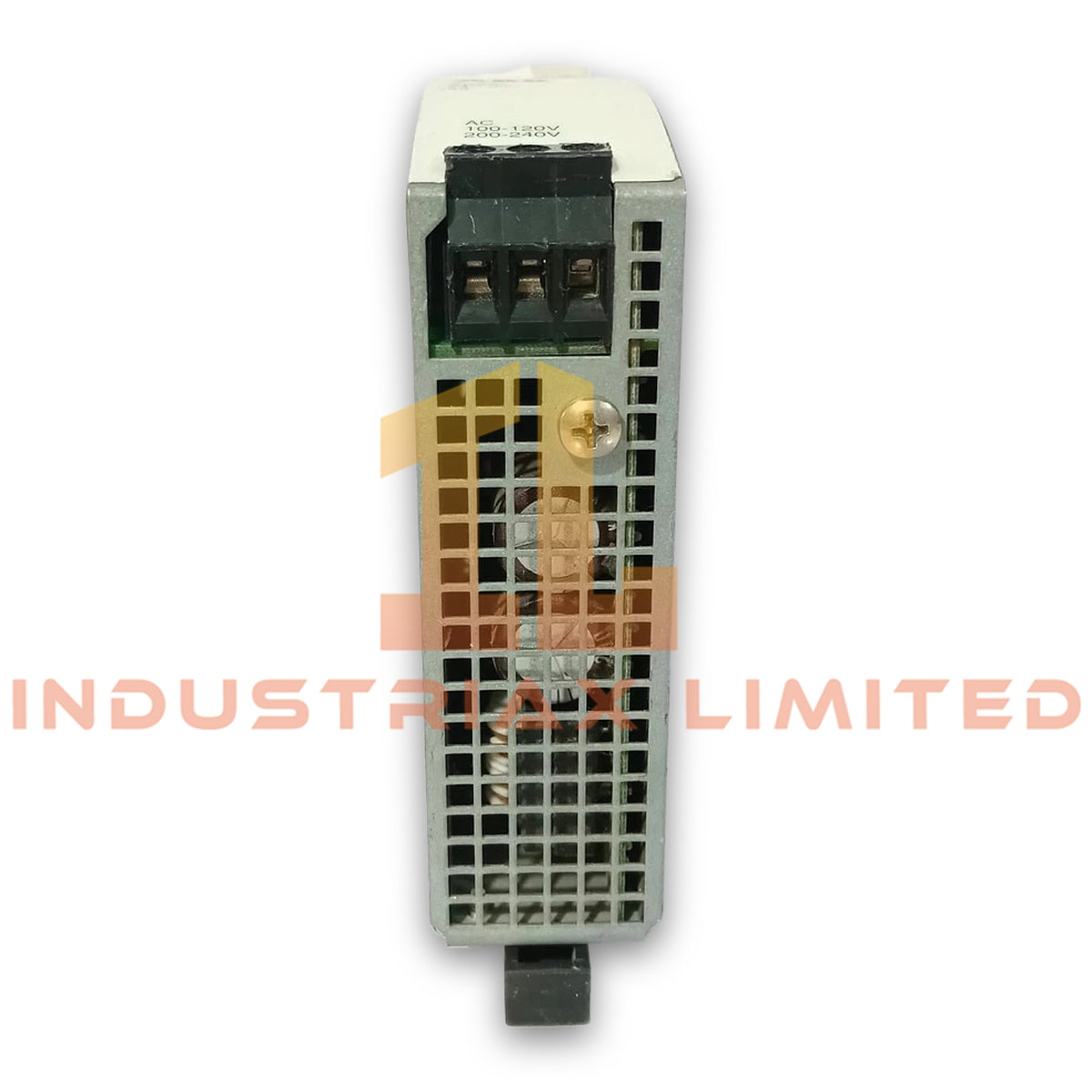

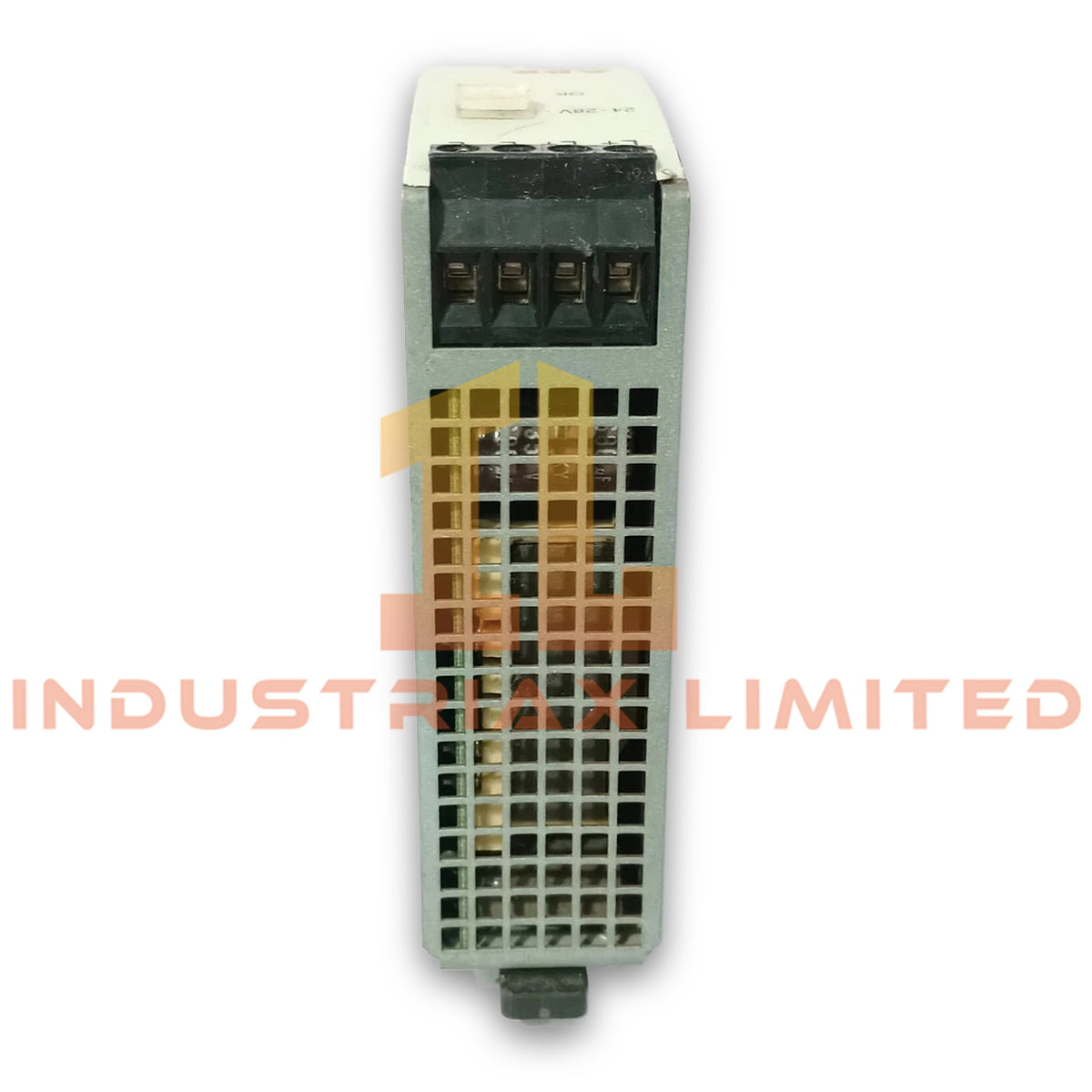

ABB SD832 3BSC610065R1 Power Supply Module
Configured for 24 VDC power conversion in ABB System 800xA and AC 800M automation platforms, the ABB SD832 3BSC610065R1 (SD832 Power Supply Module) provides direct electrical power conditioning for control system devices. The module converts 100-120 VAC or 200-240 VAC input power into a regulated 24 VDC output with a rated current of 5 A.
Hardware Specifications
Parameter
Specification
Model
SD832 3BSC610065R1
Brand
ABB
Product Type
Power Supply Module
Origin
Sweden
Weight
0.48 kg
Dimensions
3.2 x 12 x 13 cm
Power Consumption
120 W rated output power
Input Voltage
100-120 VAC / 200-240 VAC, auto-select input
Input Power
240 VA / 283 VA
Output Voltage
24 VDC
Rated Output Current
5 A
Tariff Code
8537101190
Application Platform
ABB System 800xA / AC 800M automation systems
Backplane Power Integration and Industrial Control Compatibility
The ABB SD832 power supply module supports ABB industrial controller architectures by providing regulated DC power for connected control components. Therefore, correct integration with the system power distribution structure maintains stable voltage delivery across automation assemblies.
The module design follows ABB PLC and DCS power supply requirements, including controlled DC output behavior for I/O modules and communication components. Furthermore, ABB power architecture supports system configurations requiring coordinated power distribution and monitoring.
The SD832 operates as part of ABB industrial control systems where power modules connect with controller racks, I/O assemblies, and auxiliary automation devices. It provides the electrical conversion function required between AC mains sources and 24 VDC control circuits.
Frequently Asked Questions
Q: What input voltage range does the ABB SD832 3BSC610065R1 support? A: The SD832 supports 100-120 VAC and 200-240 VAC nominal input voltage through an auto-select input design.
Q: What is the rated DC output capability of the SD832 module? A: The module provides a 24 VDC output with a rated output current of 5 A and rated output power of 120 W.
Q: Can the SD832 be installed in ABB automation systems with other power modules? A: The SD832 can be integrated according to ABB system power configuration requirements. Installation must follow rack layout, wiring, grounding, and load distribution specifications.
Field Installation Guidelines
Install the SD832 module according to ABB rack and cabinet installation procedures.
Verify the AC input voltage range before connecting field power wiring.
Connect protective grounding according to industrial electrical installation standards.
Keep AC input wiring separated from low-level signal cables to reduce electrical interference.
Use properly rated conductors for AC input and 24 VDC output connections.
Check output polarity before connecting external control devices.
Maintain adequate cabinet ventilation and avoid installation conditions outside the specified environmental limits.
