Description

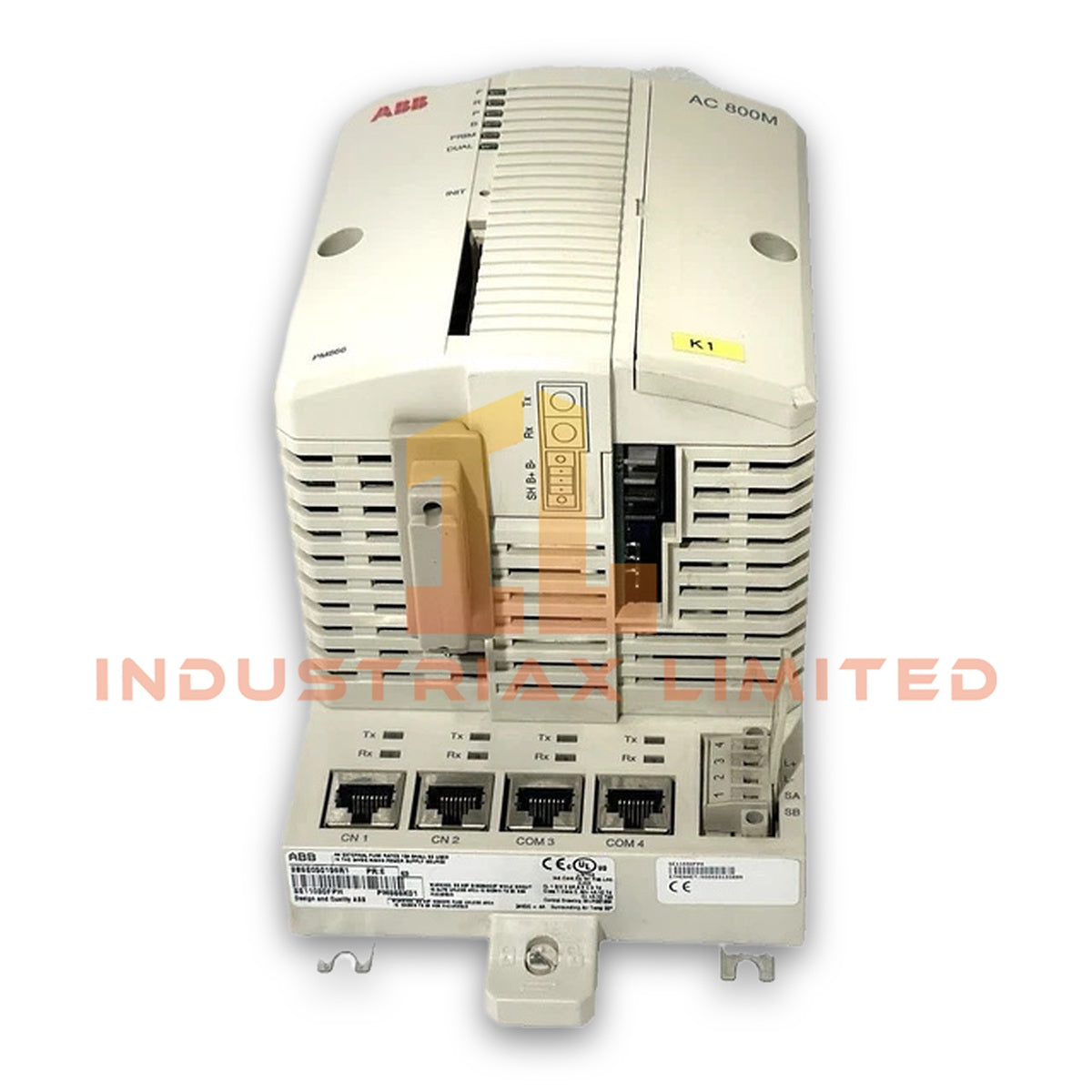

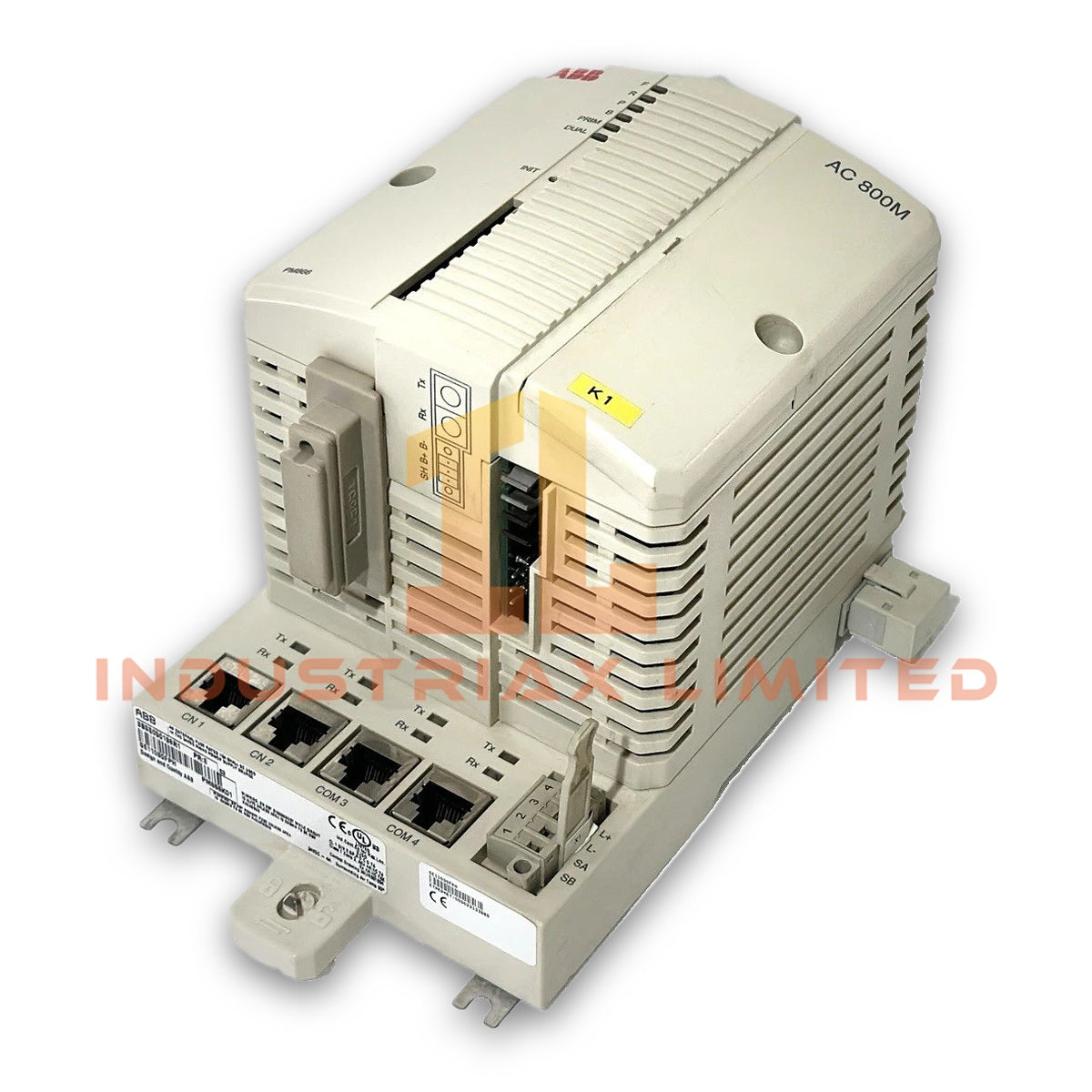

ABB PM866K01 3BSE050198R1 Processor Unit Kit

Configured for controller execution and processor management in the ABB AC 800M control system, the ABB PM866K01 3BSE050198R1 (PM866K01 Processor Unit Kit) provides direct physical and electrical execution for CPU processing, firmware storage, and Ethernet communication functions.

Hardware Specifications

Parameter	Specification
Model	PM866K01 3BSE050198R1
Brand	ABB
Product Type	Processor Unit Kit
System Platform	ABB AC 800M Control System
Origin	Sweden
Weight	0.8 kg
Dimensions	19 x 12 x 13.8 cm (shipping size)
Operating Temp	0 to +55 deg C
Storage Temp	-40 to +70 deg C
Power Supply	24 VDC (19.2-30 VDC)
Power Consumption	5.1 W typical, 8.6 W maximum
Flash PROM for Firmware Storage	4 MB
Ethernet Channels	2
Recommended Control Network Backbone	100 Mbit/s switched Ethernet
Relative Humidity	5 to 95 %, non-condensing
Dielectric Test Voltage	50 V

Firmware Flash Compatibility and Ethernet Control Network

The ABB PM866K01 integrates firmware storage and controller communication functions through the AC 800M processor architecture. The unit provides 4 MB Flash PROM memory for firmware retention and supports two Ethernet channels for control network communication.

Furthermore, the processor supports 100 Mbit/s switched Ethernet backbone configurations, which enable deterministic data exchange between controller nodes and connected system components. The hardware architecture maintains compatibility with ABB AC 800M firmware management procedures and controller configuration tools.

Frequently Asked Questions

Q: What is the primary function of the ABB PM866K01 3BSE050198R1?

A: The PM866K01 operates as a processor unit kit for the ABB AC 800M platform. It executes controller application logic, manages firmware storage, and handles Ethernet-based communication tasks.

Q: What power supply range does the PM866K01 support?

A: The processor unit accepts a 24 VDC power input with an operating range of 19.2 to 30 VDC.

Q: How many Ethernet communication channels are available on this processor unit?

A: The PM866K01 provides two Ethernet channels for AC 800M control network communication.

Field Installation Guidelines

Install the PM866K01 according to ABB AC 800M hardware configuration requirements. Verify that the module is correctly seated in the controller mounting position before applying power.

Maintain proper cabinet grounding and ensure that signal cables remain separated from high-voltage power wiring. Use suitable shielding and grounding methods for Ethernet and control signal connections to reduce electrical interference.

Before firmware loading or controller replacement procedures, confirm hardware compatibility with the installed AC 800M system configuration. Follow ABB engineering documentation for commissioning, diagnostics, and maintenance operations.

Specifications

• Brand: ABB

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
