Description

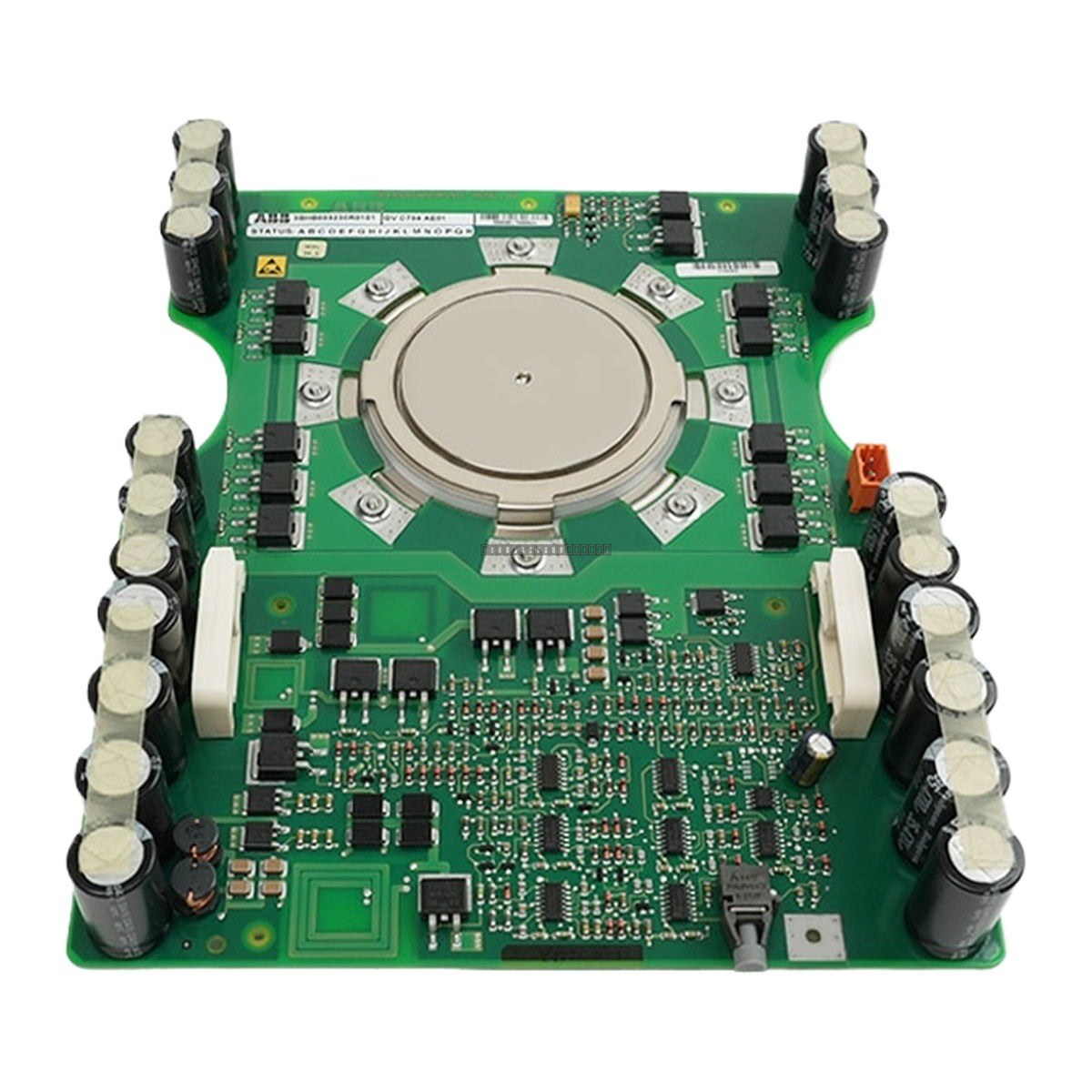

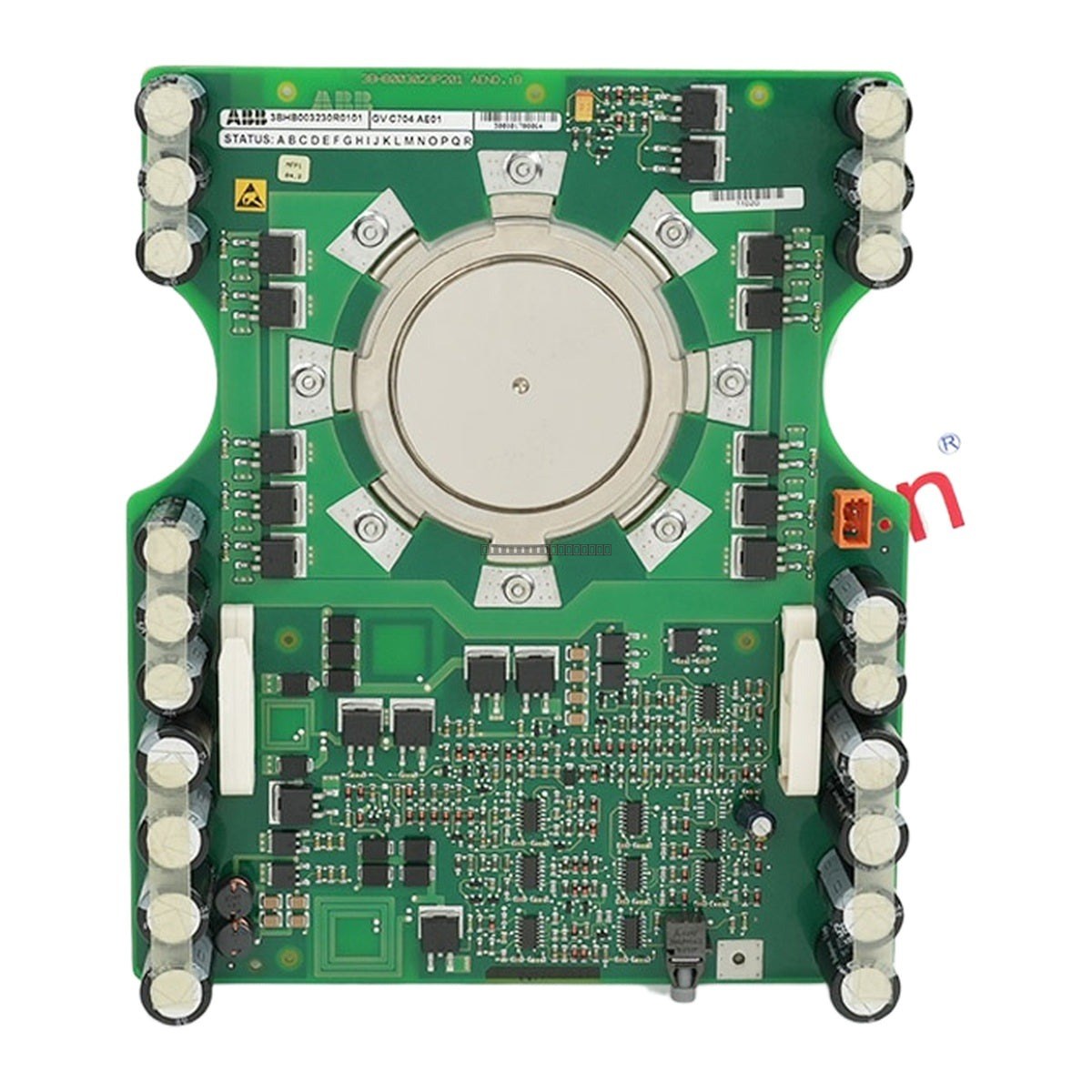

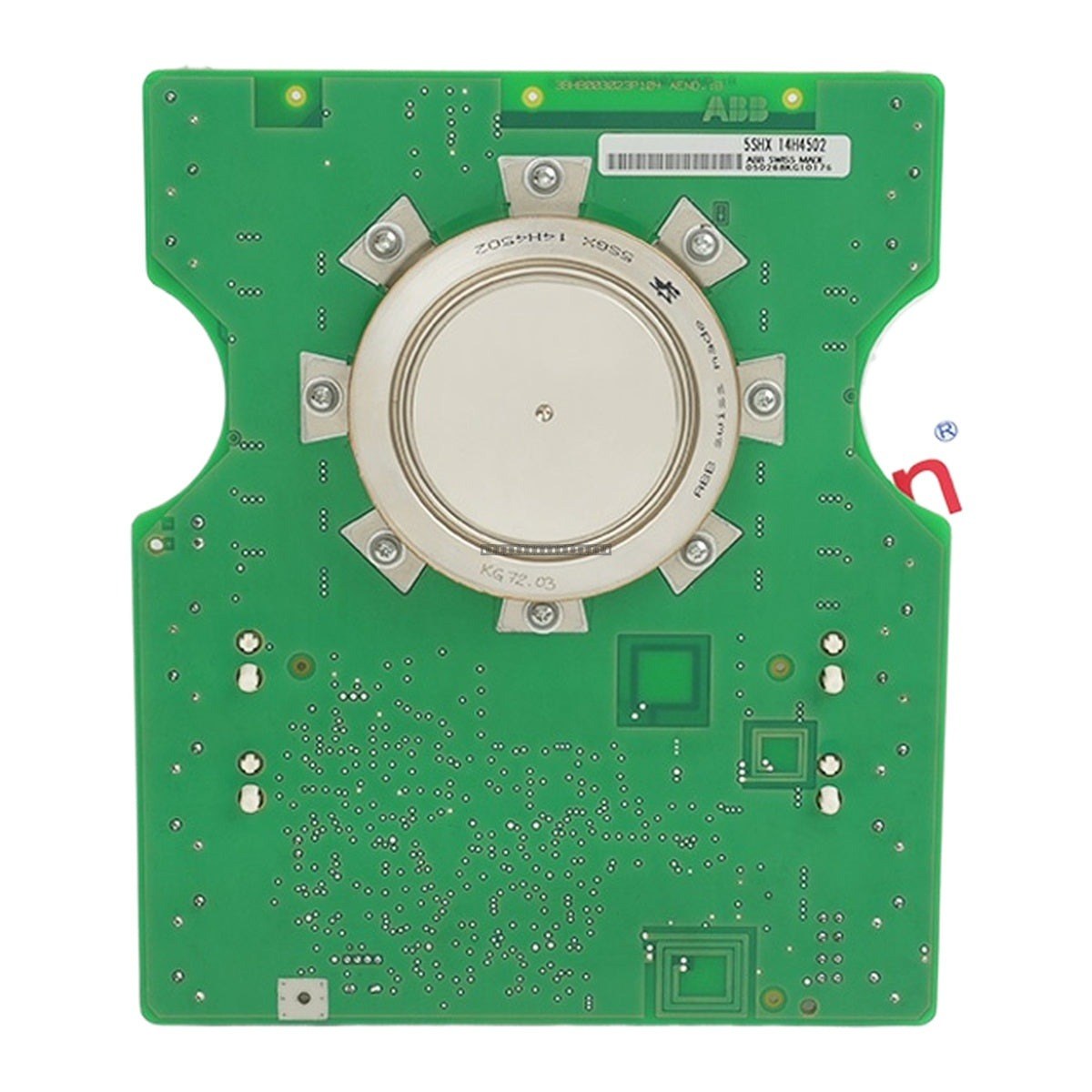

The ABB 5SHX14H4502 (also identified by order code 3BHB003230R0101 and GVC704 AE01) is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module designed for medium-voltage power drive applications. This power semiconductor component is engineered for demanding industrial environments, providing reliable switching capabilities in high-power conversion systems.
Features
- High-power switching performance for medium-voltage drive systems.
- Robust construction suitable for heavy-duty industrial power electronics.
- Integrated gate-commutated design for efficient operation.
- Designed for high-current and high-voltage applications.
Technical Specifications
| Model Number |
5SHX14H4502 / 3BHB003230R0101 |
| Component Type |
IGCT Module |
| Voltage Rating (VCES) |
4500 V |
| Current Rating (ITAVM) |
2100 A |
| Power Losses |
1.0 - 2.5 kW |
| Operating Temperature |
-40 degC to +125 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
< 95% RH (non-condensing) |
Installation Guidelines
- Ensure the mounting surface is clean, flat, and free of debris to maintain optimal thermal contact.
- Use appropriate thermal interface material as specified by the manufacturer to ensure efficient heat dissipation.
- Handle with care to avoid damage to the gate terminals and ceramic housing; these components are sensitive to mechanical shock.
- Verify that the cooling system (liquid or air) is fully operational before applying power.
- Ensure all electrical connections are torqued to the manufacturer's specified values to prevent arcing or localized overheating.
- Always follow standard ESD (Electrostatic Discharge) precautions during handling and installation.
FAQ
What is the primary function of the 5SHX14H4502 module?
This module is an IGCT (Integrated Gate-Commutated Thyristor) used as a power semiconductor switch in medium-voltage drives and power conversion equipment.
What are the critical environmental requirements for this module?
The module is designed to operate within a temperature range of -40 degC to +125 degC and should be kept in environments with less than 95% relative humidity to prevent condensation-related failures.
Is this module suitable for high-current applications?
Yes, this specific model is rated for 2100 A (ITAVM), making it suitable for high-power industrial drive applications.
