Description
Overview

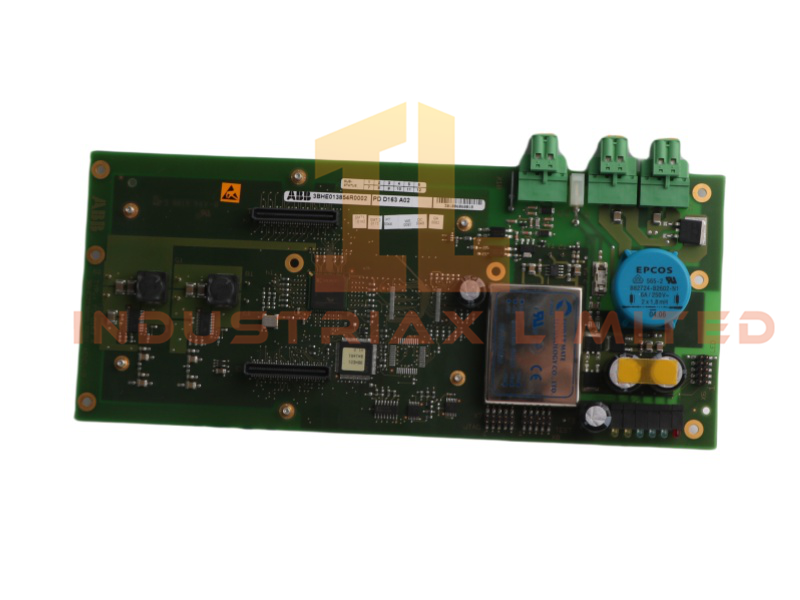

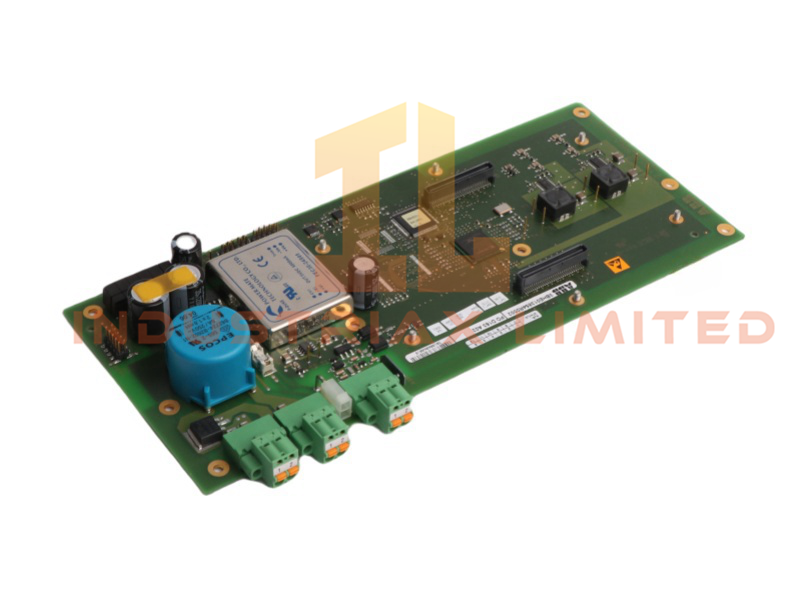

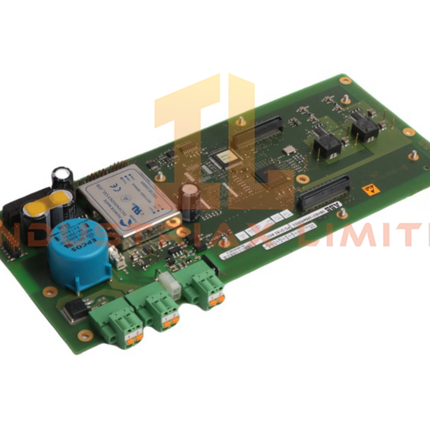

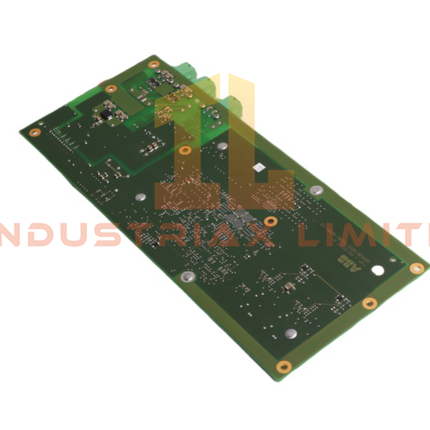

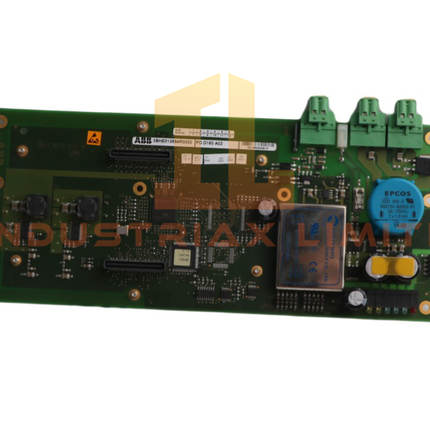

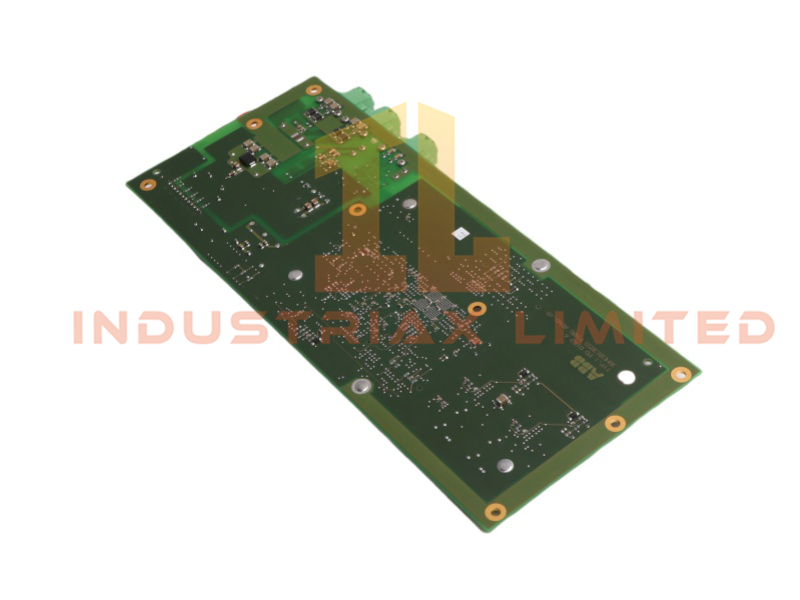

The ABB 3BHE013854R0002 PDD163 A02 Inverter Main Board from the UNITROL Excitation Systems range delivers high-speed processing and reliable performance. ABB designed this module with advanced computing power, compact dimensions of 27.1x2.8x12.9 cm, and a lightweight 0.28 kg build, making it ideal for integration into modern DCS systems.
Technical Specifications
| Parameter |
Value |
| Model Number |
3BHE013854R0002 PDD163 A02 |
| Module Type |
Inverter Main Board |
| Manufacturer |
ABB |
| Product Range |
UNITROL Excitation Systems |
| System Compatibility |
DCS |
| Dimensions |
27.1x2.8x12.9 cm |
| Weight |
0.28 kg |
| Processor |
2.5 GHz |
| Memory |
4 GB DDR4 |
| Storage |
64 GB SSD |
| Input Channels |
24 |
| Output Channels |
16 |
| Power Supply Range |
120V AC – 240V AC |
| Operating Temperature |
-20°C to +60°C |
| Certifications |
UL, CE, ISO 9001 |
| Communication Service |
Ethernet router |
| HS Code |
8537101190 |
| Origin |
Sweden |
| Condition |
Brand New |
| MOQ |
1 |
| Status |
Active |
Functional Description
The ABB 3BHE013854R0002 PDD163 A02 integrates a 2.5 GHz processor that accelerates data processing, ensuring precise control in complex industrial systems. Engineers benefit from 4 GB DDR4 memory and 64 GB SSD storage, which enhance responsiveness and reduce downtime.
Its 24 input and 16 output channels provide extensive connectivity, enabling seamless integration with sensors and actuators. The wide power supply range of 120V AC to 240V AC ensures adaptability across diverse electrical infrastructures.
Certified to UL, CE, and ISO 9001 standards, the 3BHE013854R0002 PDD163 A02 guarantees compliance with international safety and quality requirements. Its rugged design supports reliable operation in temperatures from -20°C to +60°C, making it suitable for harsh industrial environments.
