Description
Overview

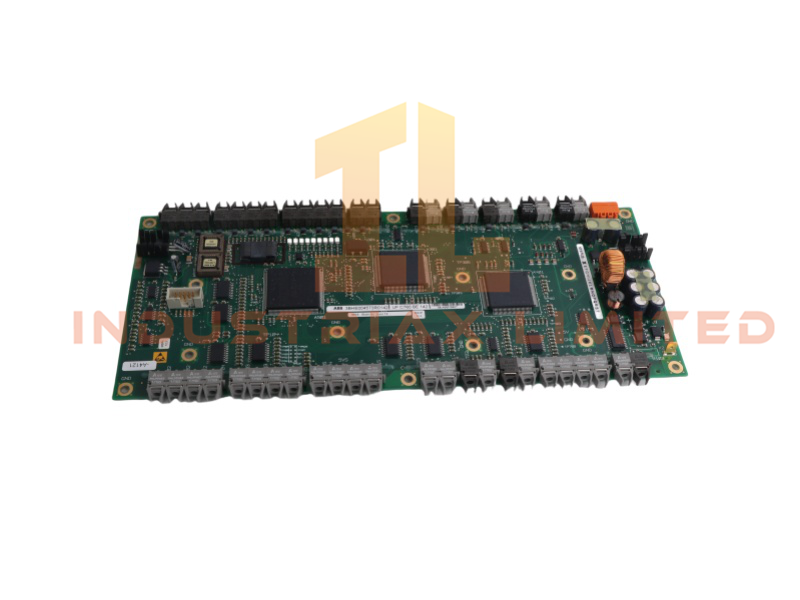

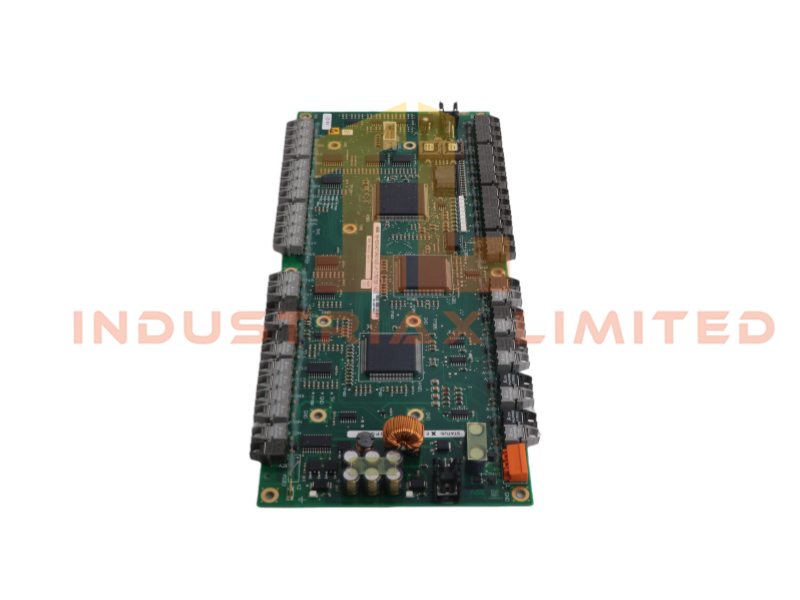

The 3BHE004573R0142 / UFC760 BE142 analog I/O module is engineered for ABB UNITROL excitation platforms, providing precise analog signal acquisition and output control for generator regulation and industrial process applications. Its durable construction and stable signal handling make it suitable for continuous operation in demanding DCS environments.
Technical Specifications
General Information
-
Model: 3BHE004573R0142 / UFC760 BE142
-
Manufacturer: ABB
-
Product Type: Analog I/O Module
-
Product Range: UNITROL Excitation Systems
-
System Compatibility: DCS / Excitation Control
-
Operating Status: Active
Mechanical Data
-
Dimensions: 33 × 15.8 × 3 cm
-
Weight: 0.36 kg
-
PCB designed for vibration resistance and thermal stability
-
Modular form factor for easy installation and replacement
Electrical & Functional Characteristics
-
Supports multiple analog input and output channels
-
High‑accuracy signal conditioning for excitation and process control
-
Stable performance under fluctuating load and environmental conditions
-
Integrated protection for overvoltage, noise, and transient events
-
Designed for continuous duty in generator excitation systems
Communication & Integration
-
Interfaces optimized for UNITROL controller communication
-
Compatible with legacy and current UNITROL excitation platforms
-
Flexible configuration options for diverse control strategies
-
Supports integration into distributed control architectures
Environmental Ratings
-
Suitable for turbine halls, generator rooms, and industrial control cabinets
-
Built to withstand electrical noise, humidity, and temperature variation
-
Manufactured according to ISO 9001:2015 quality standards
Diagnostics & Maintenance
-
On‑board indicators for channel and module status
-
Built‑in diagnostics for fault detection and system monitoring
-
Modular design simplifies field replacement and reduces downtime
Application Scenarios
-
Generator excitation control loops
-
Analog signal acquisition for process automation
-
UNITROL system upgrades and expansions
-
Industrial environments requiring precise analog I/O handling
FAQ
Q: Is the 3BHE004573R0142 / UFC760 BE142 compatible with older UNITROL systems? A: Yes, it supports multiple UNITROL generations, though verifying controller revision compatibility is recommended.
Q: What types of analog signals does the module support? A: It handles standard industrial analog ranges used in excitation and process control applications.
Q: Does the module require calibration? A: Calibration depends on system requirements; ABB engineering tools support configuration and verification.
