Description
Product Overview

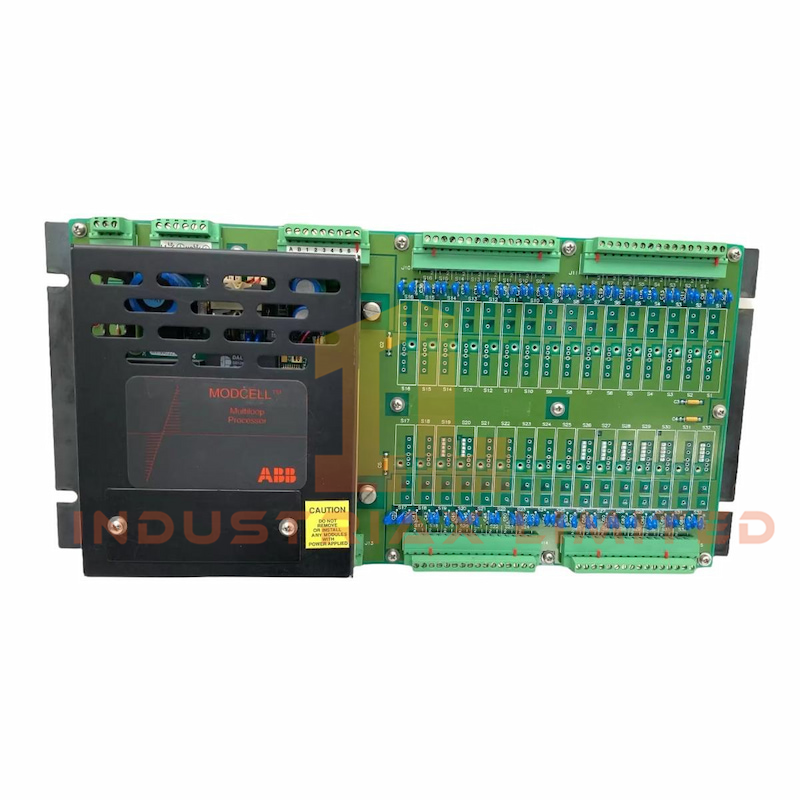

The ABB 2002NZ10801C MODCELL Multiloop Processor is a high-speed event monitoring unit designed for MicroMod process control systems. It scans up to 29 digital inputs every millisecond, applying debounce filtering and timestamping transitions for precise event tracking.
Technical Specifications
| Attribute |
Detail |
| Manufacturer |
ABB |
| Part Number |
2002NZ10801C |
| System Catalog |
MicroMod Process Control System |
| Function |
Multiloop Processor |
| Input Voltage |
24 Vdc |
| Current Draw |
1 A |
| Digital Inputs |
Up to 29 scanned per millisecond |
| Event Queue Capacity |
1024 entries |
| Time Accuracy |
1 millisecond |
| Sync Protocols |
RS-485 / OMEGA navigational system |
| Dimensions (mm) |
221 × 482 × 153 |
| Weight |
1.5 kg |
Key Features
-
High-Speed Scanning: Monitors 29 digital inputs every millisecond
-
Precise Timestamping: Embedded real-time clock with 1 ms resolution
-
Event Logging: Stores up to 1024 transitions for SOE analysis
-
Network Synchronization: RS-485 or OMEGA-based time sync across units
-
Pre-Configured Database: Identity Module includes controller firmware
-
Modular Expansion: Combine multiple units for extended input capacity
Application & Use Case
The 2002NZ10801C MODCELL is ideal for industrial automation, motor control, and alarm sequencing where precise input state tracking is critical. Its fast scanning and timestamping capabilities make it a cornerstone for event-driven diagnostics, safety systems, and process optimization.
