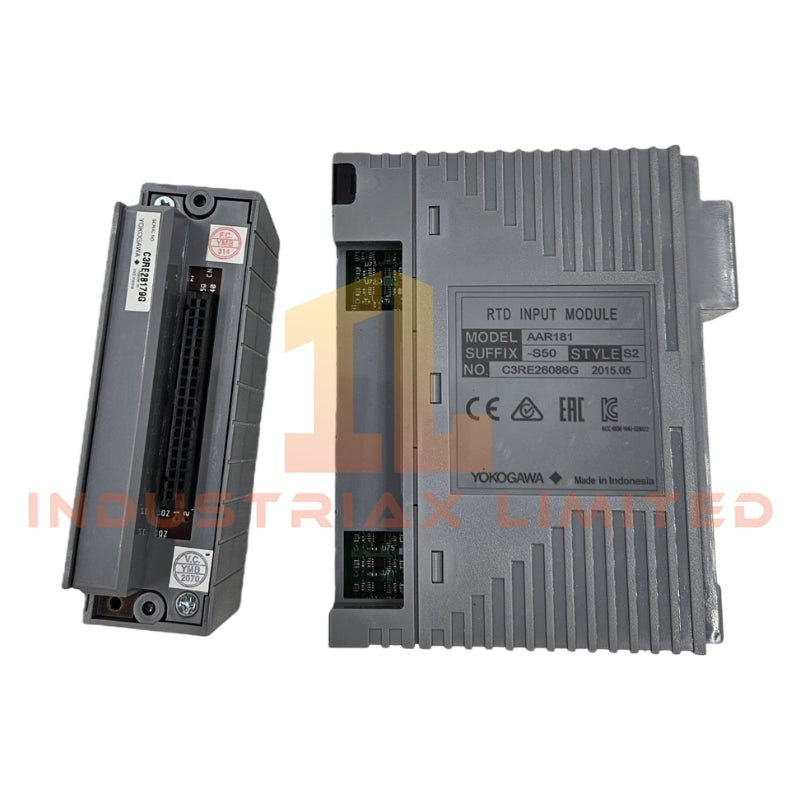

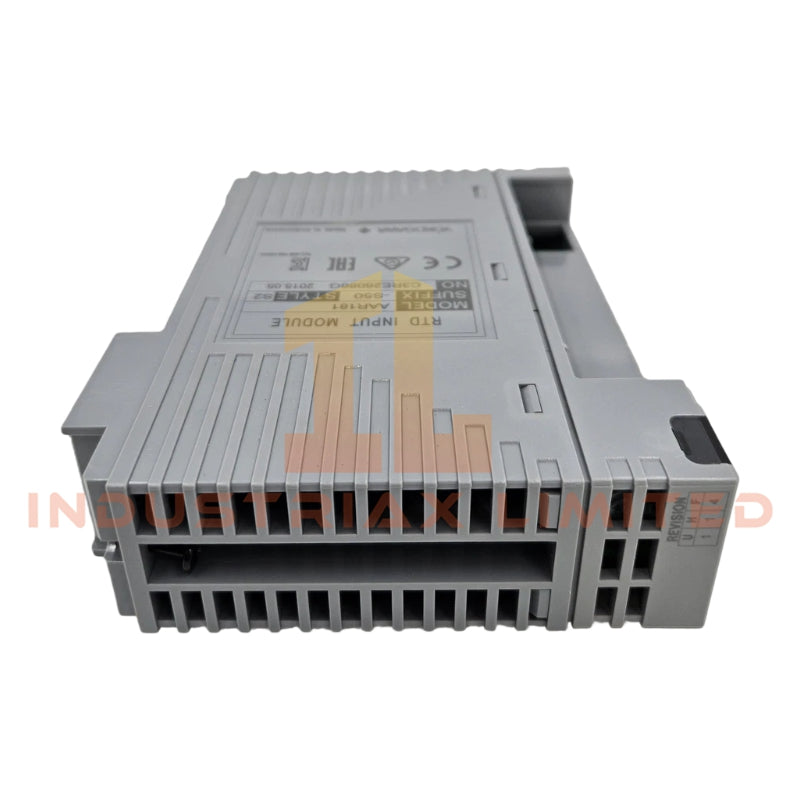

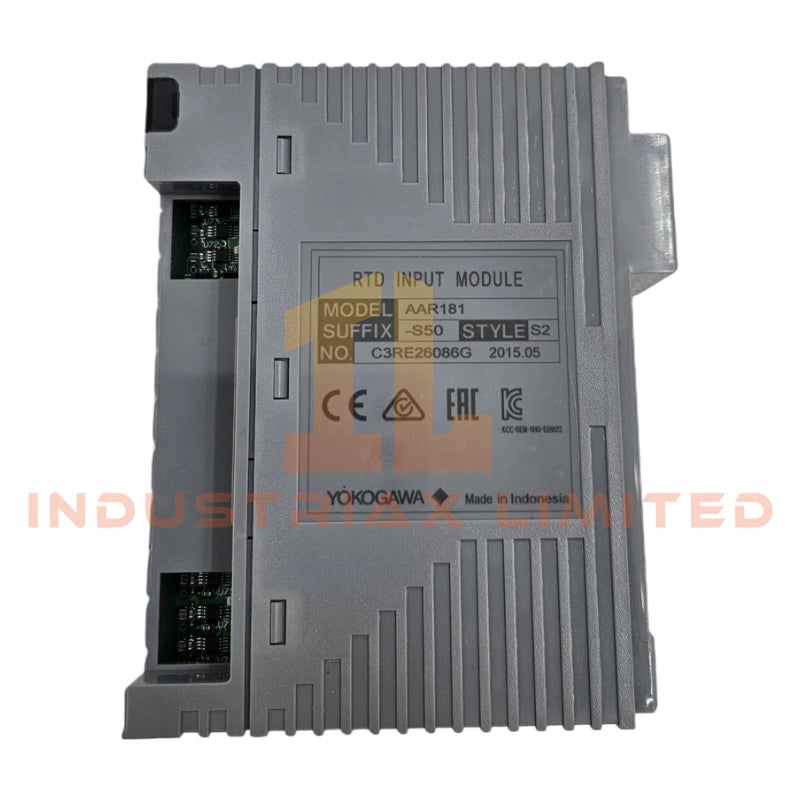

Yokogawa AAR181-S50 RTD Input Module
Configured for RTD and low-level analog signal acquisition in CENTUM and related Yokogawa DCS architectures, the Yokogawa AAR181-S50 (AAR181 RTD Input Module) provides direct physical and electrical execution for isolated multi-channel temperature input processing.
Suffix Breakdown & Model Matrix
| Parameter |
Specification |
| Base Model |
AAR181 |
| Full Model |
AAR181-S50 |
| Module Type |
RTD Input Module |
| Isolation Type |
Isolated Input |
| Configuration Support |
Dual-redundant compatible |
| Signal Categories |
RTD, thermocouple, mV input |
Hardware Specifications
| Parameter |
Specification |
| Model |
AAR181-S50 |
| Brand |
Yokogawa |
| Origin |
Japan |
| Module Type |
RTD Input Module |
| Input Channels |
12 channels |
| Signal Compatibility |
RTD, thermocouple (TC), mV signals |
| Isolation |
Channel isolation supported |
| Redundancy Support |
Dual-redundant system compatible |
| Terminal Connection |
Direct field terminal wiring |
| Cable Interface Option |
KS cable interface adapter supported |
| External Cable Option |
Customer-supplied MIL cable connection |
| Installation Method |
I/O rack mounting |
Channel Isolation and Temperature Signal Processing
The AAR181-S50 module processes resistance temperature detector and low-level analog temperature signals using isolated input circuitry intended for distributed process control environments. Channel-to-channel electrical isolation reduces common-mode interference propagation between field loops during mixed RTD and thermocouple deployments.
For thermocouple integration, cold junction compensation handling is executed through associated system-level temperature reference processing within the Yokogawa control platform. Signal acquisition for mV and RTD loops is internally conditioned prior to conversion and backplane transmission.
Frequently Asked Questions
Q: Does the AAR181-S50 support redundant controller configurations?
A: Yes. The module is specified for use in dual-redundant system architectures where redundant I/O processing paths are implemented at the DCS level.
Q: Can RTD and thermocouple inputs be mixed on the same module?
A: The module accepts RTD, thermocouple, and mV signal categories. Actual mixed-channel assignment behavior depends on the configured I/O definition within the host control system.
Q: Are external interface cable options available for cabinet integration?
A: Yes. The module supports direct terminal wiring, KS cable interface adapter connection, and customer-furnished MIL cable integration methods.
Field Installation Guidelines
-
Separate RTD and thermocouple signal wiring from high-voltage motor and inverter cabling to minimize induced noise coupling.
-
Maintain shield grounding at a single designated panel grounding point to reduce circulating ground loop current.
-
Verify RTD lead resistance consistency prior to field termination, particularly for long cable routing installations.
-
Use twisted-pair instrumentation cable for low-level mV and thermocouple circuits.
-
Confirm terminal polarity before energizing thermocouple input channels to prevent reverse temperature indication behavior.
-
During redundant system installation, validate module seating and backplane connector engagement before applying field signal loads.
