Product Description

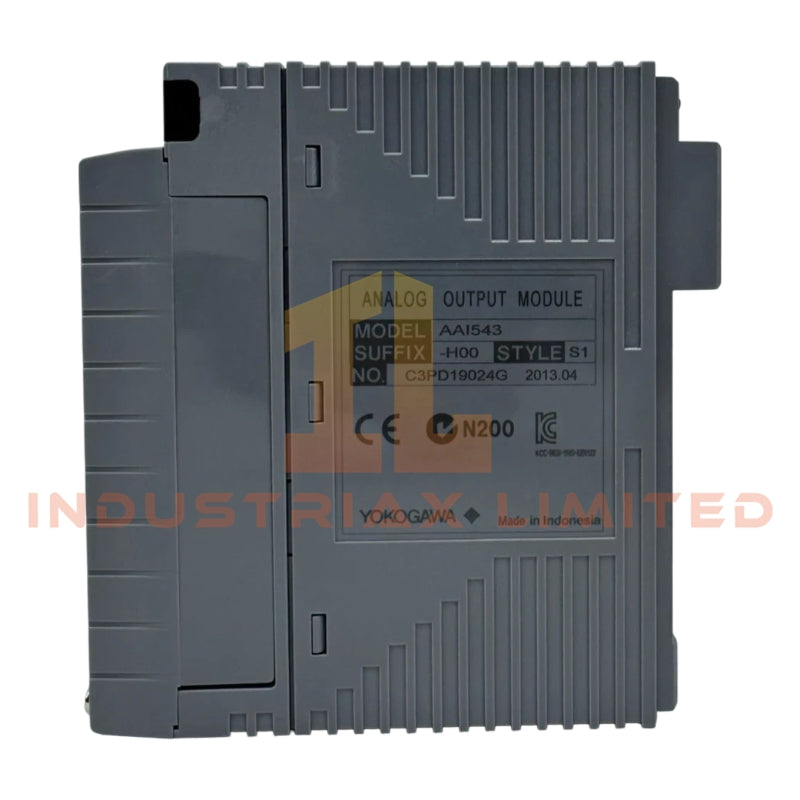

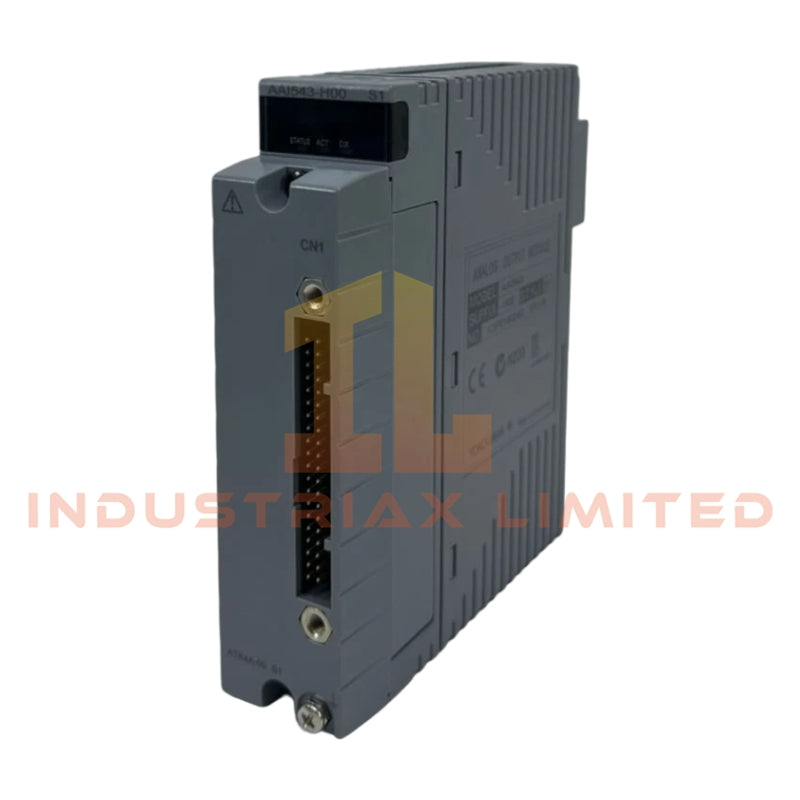

The Yokogawa AAI543-H00 is a precision analog output module engineered for demanding industrial control applications. It provides 16 isolated channels with 4 to 20 mA outputs, offering reliable signal transmission even in electrically noisy environments. Integrated digital communication through HART protocol enables advanced diagnostics and monitoring. Designed for systems requiring standard redundancy configurations, this module ensures robust performance with minimal maintenance.
Key Features
-
Output: 4 to 20 mA across 16 channels
-
Isolation: Fully isolated channels to prevent interference
-
Digital Communication: HART protocol enabled for remote monitoring
-
Switch-over Response: Standard configuration for redundancy setups
-
Mounting: Compatible with panel or DIN rail installations
-
Weight: 0.3 kg
Technical Specifications
| Specification |
Details |
| Module Type |
Analog Output Module |
| Model Number |
AAI543-H00 |
| Channels |
16 isolated outputs |
| Output Signal |
4 to 20 mA |
| Communication |
HART protocol support |
| Isolation |
Channel-to-channel isolation |
| Response Type |
Standard switch-over in redundant configuration |
| Mounting |
DIN rail or panel mount |
| Weight |
0.3 kg |
| Operating Temperature |
-20 to 70 Celsius (ISA G3 compliant) |
| Safety |
Versions available with explosion protection |
Applications
-
Continuous process control systems
-
Petrochemical and chemical plant monitoring
-
Refinery automation systems
-
Energy and power generation control
FAQ
Q: Does this module support digital communication?
A: Yes, the AAI543-H00 supports HART protocol for digital monitoring and configuration.
Q: Can it operate in redundant systems?
A: Yes, it features a standard switch-over response suitable for redundancy configurations.
Q: What is the operational weight and installation method?
A: The module weighs 0.3 kg and supports DIN rail or panel mounting.
Q: Is it suitable for hazardous environments?
A: Explosion-proof versions are available for use in hazardous zones.
