Description
Product Description
Overview

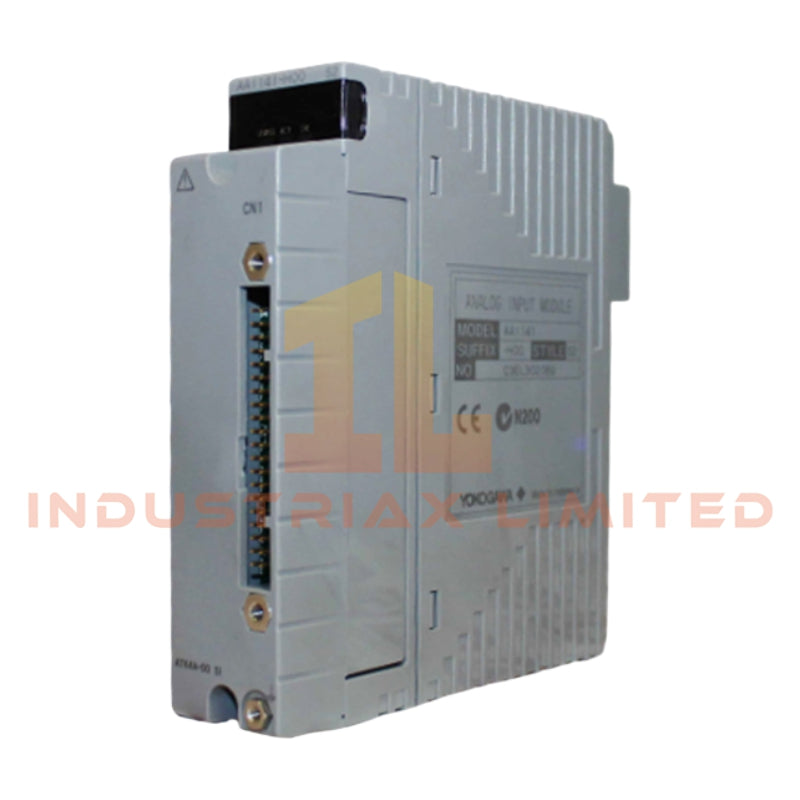

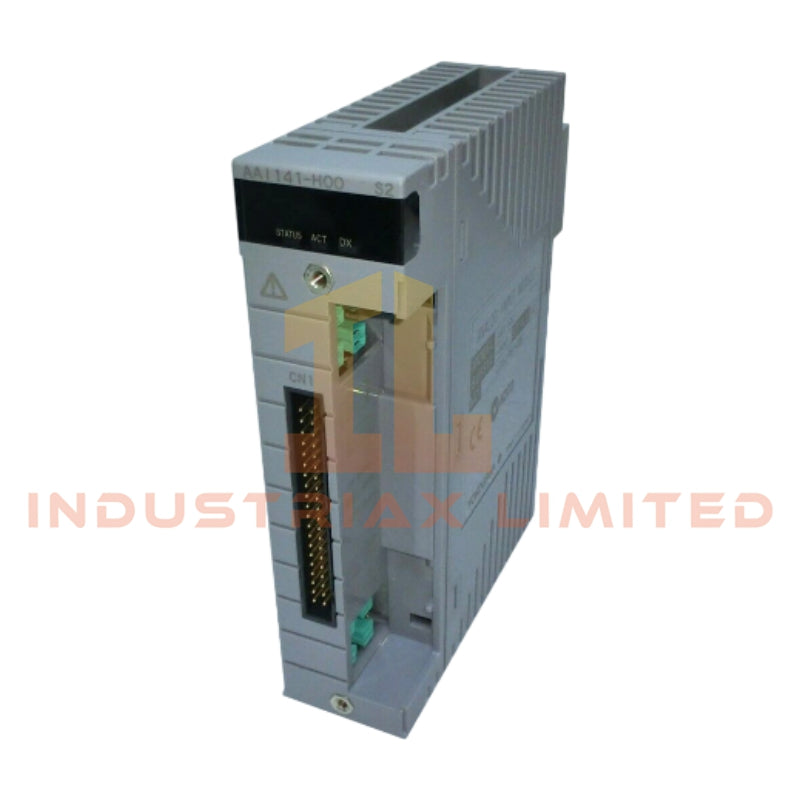

The AAI141-H00/K4A00 is a 16-channel non-isolated analog input module from Yokogawa, designed for distributed control systems (DCS). It supports 4-20 mA current inputs and includes HART communication capability, enabling digital interaction with smart field devices. The module features the ATK4A-00 KS Cable Interface Adapter for flexible connection to AEA4D terminal boards, improving integration in industrial automation systems.
Technical Specifications
| Parameter |
Description |
| Model Number |
AAI141-H00/K4A00 |
| Manufacturer |
Yokogawa |
| Product Type |
Analog Input Module |
| Number of Channels |
16 non-isolated channels |
| Input Signal Range |
4-20 mA (0-25 mA permissible) |
| Input Impedance (Power ON) |
250 ohms |
| Input Impedance (Power OFF) |
≥500 k ohms |
| Rated Accuracy |
±16 μA (for 1 to 23 mA input range) |
| Data Update Frequency |
40 ms |
| Temperature Drift |
±16 μA per 10 °C |
| Transmitter Power Supply |
Minimum 16.15 V at 20 mA, Maximum 26.4 V at 0 mA |
| Output Current Limit |
27 mA |
| Maximum Current Consumption |
310 mA (5 V system), 450 mA (24 V system) |
| Withstand Voltage |
1.5 kVAC for 1 minute |
| Interface Adapter |
ATK4A-00 KS Cable Interface Adapter (for AEA4D Terminal Board) |
Applications
-
DCS analog signal monitoring and control
-
Smart transmitter data acquisition using HART communication
-
Multi-channel process signal logging
-
Industrial automation systems integration
FAQ
Q: Does this module support HART communication?
A: Yes, it allows digital communication with smart field devices while reading 4-20 mA analog signals.
Q: Are the input channels isolated?
A: No, this model is non-isolated. Proper system design should account for potential ground loops.
Q: Can this module connect to AEA4D terminal boards?
A: Yes, the included ATK4A-00 KS Cable Interface Adapter provides direct connectivity.
Function Comparison
Compared to the Yokogawa AAI143 series, the AAI141-H00/K4A00 provides HART communication with non-isolated inputs. It is suitable for applications where isolation is not required but precise 16-channel signal acquisition and smart device interaction are needed.
