Description
Product Description
Overview

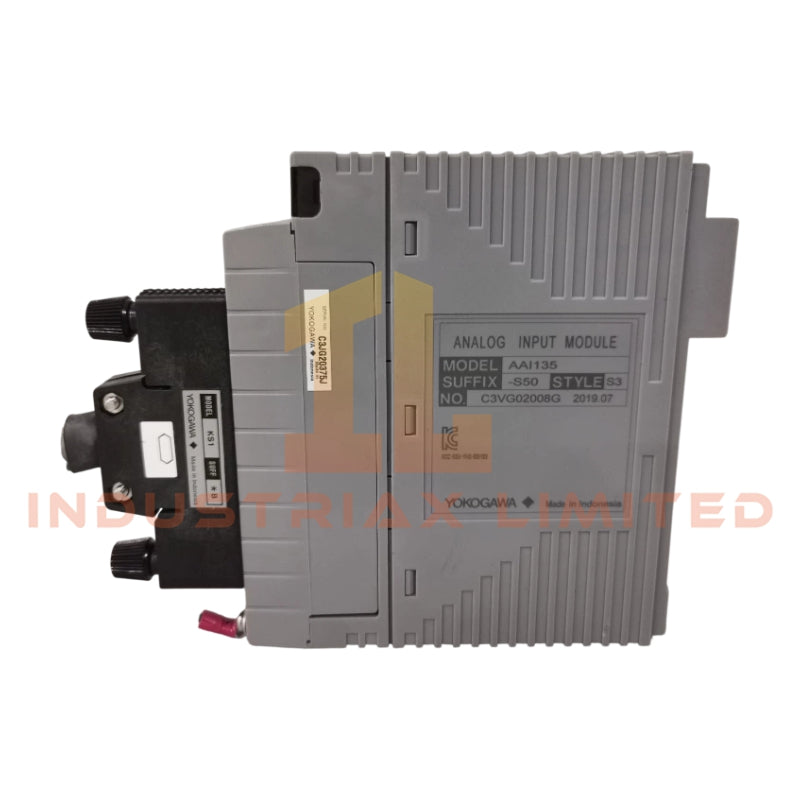

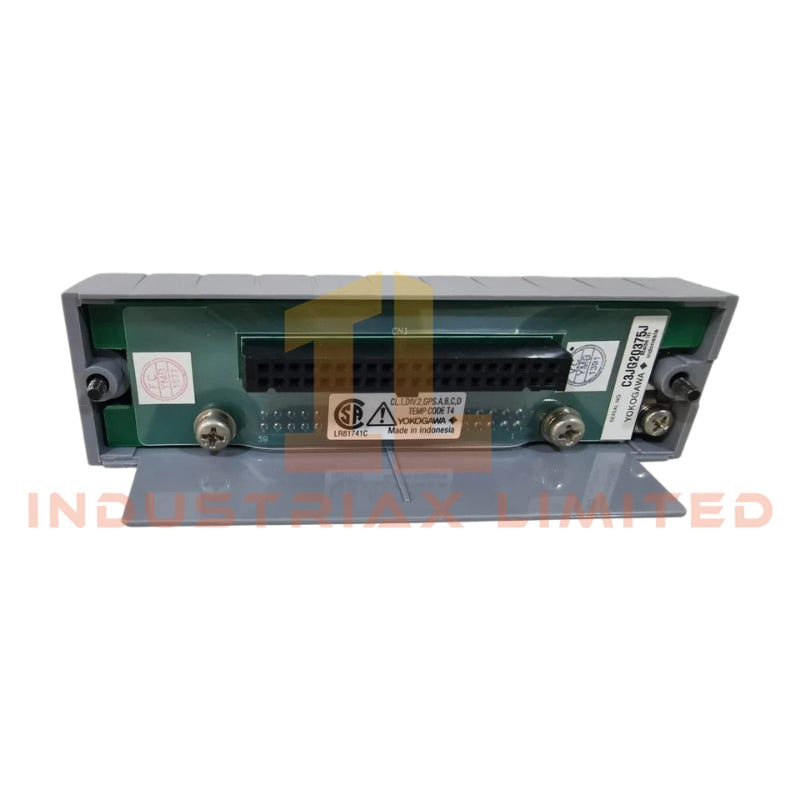

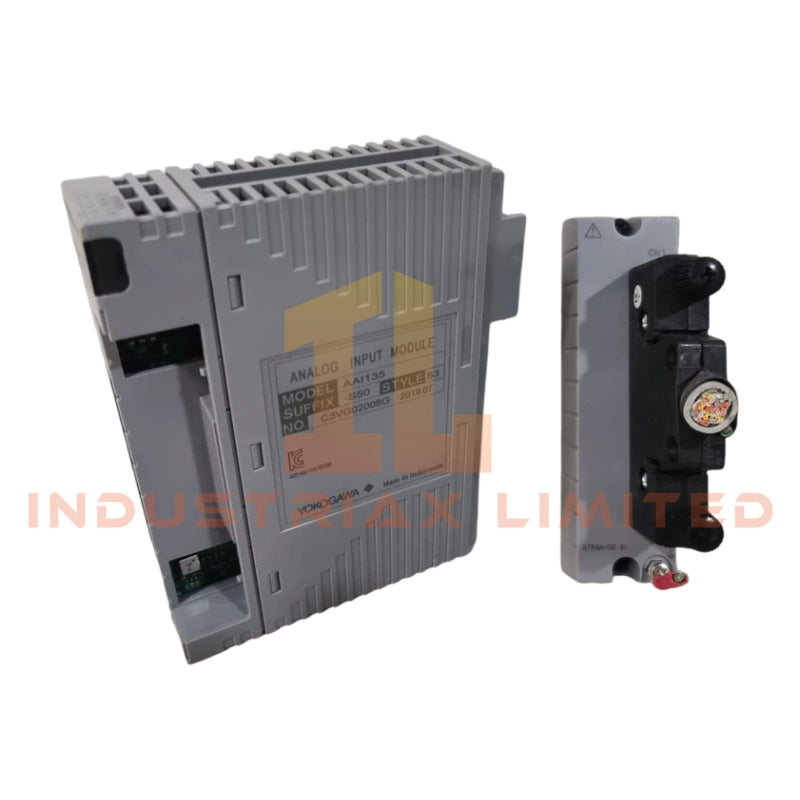

The Yokogawa AAI135-S50 is a high-precision 8-channel analog input module supporting 4 to 20 mA current signals. Each channel is independently isolated, ensuring accurate and reliable data acquisition. Compact and easy to install, it is compatible with pressure clamp terminals, MIL connector cables, and dedicated KS1 cables.
Technical Specifications
-
Model: AAI135-S50
-
Input Channels: 8-channel analog input
-
Signal Range: 4 to 20 mA
-
Channel Isolation: Fully isolated per channel
-
Maximum Current Consumption: 5 V DC: 360 mA, 24 V DC: 450 mA
-
External Connection: Pressure clamp terminal, MIL connector, or dedicated KS1 cable
-
Dimensions (L x W x H): 107 mm x 130 mm x 33 mm
-
Weight: 0.3 kg
-
Product Type: Standard type, non-explosion-proof, basic version
Applications
The Yokogawa AAI135-S50 is widely used in factory automation, process control, and instrumentation monitoring systems. It provides precise multi-channel signal acquisition, suitable for water treatment, power plants, chemical processing, and energy management applications.
FAQ
Q: What signal interfaces does the AAI135-S50 support?
A: The module supports 4-20 mA current input and is compatible with pressure clamp terminals, MIL connectors, and dedicated KS1 cables.
Q: Does this module offer explosion protection?
A: This is a standard basic model and does not have explosion-proof features.
Q: Are the channels independently isolated?
A: Yes, each channel is fully isolated to ensure signal accuracy and system stability.
